Description

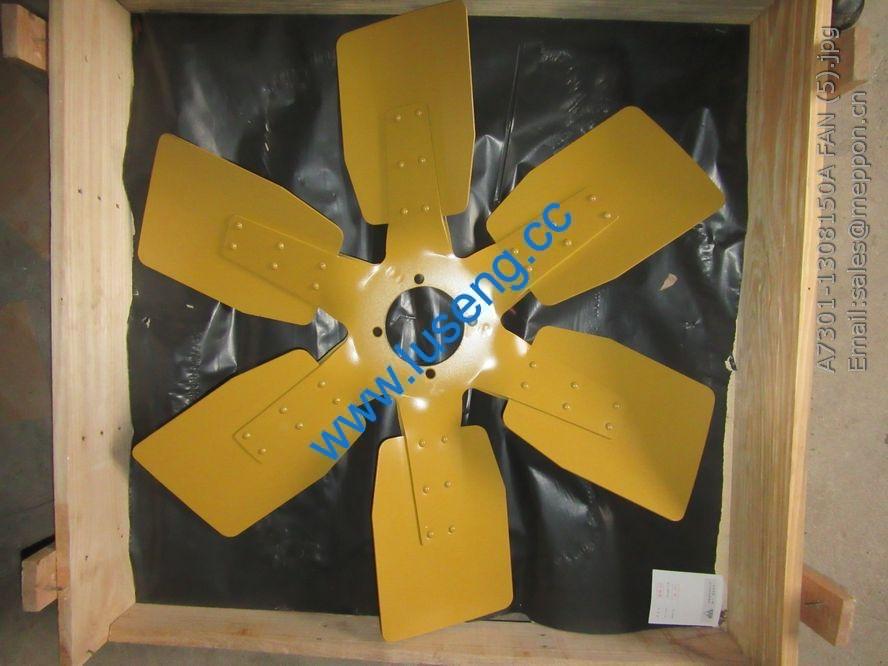

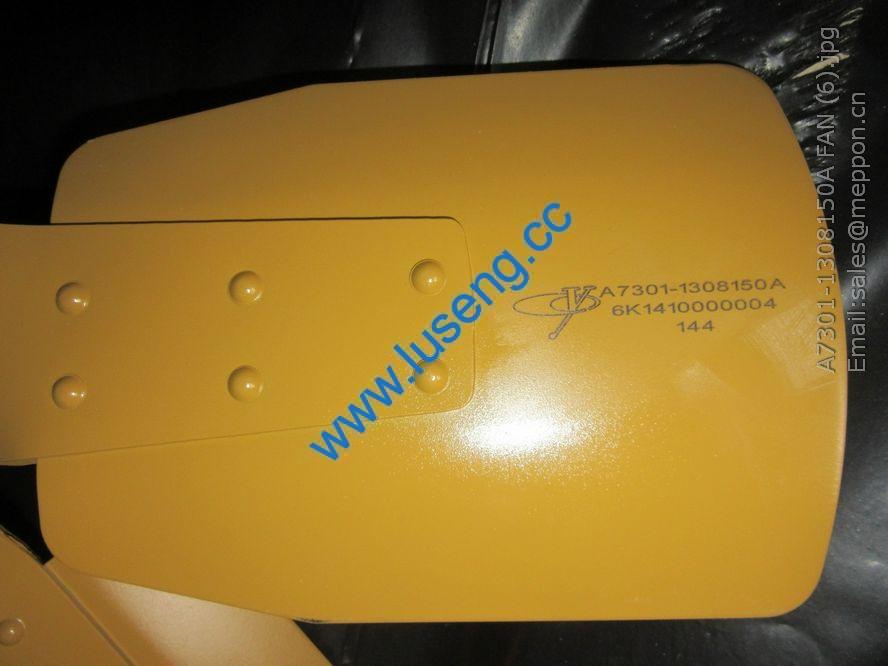

A7301-1308150A FAN yuchai spare parts

1 12189678 1 垫片 Gasket
2 12166808 1 堵盖 Plug
3 01177981 4 弹簧垫圈 Spring washer
4 01111198 2 六角头螺栓 Hexagon bolt
5 01112331 1 六角头螺栓 Hexagon bolt
6 01112829 1 2型六角螺母 Hexagon nut (II)
7 01113391 1 双头螺柱 Stud

1 12270457 1 油标尺 Dipstick
2 12190556 1 油尺管 Dipstick tube
3 13035586 1 油底壳密封垫 Seal washer of oil pan
4 13053874 1 油底壳分总成
5 01214459 33 垫片 Gasket
6 01112339 26 六角头螺栓 Hexagon bolt
7 01112331 3 六角头螺栓 Hexagon bolt
8 01137083 4 六角头螺栓 Hexagon bolt

1 13036094 1 油底壳组件 Oil pan assembly
2 13023363 2 组合垫圈 Unit washer
3 13032640 2 磁性螺塞总成 Magnetic screw plug assembly

1 13022334 1 曲轴正时齿轮 Timing gear of crankshaft
2 01115416 1 弹性圆柱销 Spring dowel pin
3 13031181 1 曲轴 Crankshaft
4 12151364 6 堵塞 Plug

1 13034906 1 止推主轴瓦组件 Thrust main bearing bush assembly
2 13034907 6 主轴瓦组件 Main Bearing Set

1 13034886 1 止推主轴承上瓦 Thrust Bearing Upper Shell
2 13034887 1 止推主轴承下瓦 Thrust Bearing Lower Shell

1 13034908 6 主轴承上瓦 Main bearing bushing (upper)
2 13034916 6 主轴承下瓦 Main bearing bushing(lower)

1 12273935 2 上止推片 Thrust washer (upper)
2 12273934 2 下止推片 Thrust washer (lower)

1 13028355 1 飞轮分总成
2 01110847 6 内六角圆柱头螺钉 Inner hexagon screw
3 01125638 1 弹性圆柱销 Spring dowel pin

1 614020009 1 飞轮齿圈 Flywheel ring gear
2 13022725 1 飞轮 Flywheel

1 01110673 6 内六角圆柱头螺钉 Inner hexagon screw
2 01178365 6 弹簧垫圈 Spring washer
3 13032456 1 曲轴皮带轮 Crankshaft belt pulley
4 12273121 1 减振器 Vibration damper
