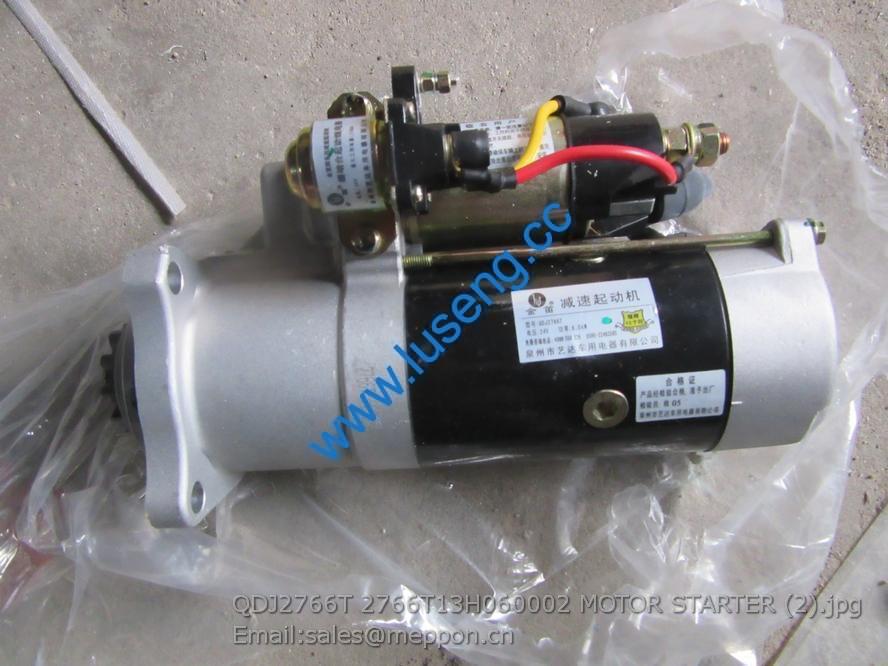

QDJ2766T 2766T13H060002 MOTOR STARTER

1 M3020-1001070A 前左支架 Front left
bracket
1
2 Q150B1425TF2 螺栓 M14X25 Bolt 12
3 M3015-1600412 垫圈 Washer 12
4 M3020-1001080 前右支架 Front
right
bracket
1
5 M3020-1001003 后支脚 Rear
bracket
2

8
2．．．． M30 M30 M30 M3011115555—-1002 1002 1002 1002000 000 000 000 气缸体总成 气缸体总成 气缸体总成 气缸体总成 Cylinder Block Assembly Cylinder Block Assembly Cylinder Block Assembly Cylinder Block Assembly
序号序号序号序号
Item Item Item Item
图图图图 号号号号
Parts No. 名 称
Part Name
数量数量数量数量
Qty. Qty. Qty. Qty.
备备备备 注注注注
Remark
1 M3000-1002106B 气缸套 Cylinder liner 6
2 M3000-1002107 气缸套封水圈 Cylinder liner O ring 6
3 M3000-1002108 气缸套封水圈（II） Cylinder liner O ring(II) 6
4 M3400-1002203D 齿轮室盖板 Gear housing cover plate 1
5 M36L1-1002202 齿轮室垫片 Gear housing washer 1
6 Q1841225TF2 螺栓 M12×25 Bolt M12×25 2
7 M3400-1002350E 大惰齿轮组件 Large idle gear parts 1
8 6105Q-1600011 扁销 Flat pin 1
9 Q/YC207-1090 螺栓 Bolt 6
10 M3400-1002311A 惰齿轮防磨板 Idler gear friction plate 1
11 YC24-B1230 圆柱销 12×30 Straight pin 1
12 Q61510 开槽柱形螺塞 M10×1 Screw plug 1
13 M3400-1002306A 惰齿轮轴 Idle gear shaft 1
14 Q/YC207-1225 螺栓 Bolt 5
15 M3001-1002141A 后吊耳 Rear engine eye 1
16 Q1841270TF2 螺栓 M12×70 Bolt M12×70 2
17 M3400-1002114D 气缸体 Cylinder block 1
M3400-1002114D* 气缸体组件 Cylinder block subassembly 1
18 M3015-3800201 机油感应器接头 Oil sensor coupling 1
19 M3400-1002123D 曲轴箱 Crankshaft housing 1
20 M3000-1002C00D 调压阀部件 Pressure adjusting valve part 1
21 M3000-1002124 密封圈 Seal ring 2
22 M3400-1002821B 回油胶管 Oil return rubber pipe 1
23 M3000-1002118A 主轴承螺栓 Main bearing bolts 14
24 Q218B0825 螺钉 M8×25 Screw M8×25 22
25 M3015-1002A01 加机油口垫片 Oil fill port gasket 1 9
26 Q150B1020 螺栓 M10X20 Bolt 3
27 M3015-1002A40 加机油口焊接件 Oil fill port weldment 1
28 M3015-1003040 加机油口盖组件 Oil fill port cover parts 1
29 Q40310 垫圈 10 Washer 10 3
30 Q40110 垫圈 10 Washer 10 3
31 M32J1-1014003A 通气软管 Venti-hose 1
32 Q67627 环箍 27 Loop hoop 27 2
33 M3013-1002870 呼吸器组件 Breather subassembly 1
34 Q1840880 螺栓 M8×80 Bolt 2
35 M3000-1002803 弯管接头 Corner joint 1
36 M3000-1002802 呼吸器垫片 Breather washer 1
37 M32J1-1002850 呼吸器支架焊接件 Breather bracket weldment 1
38 Q67638 环箍 38 Loop hoop 38 2
39 L3000-1008026 螺栓套 Bolt sleeve 2
40 M3013-1002840B 法兰连接管焊接件 Flange connecting pipe weldment part 1
41 6105Q-3509013 垫圈 Washer 4
42 Q1841225TF2 螺栓 M12×25 Bolt 3
43 M3001-1002150B 前吊耳焊接件 Front engine eye 1
44 Q1840825TF2 螺栓 M8×25 Bolt 2
45 Q1840816 螺栓 M8×16 Bolt 5
46 M3000-1002125 加机油孔盖板 Oil fill port cover board 1
47 Q/YC149-22 复合式密封垫圈 22 Compound seal ring 1
48 M3400-1002A01 加机油口垫片 Oil filler gasket 1
49 YC24-B0510 圆柱销 5×10 Straight pin 6
50 M3000-1002740 喷嘴组件 Nozzle assy 6
51 430-1002163 垫圈 Washer 6
52 M3000-1002701A 过油螺栓 Hollow bolt for oil 6
53 M3400-1002142A 吊耳垫块 Lifting eye cushion 1 54 M3000-1002002A 后吊耳座 Rear lifting eye seat 1
55 GB/T825-16 吊环螺钉 M16 Lifting ring screw 1
56 M3500-1003006A 气缸盖副螺栓 Cylinder head sub-bolt 2

1 M3400-1003205 气缸盖罩 Cylinder head cover 1
2 M3400-1003201 气缸盖罩垫片 Cylinder head cover gasket 1
3 M3000-1003109A 气门锁夹 Valve lock clam 4
4 M3000-1003116A 气门弹簧上座 Valve spring upper seat 2
5 M3000-1003117 气门内弹簧 Valve inner spring 2
6 M5000-1003003A 气缸盖主螺栓 Cylinder main bolt 4
7 M3000-1003012A 气缸盖副螺栓 Cylinder head sub-bolt 2
8 M3000-1003120 进气门弹簧 Intake valve spring 2
9 M3000-1003105A 气门杆油封 Valve rod oil seal 2
10 M3000-1003160 气门弹簧下座组件 Valve spring below seat
parts
2
11 M3000-1003104A 气门导管 Valve guide 2 易损件 EWP
12 M3000-1003101G 气缸盖 Cylinder head 1 易损件 EWP
M3000-1003101G* 气缸盖组件 Cylinder head parts 1
13 Q72230 塞片 30 Plug 30 4
14 M3000-1003001E 气缸盖垫片 Cylinder head gasket 1
15 M3000-1003102B 排气门座圈 Exhaust valve seat ring 1
16 M3000-1003103A 排气门 Exhaust valve 1
17 M3000-1003111B 进气门 Intake valve 1
18 M3000-1003112C 进气门座圈 Intake seat ring 1
19 Q72212 塞片 12 Plug 1
20 Q72222 塞片 22 Plug 1
21 YC208-C02360S O 形密封圈
3.55X23.6 x 1
O-ring seal ring 1
22 M3000-1003119A 喷油器铜套 Injector copper sleeve 1
23 6105QA-1003001 螺套 Screw sleeve 1
24 Q1840860 螺栓 M8X60 Bolt 2
