Description

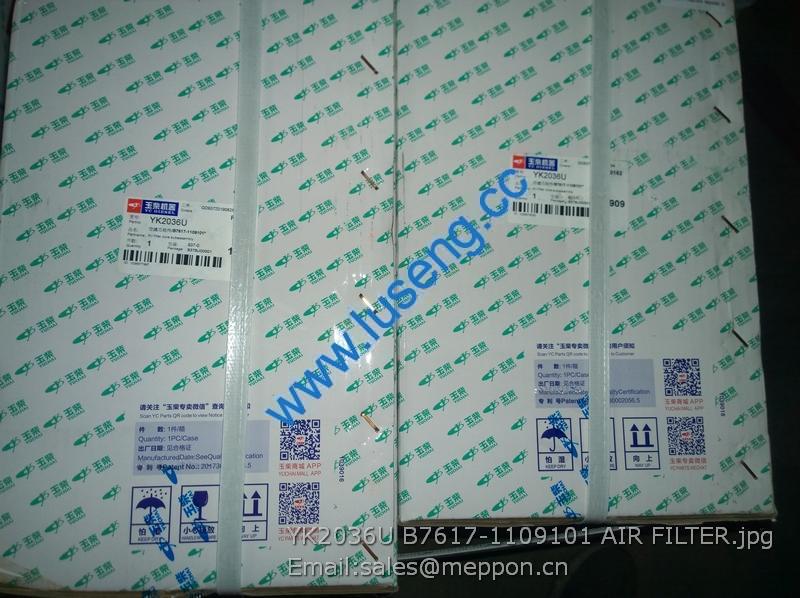

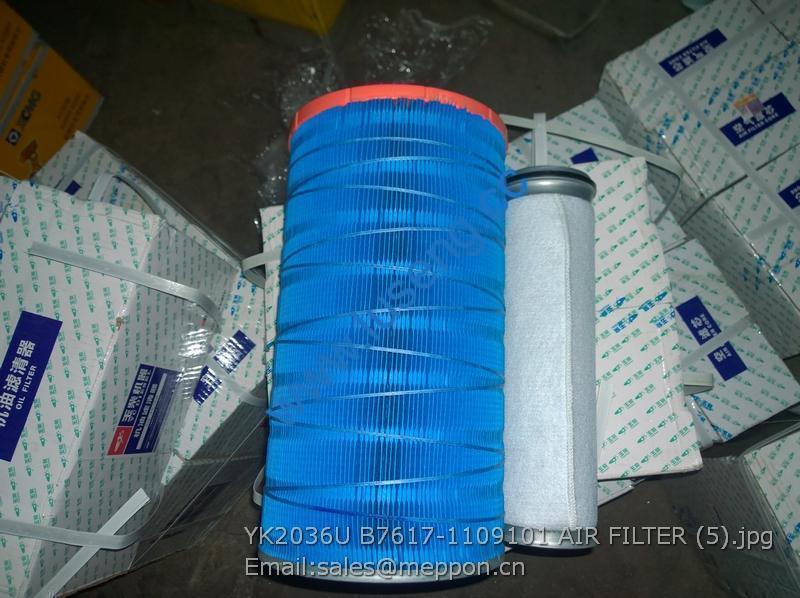

YK2036U B7617-1109101 AIR FILTER YUCHAI 4110000566001 4110000562065 SP106218

Hub reductor assembly (LH) 1004.31.013 1 12 Oil cup M10×1 GB/T 1152-89 2
Hub reductor assembly (RH) 1004.31.012 1 13 Circlip for shaft30 5140018/20 2
1 Oil seal, drive fork shaft
42×62×17
8A5133799/1.41.539 1 14
Sun gear
5137107/20 1
2 Limit Bolt M12×1.25×42 5126628-FT/1.40.211 1 15 Baffle ring, ring gear 4997571/1.41.549 1
3 Spacer 5148495-FT/12 1 16 Support, ring gear 5142047/20 1
4 Steering knuckle unit (LH) 1004.31.028 1 17 Ring gear 5108749/1.41.543 1
4.1 Steering knuckle (LH) 5142002-FT/12 1 18 Nut, support, ring gear 5142020/12 1
4.2 Bushing, steering knuckle 5104199/1.40.228 1 19 Planet carrier unit 5137724/20 1
5 Steering knuckle unit (RH) 1004.31.026 1 19.1 Planet carrier 5137689/20 1
5.1 Steering knuckle (RH) 5142001-FT/12 1 19.2 Shaft, planetary gear 4997509/1.41.547 3
4.2 Bushing, steering knuckle 5104199/1.40.228 1 19.3 Bearing retainer, planet gear 4997510/1.41.552 6
6 Hub oil seal 165×190×17 8A5137109/12 1 19.4 Needle bearing 5101693/1.41.546 3
7 Bearing, wheel hub (FR) 5136951/12 2 19.5 Planetary gear 5108747/1.41.545 3
8 Hub unit with dowel pin 5142014/13 1 20 Composite seal washer22 JB 982-77 1
8.1 Hub, traction wheel (FR) 8A5142013/13 1 21 Plug M22×1.5 10305114/14530 1
8.2 Dowel pin 12×20 4985063/1.21.067 2 22 Bolt M10×1.25×30 14233634/10357/04 12
9 Adjusting shim 0.15mm 5137457/12 As required
Adjusting shim 0.20mm 5137458/12 As required
Adjusting shim 0.30mm 5137460/12 As required
10 Kingpin, steering knuckle 5137239/12 2
11 Bolt M12×1.25×30 14274534/10357/04 6

Tie rod assembly 02011601A007 1
1.1 Locking nut M18×1.5 12576014/10125 2
1.2 Ball joint assembly 02012501A007 1
1.3 Thin lock nut M24×1.5 10726914/10114 1
1.4 Tie rod unit 02011601A01 1

Steering cylinder assembly 20117030033 1 16 Steering oil pipe assembly (LH), cylinder (LH) 20121020047 1
1 Retainer ring 20 11066870/12245 2 17 Hose D=8×470, cylinder 5145419A/22 2
2
Washer, pin, cylinder
5100730/1.63.589 4 18 Steering oil pipe assembly (LH), cylinder (RH) 5139048A/22 1
3 Pin, cylinder 4987671/1.63.584 2 19 Steering oil pipe assembly (RH), cylinder (RH) 20121020045 1
4 Oil cup M10×1 GB/T 1152-89 4 20 Bolt M6×16 GB/T 5783-1986 1
5 Plastic cable tie 31114010088 2 21 Spring washer 6 GB/T 7244-1987 1
6 1004 cylinder jacket 31701000028 2 22 Oil pipe clamp 4999554/1.63.583 1
7 Hoop (Φ50~Φ70) JK-3X 4 23 Support plate 5138294/1.63.22 1
8 Steering cylinder 5142046/22 2
9 Composite seal washer14 JB 982-77 8
10 Hollow bolt M14 10184314/14256 4
11 Pin assembly, cylinder 5142048/22 2
12 Washer 8 GB/T 7244-87 2
13 Bolt M8×16 GB/T 5783-86 2
14 Spacer, pin, cylinder 5142223/22 2
15 Steering oil pipe assembly
(RH), cylinder (LH)
20121020046 1
