Description

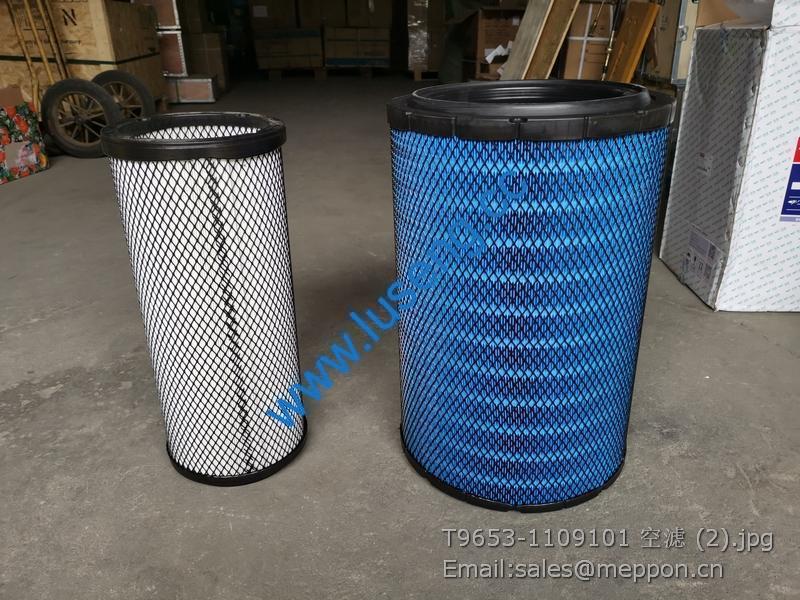

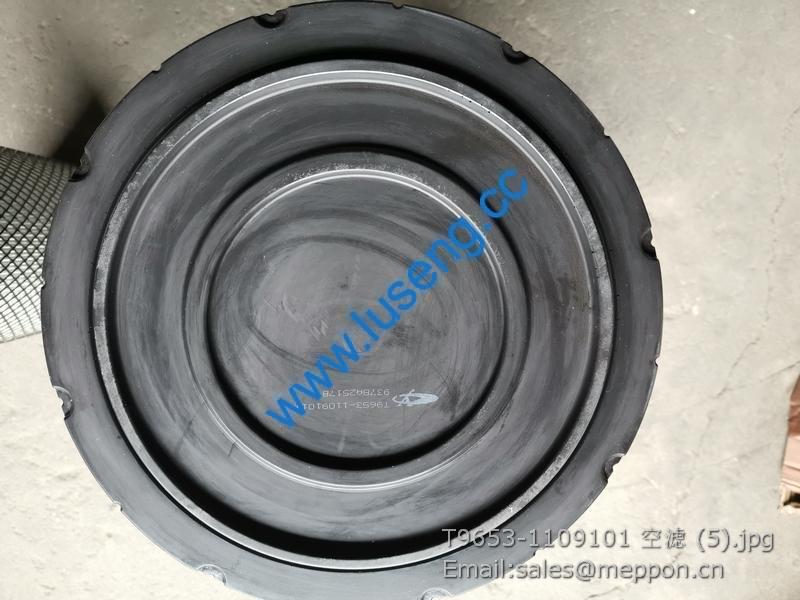

T9653-1109101 AIR FILTER YUCHAI
29070012681 行星轮垫片 WASHER
29070012701 挡环 BAFFLE RING
29070012711 行星齿轮 PLANETARY GEAR
4090000158 滚针GB309-P6*54-GCr15 ROLLER PIN GB309-P6*54-GCr15
29070000081 轮辋螺母 RIM NUT
29070000621 轮辋螺栓 RIM BOLT
29090008481 半轴 DIFFERENTIAL AXLE
4013000203 螺母GB6171-M20*1.5EpZn-10 NUT GB6171-M20*1.5EpZn-10
4015000030 垫圈GB93-20-65Mn WASHER GB93-20-65Mn
29070001241 轮毂 HUB WHEAL
29090008771 行星轮架 PLANET CARRIER
4090000008 钢球GB308-9.525-GCr15 STEEL BALL GB308-9.525-GCR15
29070012691 行星齿轮轴 SHATE
29070012481 磁性螺塞 PLUG
4090000006 钢球GB308-17.462-GCr15 STEEL BALL GB308-17.462-GCr15
29070009161 定位块 LOCK BLOCK
29070012671 太阳轮 GEAR-SUN
4015000022 挡圈GB894.1-52-65Mn RETAINER RING GB894.1-52-65Mn
29070007621 盖 COVER
4015000025 垫圈GB93-10-65Mn WASHER GB93-10-65Mn
4011000084 螺栓GB5783-M10*30EpZn-8.8 BOLT GB5783-M10*30EpZn-8.8
4014000016 螺钉GB70-M10*1*20EpZn-8.8 SCREW GB70-M10*1*20EpZn-8.8
29070015581 圆螺母 plate
29090009561 内齿圈 GEAR RING
4041000020 O形圈LGB308-440*3.5 O-RING LGB308-440*3.5
4021000037 滚动轴承GB297-32221 BEARING GB297-32221
4021000033 滚动轴承GB297-32024 BEARING GB297-32024
29070001261 隔套 ISOLATED BUSHING
4030000047 骨架油封HG4-692-PD150*180*16 OIL SEAL HG4-692-PD150*180*16
29070001271 垫片 SPACER
29070001231 油封端盖 COVER OF OIL SAL
4015000036 垫圈GB93-8-65Mn WASHER GB93-8-65Mn
4011000298 螺栓GB5782-M8*45EpZn-8.8 BOLT GB5782-M8*45EpZn-8.8
4110000006001 轮胎垫皮 TIRE SKIN
4110000006002 轮胎GB2980-23.5-25内胎 TIRE GB2980-23.5-25 INNER TUBE
4110000006003 轮胎GB2980-23.5-25外胎 TIRE GB2980-23.5-25 OUTER TUBE
2050900027002 突缘叉42118.12 LUG FORK 42118.12
2050900027001 十字轴总成W42118P CROSS AXLE ASSEMBLY W42118P
4015000204 挡圈GB893.1-42-65Mn RING SNAP GB893.1-42-65Mn
2050900009015 焊接叉ZL30F.5.8-11 WELDING FORK ZL30F.5.8-11
29080001020151 滑动叉2908000102-13 FORK 2908000102-13
4030000065 油杯JB7940.1-M10*1 GREASE NIPPLE JB7940.1-M10*1
29080001020161 密封挡圈2908000102-21 SEALING RETAINER 2908000102-21
29080001020171 密封圈2908000102-22 SEALING RING 2908000102-22
29080001020181 密封盖2908000102-23 COVER 2908000102-23
29080001020191 防尘套管2908000102-20 PIPE 2908000102-20
29080001020201 花键轴2908000102-15 SPLINE SHAFT 2908000102-15
29080001020211 焊接叉2908000102-11 WELDING FORK 2908000102-11
2050900027002 突缘叉42118.12 LUG FORK 42118.12
2050900027001 十字轴总成W42118P CROSS AXLE ASSEMBLY W42118P
4015000204 挡圈GB893.1-42-65Mn RING SNAP GB893.1-42-65Mn
2050900027004 焊接叉42118.11 WELDING FORK 42118.11
29080001060141 花键轴2908000106-15 SPLINE SHAFT 2908000106-15
29080001060151 防护套筒2908000106-20 SLEEVE 2908000106-20
29080001060161 密封挡圈2908000106-21 SEALING RETAINER 2908000106-21
29080001060171 密封圈2908000106-22 SEALING RING 2908000106-22
29080001060181 密封盖2908000106-23 COVER 2908000106-23
29080001060191 花键套2908000106-17 SPLINE HUBE 2908000106-17
4030000065 油杯JB7940.1-M10*1 GREASE NIPPLE JB7940.1-M10*1
29080001060201 轴管2908000106-18 SHAFT TUBE 2908000106-18
29080001060211 平衡片2908000106-19 BALANCE CHIP 2908000106-19
