Description

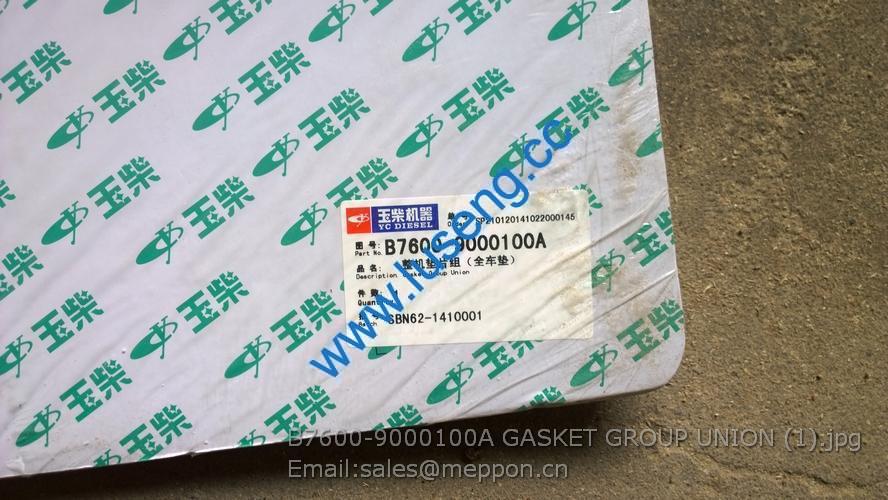

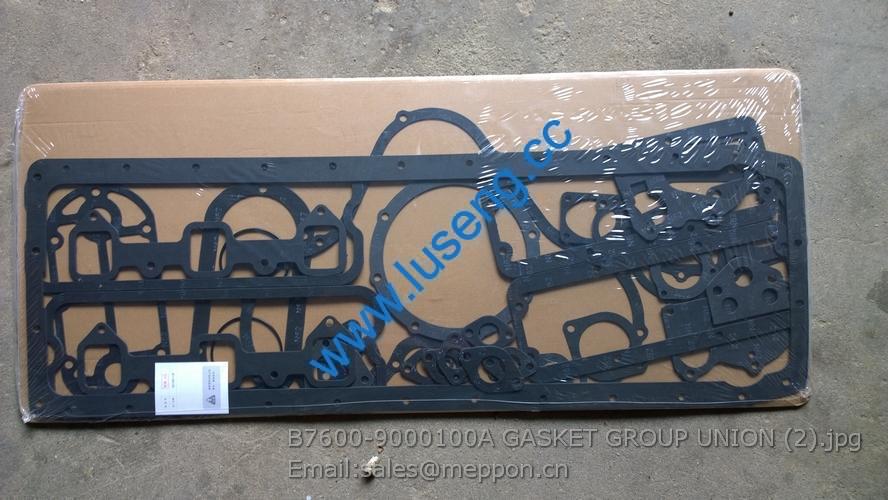

B7600-9000100A GASKET GROUP UNION yuchai

1 01110847 4 内六角圆柱头螺钉 Inner hexagon screw
2 12160534 1 垫片 Gasket
3 12190647 1 轮毂 Hub

1 13057365 6 活塞连杆结合组 Piston and Connecting Rod Group
2 13025625 6 连杆瓦组件 Connecting Rod Bearing Set

1 13057366 6 活塞总成 Piston assembly
2 12160519 6 连杆组件 Connecting rod assembly

1 13026703 6 梯形桶面环 Taper-sided ring
2 13022349 6 锥面环 Conical ring
3 13026702 6 梯桶钢油环 Oil ring
4 13038398 6 活塞 Piston
5 12151395 12 弹性挡圈 Circlip
6 12152378 6 活塞销 Piston pin

1 13055259 6 连杆体 Connecting rod body
2 12159598 6 连杆衬套 Connecting rod bushing
3 01154162 6 弹性圆柱销 Spring dowel pin
4 13053282 6 连杆盖 Connecting rod cover
5 12167047 12 连杆螺栓 Connecting rod bolt

1 13024279 6 连杆上瓦 Connecting Rod Upper Shell
2 12273939 6 连杆下瓦 Connecting Rod Lower Shell

1 01112445 12 六角头螺栓 Hexagon bolt
2 13037828 6 摇臂座组件 Rocker arm stand assembly
3 13027126 6 气缸盖分总成 Cylinder head subassembly
4 13026701 6 气缸垫片 Cylinder gasket

1 12164698 24 气门锁夹 Valve collet
2 12164645 12 气门弹簧座 Valve spring seat
3 01222009 12 气门弹簧 Valve spring
4 01222051 12 气门弹簧 Valve spring
5 13024293 12 气门弹簧下座 Valve spring seat(lower)
6 01104736 6 内六角锥形螺塞 Inner hexagon srew plug
7 13023391 12 气门阀杆密封套 Seal washer of valve stem
8 612600111428 12 双头螺柱 Stud
9 01152502 12 双头螺柱 Stud
10 12163182 12 垫片 Gasket
11 13020378 24 2型六角螺母 Hexagon nut (II)
12 12167216 12 垫片 Gasket
13 01152538 12 双头螺柱 Stud
14 12159608 6 排气门 Exhaust valve
15 12159606 6 进气门 Intake valve
16 13028588 6 气缸盖组件 Cylinder head assembly
17 13032738 6 管接头组件 Adapter assembly
18 12151665 12 卡箍 Clamp
