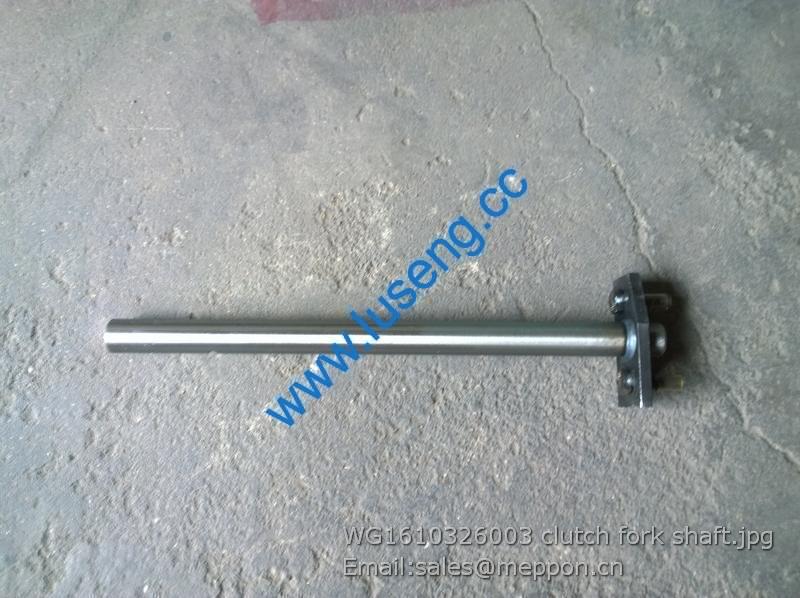

WG1610326003 clutch fork shaft SINOTRUCK HOWO

1 Seal (FR), hood SZ804.47.121 1 13 Air spring SZ950.47.099 2
2 Bolt M8×25-Zn.D GB5783-86 1 14 Nut M10-Zn.D GB6170-86 4
3 Washer 8-Zn.D GB/T93-1987 4 15 Washer 10-Zn.D GB/T93-1987 10
4 Lock pin assmbly SZ700.47.081-1 1 16 Holder unit, air spring SZ700.47.068-1 1
5 Lock assembly, hood SZ804.47.095 1 17 Bolt M10×30-Zn.D GB5783-86 4
6 Washer 8-Zn.D GB97.1-85 4 18 Washer 10-Zn.D GB96-85 4
7 Nut M8-Zn.D GB6170-86 2 19
Bracket weldment (LWR),
hood
X804.47.012A-1 1
8 Grille unit (LWR) 700.47.015 1 20
Support plate, radiator &
battery
SZ804.48.030-3 1
9 Nut M5-Zn.D GB6177-86 2 21 Emblem (LH) X704.98.401 1
10 Tapping screw ST4.8×16-H GB845-85 8 Emblem (RH) X704.98.402 1
11 Grille unit (UPR) 700.47.016 1 22 Front logo SZ804.98.310 1

1 Side panel unit (RH) LX700.47B.014 1
2 Screw M6*16-4.8-Zn.D GB/T818 1
3 Washer 6-Zn.D GB/T93 33
4 Washer 6-140HV-Zn.D GB/T97.1 33
5 Nut M M6-8-Zn.D GB/T6170 33
6 Cover plate weldment (UPR), hood 700.47.011 1
7 Welded side panel unit (LH) LX700.47B.013 1
8 Grille weldment SZ904.47.012A 1

1 Seal, window, clutch pedal 5136052/1.83.0 1
2 Outlet seal, brake line 499923/1.83.018 2
3 Inlet seal, brake line 5101351/1.83.027 1
4 Covered nut 5A 14647993/12794 2
5 Instrument mask weldment SZ904.47.031 1
6 Tapping screwST4.8X65 GB/T845-1985 2
7 Tapping screwST4.8X32 GB/T845-1985 4
8 Waterproof plug SZ804.47.601 4
9 Instrument mask 700.47.303-1 1
10 Spring nutST4.8X20A ZBT31004-87 8
11 Switchboard unit 700.47.033E 1
12 Tapping screwST4.8X19 GB/T845-1985 4
13 Window seal, pedal, brake 5136051/1.83.0 1
14 Screw M5X16 GB/T818-2000 4
15
Cover, rubber cover, steering
wheel
5129954/1.84.2 1
16 Rubber cover, steering wheel 5129953/1.84.2 1
17 Tapping screw ST3.5*13-zn.D-Fe/Zn12A 4
18
Machine nameplate (in
English)
SZ700.00.304-2 1

1 Bolt M12×1.25×30 GB/T5786-2000 4 23 Bolt M16×1.5×150 SZ804.47.716 4
2 Washer 12-Zn.D GB/T97.1-2002 4 24 Washer (LWR) 4997422/1.87.039 8
3 Washer 12-Zn.D GB/T93-1987 4 25 Floor and mud guard set assembly 804.47C.002 1
4 Nut M12×1.25-Zn.D GB/T6171-2000 4 27 Vehicle step SZ900.47A.071 2
5 Bracket unit (RH) 885147444/1.87.0 1 28 Attachment cover, mud guard (LH) 700.47.211 1
6 Bolt M14×1.5×35 GB/T5786-2000 8 29 Splash shield (LH) 700.47.207 1
7 Washer 14-Zn.D GB/T93-1987 8 30 Splash shield (RH) 700.47.208 1
8 Bracket unit (LH) 8A5145508SZ/1.87.0 1 31 Attachment cover, mud guard (RH) 700.47.212 1
9 Washer 16-Zn.D GB/T93-1987 6 32 Washer, elastic suspension (FR) 8A1208706/1.87.0 2
10 Bolt M16×1.5×160 SZ804.47.717 2 33 Washer, elastic suspension (FR) 885130819/1.87.0 4
11 Inner spacer, suspension (FR) 5132014/1.87.0 2 34 Bolt M8×30-Zn.D GB5783-2000 12
12
Washer (UPR), front
suspension
5132013/1.87.0 2 35 Washer 8-Zn.D GB/T7244-1987 12
13
Mounting plate, front
suspension
5130167/1.87.0 1 36 Washer 8-Zn.D GB/T96.1-2002 12
14
Elastic support, front
suspension, floor
5132016/1.87.0 2 37 Nut M8-Zn.D GB/T6170-2000 8
15
Washer (LWR), front
suspension
5132012/1.87.0 2 38 Coating (LH) 700.47A.511 1
16 Nut M10×1.25-Zn.D GB/T6171-2000 4 39 Coating (RH) 700.47A.510 1
17 Washer 10-Zn.D GB/T93-1987 4 40 Washer 8-Zn.D GB/T7244-1987 2
18 Bolt M10×1.25×40 GB/T5785-2000 4 41 Washer 8-Zn.D GB/T97.1-2000 2
19 Nut M16×1.5-Zn.D GB/T6171-2000 4 42 Bolt M8×25-Zn.D GB/T5783-2000 2
20 Cover (UPR), buffer washer 4997421/1.87.043 4 43 Bracket, tool kit SZ804.49.606 1
21 Buffer washer 4997423/1.87.038 8 Backing plate, bracket SZ804.49.607 1
22 Inner spacer, rear suspension 5132015/1.87.0 4 44 Tool kit assembly SZ804.49.066 1
