Description

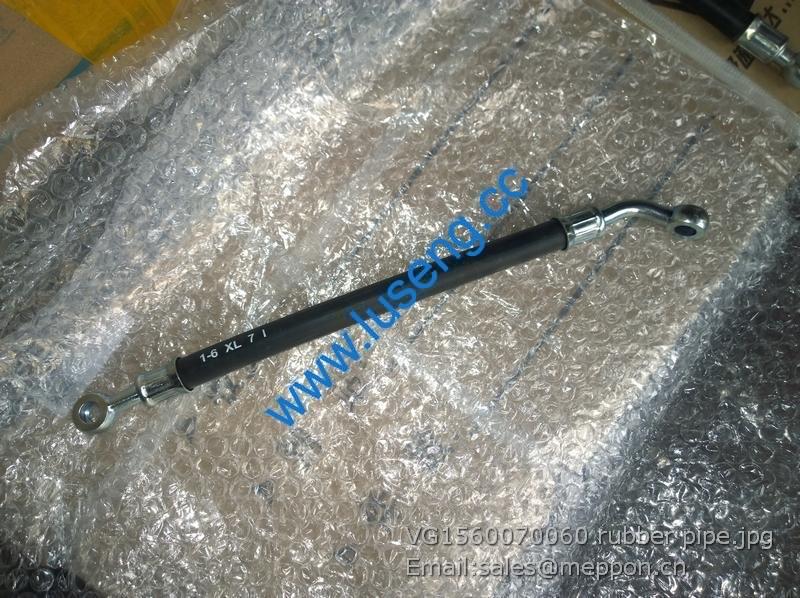

VG1560070060 rubber pipe SINOTRUCK
Bearing (FR), shaft, bevel pinion
45×100×20.75
5130990/1.32.138B 1
29 Bolt M12×1.25×30 14274534/10357/04 12
30 Screw M10×1.25×16 14359920/10356 1
28 Adjusting shim 1.90 mm, bevel gear 5111859/1.28.139 1 31 Thrust ring, driving shaft, splitter SZ904.37.111 1
Adjusting shim 1.95 mm, bevel gear 5111860/1.28.139 34 Reverse shaft unit SZ804.37.052 1
Adjusting shim 2.00 mm, bevel gear 5111861/1.28.139
Adjusting shim 2.05 mm, bevel gear 5111862/1.28.139
Adjusting shim 2.10 mm, bevel gear 5111863/1.28.139
Adjusting shim 2.15 mm, bevel gear 5111864/1.28.139
Adjusting shim 2.20 mm, bevel gear 5111865/1.28.139
Adjusting shim 2.25 mm, bevel gear 5111866/1.28.139
Adjusting shim 2.30 mm, bevel gear 5111867/1.28.139
Adjusting shim 2.35 mm, bevel gear 5111868/1.28.139
Adjusting shim 2.40 mm, bevel gear 5111869/1.28.139
Adjusting shim 2.45 mm, bevel gear 5111870/1.28.139
Adjusting shim 2.50 mm, bevel gear 5111871/1.28.139
Adjusting shim 1.85 mm, bevel gear 5125098/1.28.139
Adjusting shim 2.55 mm, bevel gear 5125099/1.28.139
Adjusting shim 2.60 mm, bevel gear 5125100/1.28.139
Adjusting shim 2.65 mm, bevel gear 5125101/1.28.139
Adjusting shim 2.70 mm, bevel gear 5125102/1.28.139
1 Locking screw, gear shift fork 15.37.175 2 15 Spacer ring, spring 5132334/1.32.293 1
2 Mild steel wire TA1.2×180 GB/T343-1994 2 16 Spiral spring pin 5×30 13907670/12215 1
3 Drive link, control SZ804.37.603 1 17 Shifting block, control SZ804.37.604 1
4 Support unit, control lever 5127968/1.32.217 18 Shift head 8A5129522/1.29.004 2
4.1 Support, control lever 5127967/1.32.217 1 19 Spiral spring pin 5×32 13907770/12215 4
4.2 Stop pin 5125535/1.21.067 2 20 Spring 884994342/1.29.031 2
5 Seal, main control lever 884984223/1.29.195 1 21 Steel ball 11/32in GB/T308-84 2
6 Retainer ring 40 11059976/12245 1 22 Slider, N-R 5127897/1.32.211 1
7 Sleeve, main shift lever 5129575/1.29.119A 1 23 Interlock pin 5110264/1.29.041 1
8 Bolt M8×22-Zn GB/T5783-2000 3 24 Fork, N-R 5125822/1.32.216 1
9 Auxiliary shift lever SZ804.37.112B 1 25 Fork, Hi-Lo 5125823/1.32.215 1
SZ804.37.112C(in English) 1 26 Slotted plug M12×1.25 10152314/14548 1
10 Nut M10-Zn.D GB/T6175-86 1 27 Slider, Hi-Lo 5127898/1.32.212 1
11 Auxiliary shift lever unit SZ804.37.051 1 28 Bolt M8×16-Zn.D GB/T5783-2000 1
12 Joystick (LWR), splitter SZ804.37.302 1 29 Washer 8-Zn.D GB/T93-1987 1
13
Shifting block, transfer, external
control
SZ804.37.606 1 30 Plain washer 8 SZ804.37.513 1
14 Return spring, control lever 5127962/1.29.106 1
