Description

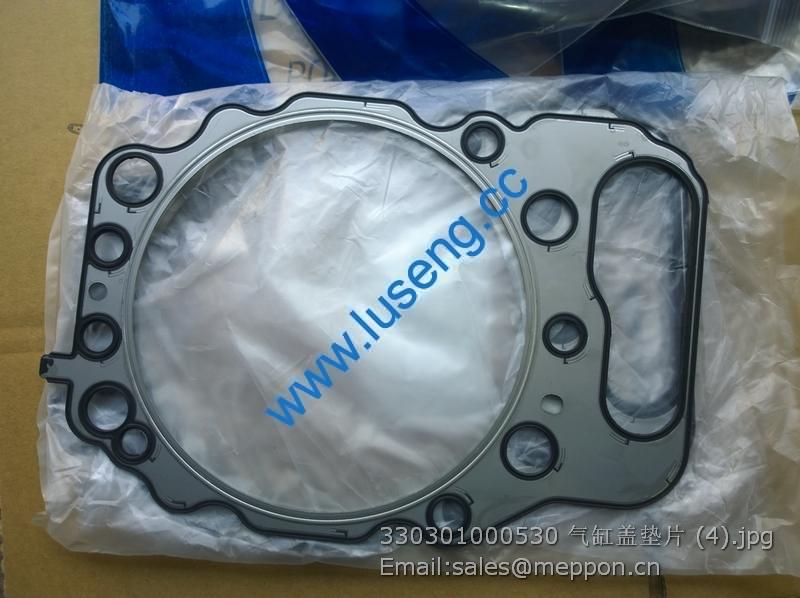

330301000530 BAUDOUIN HEAD GASKET
1 4120001968001 挡圈GB893.1-86-80 Retaining ring Y 1
2 4120001968003 滚动轴承GB/T 276-94 Roller bearing Y 1
3 4120001968002 垫圈JHM3-05 Washer Y 1
4 4120001968004 旋转轴唇形密封GB9877.1-88 Sealing ring Y 1
5 4120001968005 前盖JHP3-02 Cover Y 1
6 4120001968006 轴承RNA385938 Bearing Y 4
7 4120001968007 矩形密封圈JHP3-09 Sealing ring Y 1
8 4120001968020 垫片1 JHP3-06(1) Washer Y 2
9 4120001968009 耳形挡片JHP3-08 Retaining ring Y 2
10 4120001968010 耳形密封JHP3-07 Sealing washer Y 2
11 4120001968022 侧板1 JHP3-05(1) Side board Y 1
12 4120001968013 从动齿轮轴JHP3-04 Shaft Y 1
13 4120001968012 主动齿轮轴JHP3-01 Axle jhp3-01 Y 1
14 4120001968021 侧板2 JHP3-05(2) Side board Y 1
15 4120001968019 垫片2 JHP3-06(2) Washer Y 2
16 4120001968016 后盖体JHP3-03 Cover Y 1
17 4120001968023 螺栓JHP3-10 Screw Y 4
18 4120001715020 密封件包 Sealing ring kit Y 1
1 4120001715001 挡圈41060100400 Retaining ring Y 1
2 4120001715002 旋转轴唇形密封圈 43020200200 Sealing ring Y 2
3 4120001715003 挡圈41060100300 Retaining ring Y 1
4 4120001715004 前盖21050200110 Cover Y 1
5 4120005081002 环形密封圈44020100700 Sealing ring Y 2
6 4120001715006 滚针轴承 42010100200 Needle bearing Y 4
7 4120001715007 定位套21050900110 Spacer sleeve Y 4
8 4120001715008 耳形挡片21050800110 Retaining ring Y 2
9 4120001715009 耳形密封垫21050700110 Sealing washer Y 2
10 4120001715010 侧板21050600110 Side board Y 2
11 4120001715011 主动齿轮轴21050117010 Drive shaft Y 1
12 4120001715012 从动齿轮轴21050417010 Shaft Y 1
13 4120001715013 泵体21050317010 Pump body Y 1
14 4120001715014 后盖21050500110 Cover Y 1
15 4120001715015 螺钉44010103080 Screw Y 4
16 4120001715016 弹簧垫圈41050200700 Spring washer Y 4
17 4120001715017 螺钉41010101780 Screw Y 4
18 4120001715018 弹簧垫圈41050200500 Spring washer Y 4
19 4120001715019 密封件包 Sealing ring kit Y 1
1 4041000604 直接头LGB120-01614 Nipple Y 3
2 29120016561 动臂大腔至选择阀胶管 Hose assembly Y 1
3 4041000767 O形圈LGB168-11124 O-ring Y 9
4 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 7
5 4013000011 螺母GB6170-M12EpZn-8 Nut Y 7
6 4011000057 螺栓GB5782-M12*165EpZn-8.8 Bolt Y 2
7 4011000056 螺栓GB5782-M12*145EpZn-8.8 Bolt Y 1
8 4120002304 多路阀D32A-17.5 Control valve N 1
9 29120007651 接头 Nipple Y 2
10 29120014931 垫圈 Washer Y 18
11 29120016551 先导胶管（2c） Hose assembly Y 1
12 29120016251 多路阀固定板 Anchor plate Y 1
13 4011000149 螺栓GB16674-M16*50EpZn-8.8 Bolt Y 5
14 29120000031 多路阀回油钢管 Pipe Y 1
15 4011000477 螺栓GB16674-M12*35EpZn-8.8 Bolt Y 26
16 4041000011 分体法兰LGB117-314650 Flange half Y 5
17 4030000130 O形圈GB3452.1-47.5*3.55G O-ring Y 6
18 29120000051 固定支架 Bracket Y 1
19 4041000954 U形螺栓LGB159-14254 U-bolt Y 1
20 4041000955 底板LGB160-4254 Bracket Y 1
21 4041001263 软管LGB161-414118 Hose assembly Y 1
22 29120018521 多路阀进油胶管 Hose assembly Y 1
