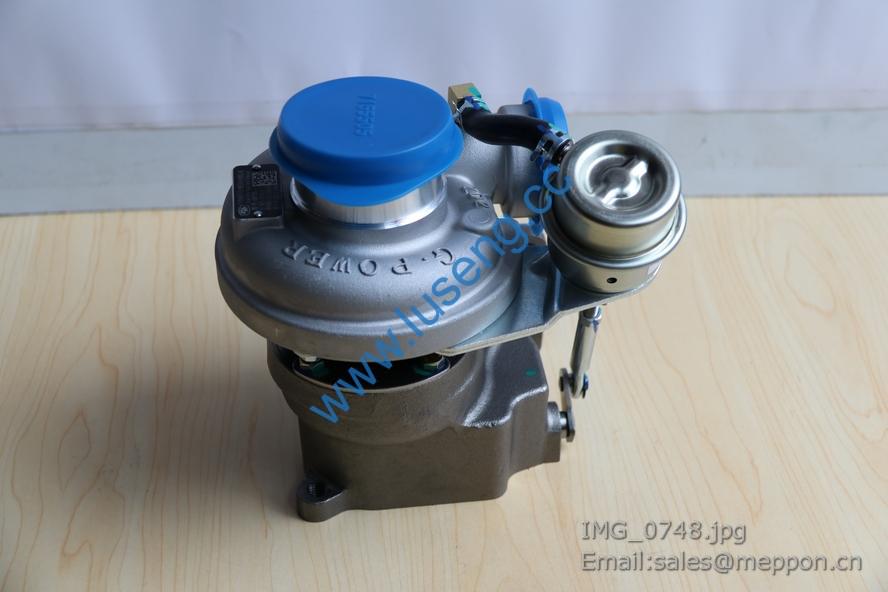

ZJ35-X10001404 TURBOCHARGER

1 A3100-1111128A 传动轴止推圈 Drive shaft thrust ring 1
2 Q150B0820TF2 螺栓 M8X20 Bolt M8X20 5
3 YC208-B10900F O 形圈 2.65X109 O-ring 2.65X109 1 易损件 EWP
4 A4400-1111001A 燃油喷射泵连接盘 Fuel injection pump joint tray 1
5 Q/YC149-8 复合式密封垫圈 8 Compound seal washer 8 2 易损件 EWP
6 6105Q-1007073 接头螺栓 Joint bolt 1
7 6QA6-1307017 管接螺栓 Pipe connecting bolt 1
8 Q/YC149-10 复合式密封垫圈 10 Compound seal washer 10 4 易损件 EWP
9 A3100-1111126 喷油泵传动外花键
Injection pump driving external
splines
1
10 A4400-1111350D 机油进油管组件 Oil inlet pipe 1
11 Q1841020TF2 螺栓 M10X20 Bolt M10X20 4
12 Q150B1040 螺栓 M10X40 Bolt M10X40 4
13 Q40310 垫圈 10 Lock Washer 10 4
14 Q40110 垫圈 10 Lock Washer 10 4
15 A3100-1111051A 托架 tray 1
16 L3000-1111052A 支架 Bracket 1
17 A5400-1111100-C27R 喷油泵 Injection Pump 1
龙口泵 Longkou pump，选
装 optional
A5400-1111052-C27 输油泵(S313) Fuel delivery pump (S313) 1
二次配套件 Secondary
matching part
A44L2-1111C-21-C27 柱塞 Plunger 6
二次配套件 Secondary
matching part
G0100-1111A-22-C27 出油阀 Fuel outlet valve 6
二次配套件 Secondary
matching part
A5400-1111100-493R 喷油泵 Injection Pump 1
衡阳泵 Hengyang pump，
选装 optional

G0200-1111F-21-493 柱塞 Plunger 6
二次配套件 Secondary
matching part
A5400-1111B-22-493 出油阀 Fuel outlet valve 6
二次配套件 Secondary
matching part
A3100-1111140-179 输油泵 Fuel delivery pump 1
二次配套件 Secondary
matching part
A5400-1111100-538R 喷油泵 Injection Pump 1
重庆泵 Chongqing pump，
选装 optional
A3100-1111140-179 输油泵 Fuel delivery pump 1
二次配套件 Secondary
matching part
18 Q/YC901-1C1010 铰接螺栓 M10X1 Hinged bolt M10X1 2
19 430D-1111070 增压补偿管 Turbocharger compensator pipe 1
20 Q/YC149-14 复合式密封垫圈 14 Compound seal washer 14 4 易损件 EWP
21 6QA6-1307017 管接螺栓 Pipe connecting bolt 1
22 A4400-1111360A 机油回油管组件 Oil return pipe 1
23 A4400-1111120A 传动轴套组件 Drive shaft sleeve 1
24 Q1841265 螺栓 M12X65 Bolt M12X65 2
25 Q1841245 螺栓 M12X45 Bolt M12X45 2
26 A4400-1111127 调整螺套 Adjusting threaded sleeve 2
27 Q1841085 螺栓 M10X85 Bolt M10X85 2
28 A4400-1111129 螺栓衬套 Bolt bushing 1
29 Q18412110 螺栓 M12X110 Bolt M12X110 1
30 Q1841025TF2 螺栓 M10X25 Bolt M10X25 3
31 YC208-A01180F O 形圈 1.8X11.8 O-ring 1.8X11.8 3 易损件 EWP
32 YC208-B08000F O 形圈 2.65X80 O-ring 2.65X80 1 易损件 EWP
33 A3100-1111132C 喷油泵传动轴 Injection pump rotation shaft 1
34 A3100-1111121 喷油泵齿轮 Injection pump gear 1
35 A3100-1111122 喷油泵齿轮垫板 Injection pump gear plate 1
36 Q1841030TF2 螺栓 M10×30 Bolt M10×30 4

A3500-1112010A 喷油器 Injector 6
A3500-1112050A 喷油嘴偶件 Nozzle matching parts 6
二次配套件 Secondary
matching part
A3500-1112010B 喷油器 Injector 6
A3500-1112050B 喷油嘴偶件 Nozzle matching parts 6
二次配套件 Secondary
matching part
A3500-1112010C 喷油器 Injector 6
A3500-1112050C 喷油嘴偶件 Nozzle matching parts 6
二次配套件 Secondary
matching part
2 A30-1112022A 固定板 Locking plate 6
3 Q1201035TF2 螺柱 M10X35 Stud M10X35 12
4 Q40310 垫圈 10 Washer 10 12
5 Q340B10 螺母 M10 Nut M10 12
6 150-1112012A 螺栓 Bolt 6
7 Q/YC149-6 复合式密封垫圈 6 Compound seal washer 6 12
8 630-1112001 喷油器垫片 Injector gasket 6 易损件 EWP
