Description

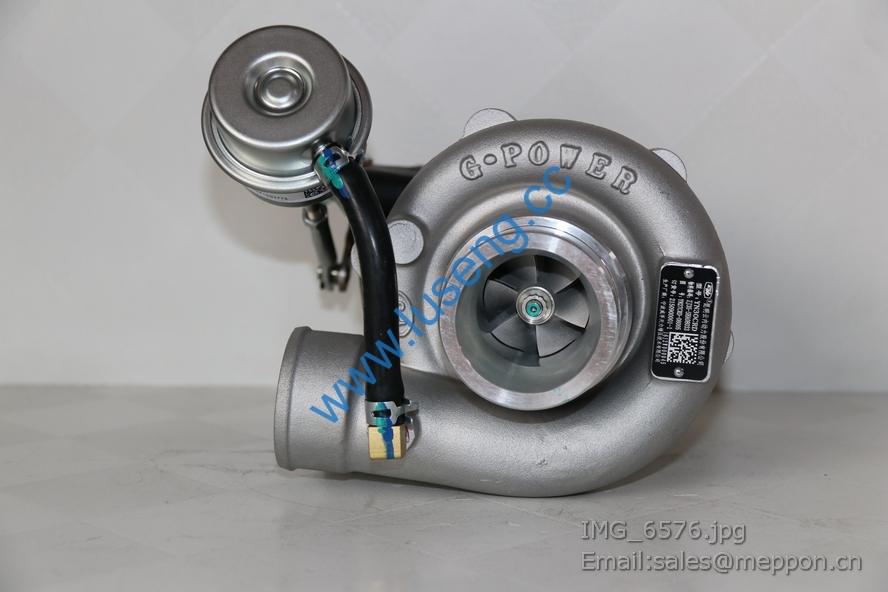

ZJ35-SHA08033 2150900001-1 turbocharger

26 A3000-1002041 空压机惰齿轮组件 Air compressor idler gear subassembly 1
27 L3000-1002084A 空压机惰齿轮座 Air compressor idler gear seat 1

1 A44Y1-1003141 前吊耳 Front lifting eye 1
2 A30-1003035A 缸盖短螺栓 Cylinder head short bolt 24
3 Q614B06 螺塞 NPT3/4 Screw plug NPT3/4 4
4 A30-1003032A 缸盖长螺栓 Cylinder head long bolt 2
5 6105QA-1003017D 垫圈 Washer 2 易损件 EWP
6 6105QA-1003017F 垫圈（二） Washer 2 2
7 A30-1003016 后气缸盖 Rear cylinder head 1
A3100-1003190 后气缸盖组件 Rear cylinder head subassembly 1
8 630-1003081 水套堵塞 Water jacket plug 12
9 A3000-1003037 后吊耳 Rear lifting eye 1
10 Q150B1225 螺栓 M12X25 Bolt M12X25 3
11 Q40312 垫圈 12 Washer 12 4
12 Q150B1230 螺栓 M12X30 Bolt M12X30 1
13 6105QA-1003088 气缸盖定位销套 Cylinder head dowel pin sleeve 4
14 A7100-1007021 排气门座 Exhaust valve seat 6
15 A7100-1007019 进气门座 Intake valve seat 6
16 A3000-1007018 气门导管 Valve guide pipe 12
17 A3100-1003001-085 气缸盖垫片 Cylinder head gasket 1
18 A30-1003015 前气缸盖 Front cylinder head 1
A3100-1003180 前气缸盖组件 Front cylinder head subassembly 1

1 A3008-1003206 前气缸盖罩 Front cylinder head cover 1
2 YC208-B04500F O 型圈 2.65X45 O-ring 2.65X45 1 易损件 EWP
3 A3000-1003033A 加机油口 Oil filler 1
4 150-1003040F 加机油口盖组件 Oil filler cover subassembly 1
5 A3008-1003207 后气缸盖罩 Rear cylinder head cover 1
6 A30-1003046 导流罩 Air guide sleeve 1
7 A30-1003044 上呼吸器垫片 Upper breather gasket 1
8 A30-1003040 上呼吸器焊接件 Upper breather weldment part 1
9 Q1840816 螺栓 M8X16 Bolt M8X16 4
10 Q67638 环箍 38 Loop hoop 38 1
11 A3206-1014003B 通气软管 Gas hose 1
12 Q40308 垫圈 8 Washer 8 17
13 Q150B0825 螺栓 M8X25 Bolt M8X25 1
14 A3100-1014005 管夹 Pipe clamp 1
15 A30-1003022 缸盖罩垫片 Cylinder head cover gasket 2 易损件 EWP
16 Q40108 垫圈 8 Washer 8 16
17 Q150B0830 螺栓 M8X30 Bolt M8X30 16
