Description

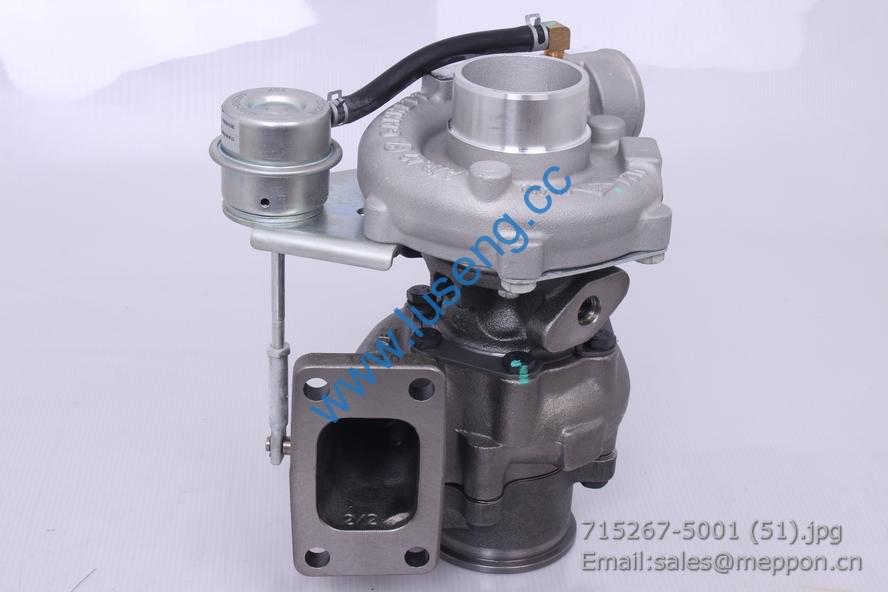

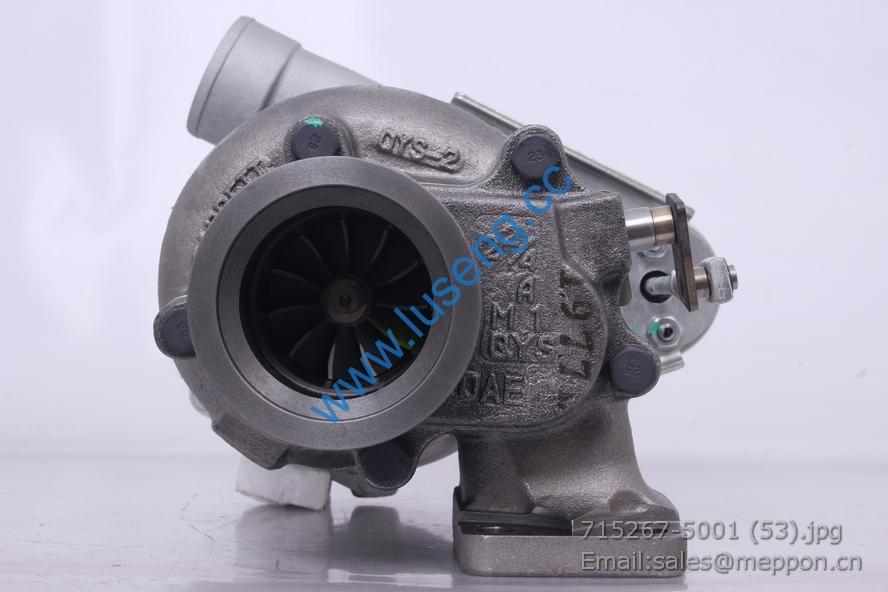

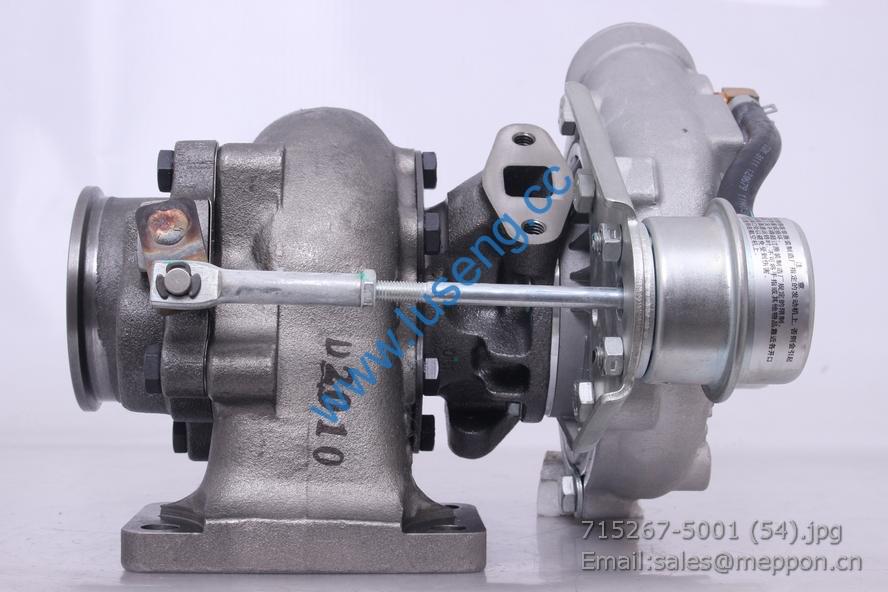

Z3900158 DONGFENG turbocharger 715267-5001S

47 HA01322 4100QB-01-057 上侧盖板垫片 Upper side cover washer 2
48 HA01670 4102QB-01-056 前上侧盖板 Front upper side cove 1
49 HB047 GB 898 螺柱 Bolt AM8×30 4
50 HB0612 青岛基珀 组合垫圈 Combination washer 8 4
51 HA01370 4100QB-01-068 侧盖板螺母 Side board nut 4
52 HB066Z JB 982-97 组合垫圈 Combination washer 16 1
53 HA0131 4100QB-01-065 螺塞Ⅱ Threaded plug Ⅱ M16×1.5 1
54 HB03125 GB/T 5783 螺栓 Bolt M10×25-8.8 3
55 HB064T GB 93 垫圈 Sping washer 10 3
56 HB0621T GB/T 97.1 垫圈 Washer 10 3
57 发动机前支承焊合件(左) Front support welding-on for 1
58 HA01290 4100QBZL-01.07-001 呼吸管接管 Breather joint pipe 1
59 HB1312 JBJ15001-87 喉箍 Clamp 1
60 HA010291 YN33CR-01.07C 呼吸器焊合件 Welded rear upper side cover 1
61 4102QB-01-008 前、后主轴承上瓦 Upper main bearing liner 2
62 4102QB-01-009 前、后主轴承下瓦 Lower main bearing liner 2
63 HA01385 4102QB-01.01-004 后主轴承盖Ⅴ Rear main bearing cover 1
64 HA0199 4102QB-01-010 曲轴止推片 Crankshaft thrust sheet 4
65 GB/T 119.1-2000 销 Pin 3 h8×10 2
66 HA01119 4102QB-01.01-005 主轴承盖螺栓 Main bearing cover bolt M16×110 10
67 HA01377 4102QB-01.01-003 中间主轴承盖Ⅱ、Ⅲ、Ⅳ Middle main bearing cover 3
68 HA0195 4102QB-01-007 中间主轴承下瓦 Bottom half,middle main bearing 3
69 4102QB-01-006 中间主轴承上瓦 Upper half,middle main bearing 3
70 HA01760 4100QL-01.14 活塞冷却喷嘴总成 Piston cooling nozzle Assy 4
71 HA01376 4102QB-01.01-002 前主轴承盖 Front main bearing cover 1

1 HA010213 4100QBZL-01-029A-ZXB 齿轮室盖 Gear house cover 1
2 HA2307 4100QB-23.02-003 转向泵垫片 Gasket, Pump-power steering 1
3 HB03100 GB/T 5783 螺栓 Bolt M8×30 9
4 HB063T GB 93-87 垫圈 Sping washer 8 9
5 HB062T GB/T 97.1 垫圈 Washer 8 9
6 HA2374 4100QB-23.02-006 转向泵安装孔盖板 Steering pump cover 1
7 HB03106 GB/T 5782 螺栓 Bolt M10×20 2
8 HB0621T GB/T 97.1 垫圈 Washer 10 2
9 HB064T GB 93-87 垫圈 Sping washer 10 2
10 HB0416 GB 898-88 螺栓 Bolt AM10×65 3
11 HB0621P GB/T 97.1 垫圈 Washer 10 3
12 HB064T GB 93-87 垫圈 Sping washer 10 3
13 HB0523 GB/T 6170 螺母 Nut M10 3
14 HA01517 4100QBZL-01-039 堵塞（螺纹为左旋） Plug 14 1
15 JB982-77 组合垫圈 Combination washer 14 1
16 GB/T 5783 螺栓 Bolt M6×12 2
17 GB/T 97.1 垫圈 Washer 6 2
18 HA302 YFR055080.0 前油封 Front oil seal 55×80×12 1
19 GB/T 5783-2000 螺栓 Bolt M8×16 1
20 GB/T 5782 螺栓 Bolt M8×45 3
21 GB 93 垫圈 Sping washer 8 4
22 GB/T 97.1 垫圈 Washer 8 4
23 HA010157 YN33PE-01-031 提前器罩壳 Advancer cover 1
