Description

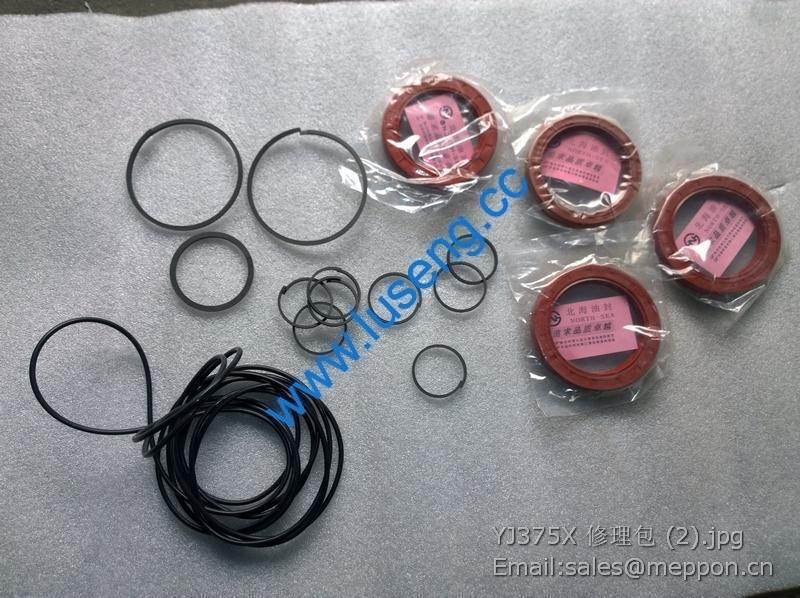

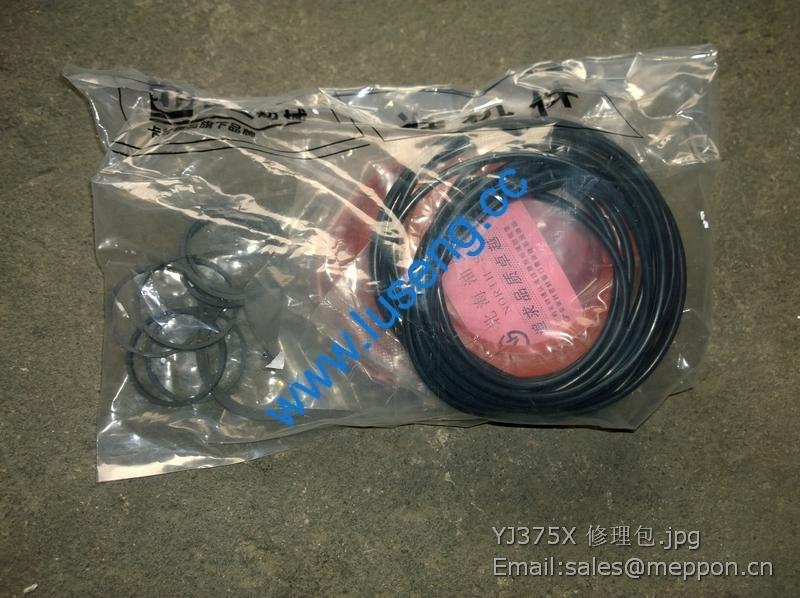

YJ375X REPAIR KITS SEM SHANTUI
1 Shanghai clutch, 1lin/1lin 118-00 1 5 Retainer ring 85 11062176/12246 2
1.1 Driven disc assembly, main clutch 79-00 1 6 Retainer ring 45 11069076/12245 2
1.2 Driven disc assembly, auxiliary clutch 80-00 1 7 Oil seal 45×85×10 5144379/1.25.030 1
1.3 Compressing disc, main clutch 118-79 1 8 Retainer ring 85 11062176/12246 1
1.4 Compressing disc, auxiliary clutch 118-77 1 9 Bearing retainer
63×84.5×3
SZ804.21.702 1
1.5 Lever, auxiliary disengaging rod 118-67 1 10 Bearing 6008.2RS GB/T276 1
1.6 Lever, main disengaging rod 118-53A-I 1 11 Bolt M8×95-Zn.D GB/T5782-2000 12
1 Shanghai clutch, 1lin/1lin（Matching imported friction
material）
SZ904.21.011 1 12 Washer 8-Zn.D GB/T7244-1987 12
1.1 Driven disc assembly, main clutch 79B-00 1 13 Shaft, clutch, PTO 5137585/1.25.351 1
1.2 Driven disc assembly, auxiliary clutch 80-00 1
1.3 Compressing disc, main clutch 118-79 1
1.4 Compressing disc, auxiliary clutch 118-77 1
1.5 Lever, auxiliary disengaging rod 118-67 1
1.6 Lever, main disengaging rod 118-53A-I 1
2 Shaft, main clutch, additional reducer 5125579/1.32.308A 1
3 Bearing 6209E（209） GB/T276 1
4 Oil seal 25×31×7, shaft, main clutch 4985295/1.28.174 1
Front axle assembly SZ804.31B.001 1 13 Oil seal FB 40×62×10 5136002/1.41.538 2
1 Plug M22×1.5 10305114/14530 2 14 Collar, oil seal, half axle 4996762/1.41.537 2
2 Composite seal washer22 JB 982-77 2 15 O-sealing ring 80×2.62 4966231/1.40.023 2
3 Axle housing unit 20101010044 1 16 Cardan shaft assembly (RH) 8A5142040/20 1
3.1 Dowel pin 5×15 4966244/1.41.016 1 16.1 Long fork shaft (RH) 8A5142040-1/20 1
3.2 Rocking pin, front axle 11/5140017 1 16.2 Spider 8A5142040-4/20 2
3.3 Axle housing 30101030013 1 16.3 Double fork 8A5142040-2/20 1
3.4 Dowel pin 10×20 4988170/1.40.021 2 16.4 Retainer ring 885142040-6/20 8
4 Limit screwM12×1.25×55 5100194/1.40.045 2 16.5 Short fork shaft 8A5142040-3/20 1
5 Nut M12×1.25 14048814/10128 2 17 Cardan shaft assembly (LH) 8A5142043/20 1
6 Breather plug assembly 13413290/24628 1 17.1 Long fork shaft (LH) 8A5142043-1/20 1
7 Ball pivot pair, kingpin 5119699/1.40.240 4
8 Sealing ring 5121471/1.40.232 4
9 Retainer ring 35 11068376/12245 2
10 Bearing 6007 (35×62×14) GB/T 276-1994 2
11 Retainer ring 62 11061076/12246 4
12 Bearing seat, half axle 4996755/1.40.038 2
1 Locking nut 5143242/16 1 12 Differential assembly 5117219/1.41 1
2
Collar, oil seal
4997451/1.41.143 1 12.1 Thrust washer, planetary
gear
4987975/1.32.425 2
3 Oil seal 45×75×10 5135294/16 1 12.2 Planetary gear 885103870/1.32.415B 2
4 O-sealing ring 31.5×1.8 GB/T 3452.1-1992 1 12.3 Shaft, pinion, differential 5148935/1.32.416 1
5 Steel ball 6.35 GB/T 308-1994 1 12.4 Thrust washer, side gear 1.6
mm
5148936/1.32.424 2
6 Oil seal ring, shaft, bevel
pinion
5142026/16 1 Thrust washer, side gear 1.8
mm
5148937/1.32.424
7 Rear bearing 5133776/16 1 Thrust washer, side gear 1.7
mm
5148938/1.32.424
8 Front bearing 5143109/16 1 12.5 Side gear (LH) 885103868/1.32.413 1
9 Adjusting washer 3.0 mm 5142032/16 1 12.6 Side gear (RH) 885110716/1.41.502 1
10 Bevel gear pair9/39 5142023/16 1 12.7 Carrier, differential 4996747/1.41.402 1
10.1 Shaft, bevel pinion 5142024/16 1 12.8 Dowel 4987976/1.32.428 1
10.2 Bevel gear wheel 5111094/16 1 13 Bolt M12×1.25×25 14274434/10357/04 8
