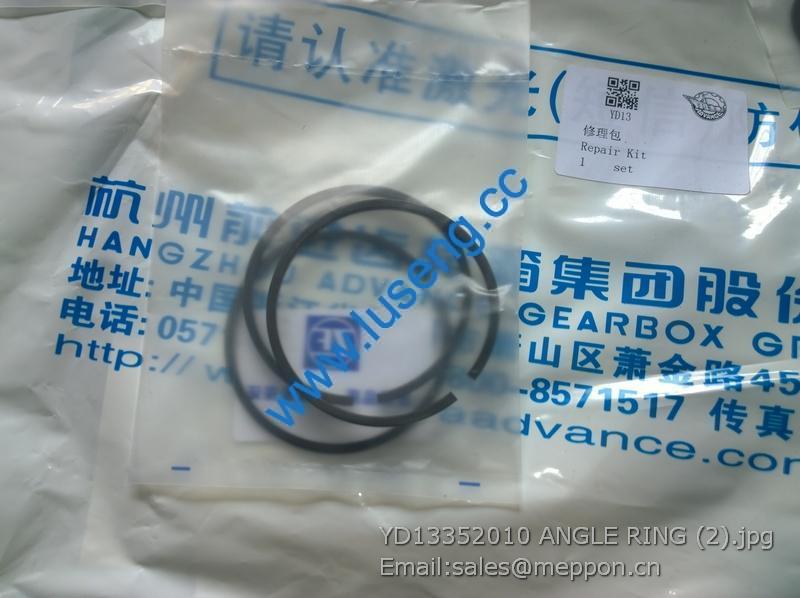

YD13 352 010 ANGLE RING 4110000076280 860110161 860116004 W43001113

Category:

Description

YD13 352 010 ANGLE RING 4110000076280 860110161 860116004 W43001113

1 Harness (RR, LH) SZ904.48.022-2 1 4 Cable tie 885112712/1.75.488 10
2 Harness (RR) SZ804.48.023-3 1 5 Harness (FR, LH) X700.48.021-4 1
3 Main harness SZ904.48B.020-4 1 6 Cab harness SZ804.48B.024-2 1
SZ904.48D.020-4(for
equipped with
pre-heater）
1 7 Screw M5×16 GB/T822-2000 2
8 Washer 5 GB93-97 2
9 Cover, insulation pad 4998891/1.75.480 1
10 Insulation pad 4998892/1.75.494 1
11 Fusible link SZ804.48B.026 1

1 Harness (RR, LH) SZ700.48A.022-1 1 4 Cable tie 885112712/1.75.488 10
2 Harness (RR) SZ700.48.023-2 1 5 Harness (FR, LH) X700.48.021-4 1
3 Main harness SZ904.48B.020-4（For
side-mounted battery）
1 7 Screw M5×16 GB/T822-2000 2
SZ904.48D.020-4(battery
side-mounted, for
equipped with
pre-heater）
1 8 Washer 5 GB93-97 2
9 Cover, insulation pad 4998891/1.75.480 1
10 Insulation pad 4998892/1.75.494 1
11 Fusible link SZ804.48B.026 1

1 Stop bolt unit, counterweight
（FR）（FR 10 optional）
SZ804.30.022 1 3 Nut M16×1.5 10112/10790524 1
Stop bolt unit, counterweight
（FR）（FR 8 optional）
SZ804.74A.012 1 4 Washer SZ804.74.103 4
Stop bolt unit, counterweight
（FR）（FR 6 optional）
SZ804.30.021 1 5 Lock pin 44007661/1.82.945 1
Bolt M16×1.5×250(FR 4
optional)
10312/10790524 1 6 Traction pin assembly 5118742/1.21.573 1
2 Counterweight (FR)(FR 10
optional)
SZ804.74A.501 10 7 Ballast bracket SZ804.74A.512 1
Counterweight (FR)(FR 8
optional)
SZ804.74A.501 8 8 Conical spring washer 11200274/10187 4
Counterweight (FR)(FR 6
optional)
SZ804.74A.501 6 9 Studs SZ804.74.510 4
Counterweight (FR)(FR 4
optional)
SZ804.74A.501 4 10 Nut M16×1.5 10790524/10112 4

1 Clutch as spare part, 1lin/1lin 5133399/1.25.000A
①
1 7 Oil seal 45×85×10 5144379/1.25.030 1
1.1 Driven disc assembly, main clutch 8811V2540-3 1 8 Retainer ring 85 11062176/12246 1
1.2 Driven disc assembly, auxiliary clutch 8811V2508 1 9 Bearing retainer 63×84.5×3 SZ804.21.702 1
1.3 Compressing disc, main clutch 8811V2515-1 1 10 Bearing 6008.2RS GB/T276 1
1.4 Compressing disc, auxiliary clutch 8811V2516 1 11 Bolt M8×95-Zn.D GB/T5782-2000 9
1.5 Auxiliary disengaging rod 8811V2513A-2 1 12 Washer 8-Zn.D GB/T7244-1987 9
1.6 Main disengaging rod 8811V2512A-1 1 13 Shaft, clutch, PTO 5137585/1.25.351 1
2 Shaft unit, main clutch 5125360/1.25.013A 1
3 Bearing 6209E（209） GB/T276 1
4 Oil seal 25×31×7, shaft, main clutch 4985295/1.28.174 1
5 Retainer ring 85 11062176/12246 2
6 Retainer ring 45 11069076/12245 2
