Description

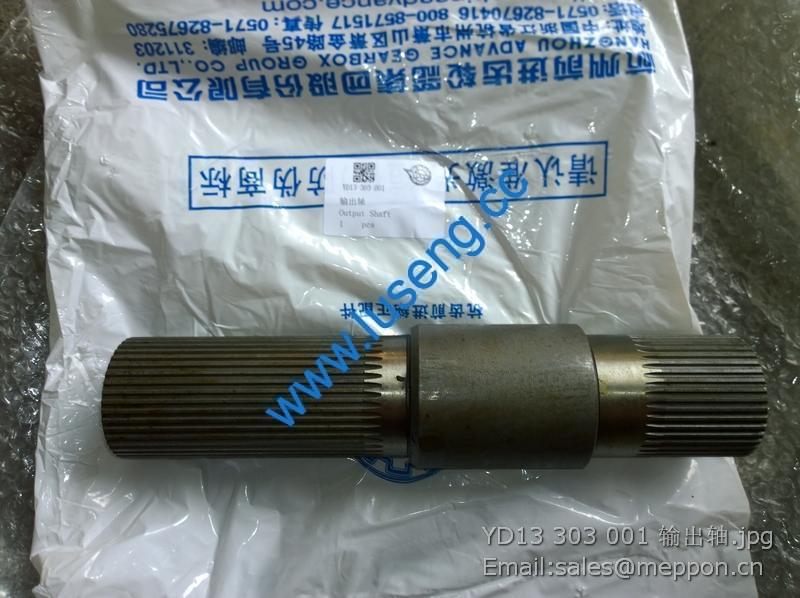

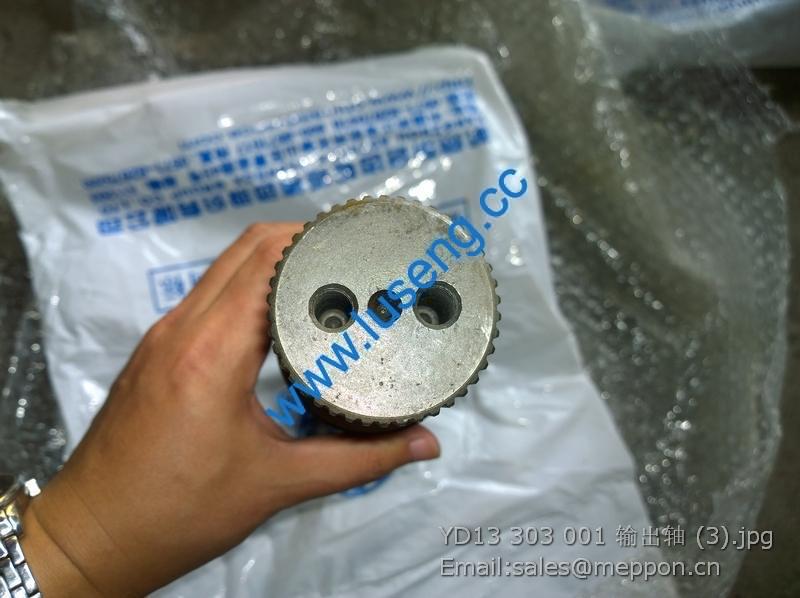

YD13 303 001 ADVANCE OUTPUT SHAFT 4110000076341

1 Washer 8 GB/T7244-1987 8 19
Self-locking nut
M10×1.25
12575614/10125 1
2 Nut M8 GB/T6170-2000 3 20 O-sealing ring 21.89×2.62 14457681/14618 1
3 Studs 13544324/10219 3 21 Operating shaft, load control 5129388/1.82.550 1
4 Spacer, sector plate 5117204/1.85.515 3 22 Key 4×14 GB 1096-76 1
5 Cap, spring, control sector plate 5129672/1.82.519 1 23 Retainer ring 8 GB/T894.1-1986 3
6 Spring 4973370/1.82.513 1 24 Roller 5111028/1.82.562 3
7 Spring 4952761/1.82.511 1 25 Pin 5011775/1.82.532 1
8 Friction disc 5153008/1.82.508A 2 26 Spring, lever arm 5148884/1.82.588 1
9 Friction disc 5153007/1.82.508 1 27 Pull rod, control valve 5120281/1.82.586 1
10 Bolt M8×25 GB/T5783-2000 3 28 Ball Bolt 5120282/1.82.587 1
11 Support, control lever 5129377SZ/1.82.517 1 29 Nut M10×1.25 GB/T6173-2000 1
12 Spiral spring pin 4×24 BZ/JHX-SZ 1 30 Spring clip 8 11064076/12252 3
13 O-sealing ring 10.82×1.78 14453081/14618 2 31 Pin 5117161/1.82.557 1
14 Plug 5129399/1.82.544 1 32 Pin 5117136/1.82.561 1
15
Rectangular cross-section seal
ring 22×28×1.5
10263460/14607 1 33 Lever arm assembly 5117135/1.82.541 1
16 Rise-Hold-Fall joystick 5129393/1.82.542 1 34 Joystick 5120291/1.82.541 1
17 Hub unit, load control lever 5129376/1.82.502 1 35 Needle bearing 14×20×12 5109160/1.82.536 4
18 Hub unit, position control lever 5129374/1.82.518A 1 36 Bushing, load control lever 5116251/1.82.543 1
37 Key 5×10 GB 1096-79 1

38 Crank axle 5129386/1.82.506 1 52 O-sealing ring 15.54×2.62 14457281/14618 1
39 Support, lever 5129400/1.82.531 1 53 Shaft, inner lever 5135221/1.82.533 1
40 Spring 4959139/1.63.807 1 54 Bushing, load control lever 5135219/1.82.546 1
41
Bolt, limit adjustment
M8×1.25×55
5121522/1.82.540 1 55 Inner lever assembly 5117151/1.82.535 1
42
Screw tube, limit adjustment
M8×1.25×20
5121523/1.82.540A 1 56
Control lever (RR), load
control
885136355/1.82.548A 1
43 Stopper (FR) 885120284/1.82.539A 1 57 Fork, rod, load control 885136356/1.82.548 1
44 Retainer ring 12 13397576/12248 1 58 Spring clip 11064176/12252 1
45 Pin 5117156/1.82.530 1 59 Cam, position control 5117143/1.82.522 1
46 Raise-Neutral-Lower cam 5129396/1.82.527 1 60 Limit link 5120285/1.82.538 1
47 Cam, load control 5122497/1.82.524 1 61 Spring 4973650/1.82.563 1
48 Screw M8×12 GB 71-85 1 62 Elastic cylindrical pin 3×22 BZ/JHX-SZ 1
49 Bolt M10×1.25×18 GB/T5786-2000 1 63 Elastic cylindrical pin 4×20 BZ/JHX-SZ 1
50 Washer 10 14198800/10182 1 64 Needle bearing 12×16×10 5117138/1.82.537 2
51
Grip, shaft, inner lever, load
control
5135220/1.82.515A 1 65
Joystick assembly, main
control valve
5126220/1.82.512 1
66 Bolt M8×20 GB 30-76 2

1 Knee 5116243/1.89.622 1 12 Long pole unit, load control SZ804.56.016 1
2 Plug 25 4997756/1.89.698 1 13 Retainer ring 10 SZ804.56.038 2
3 Joint bearing U25 GB 304-6 2 14 Pole with ball 5119529/1.21.071 1
4 Spacer, ball pivot 5116246/1.89.624A 2 15 Dowel pin 15×22 GB/T6173-2000 1
5 Nut M10×1.25 SZ804.56.113 2 16 Pin, roller 5109172/1.89.635 2
6 Retainer ring, rod (LWR) 5111643/1.89.657 2 17 Roller 5109156/1.89.632 1
7 Nut M10×1.25×55 SZ804.56.013-2 2 18
Sensing fork unit, load
control
885123964/1.89.627 1
8 Sensing shaft, load control SZ804.56.114A 1 18.1 Sensing fork, load control 885123963/1.89.627 1
9 O-sealing ring 15.08×2.62 5130456/1.89.657 1 18.2 Needle bearing 14×20×12 5109160/1.82.536 2
10
Bushing, sensing shaft, load
control
SZ804.56.104 1 19 Hexagon head plug M22×1.5 10305174/14530 1
11 Dowel pin 15×22 GB/T6170-2000 2 20
Rectangular cross-section
seal ring 22×28×1.5
10263460/14607 1
21 Support, knee 124562/1.89.616 1
22 Bolt 16×1.5×115 B5785-86 7
23 Oil seal assembly, knee SZ804.56.023 2
24 Spacer, shaft, ball joint 5116245/1.89.623A 2

1 Support assembly, quick change coupler SZ804.56.024-1 1 12 Bolt M10×1.5×55 GB/T5785-2000 2
2 Pin 3.2×22 GB 91-85 1 13 Nut M10×1.25-Zn.D GB889.2-86 2
3 Washer 12
GB/T97.1-2002
1 14
Connecting pin (UPR), lift link (LH
& RH)
5130643/1.89.657
2
4 Stop spring, diagonal-brace hook 5140549/1.82.067 1 15 Lift link assembly SZ804.56.013-2 2
5 Hook unit, rod (UPR) SZ804.56.026 1 15.1 Clevis (UPR), lift link SZ804.56.114A 2
6
Connecting pin assembly (FR), rod
(UPR)
5120672/1.89.669
1 15.2
Connecting pin (UPR), lift link (LH
& RH)
5130643/1.89.657
2
7 Split pin 44007661/1.82.945 5 15.3 Clevis (MID), lift link SZ804.56.104 2
8 Link assembly (UPR) SZ804.56.011 1 15.4 Nut M30-Zn·D GB/T6170-2000 2
8.1 Screw assembly (FR), rod (UPR)
5143009/1.89.661A
1 15.5
Adjustment screw tube assembly,
lift link
SZ804.56.016
2
8.2 Nut M30-Zn.D GB/T6170-2000 1 15.6 Clevis assembly (LWR), lift link SZ804.56.038 2
8.3
Adjustment screw tube assembly, link
(UPR)
LX804F.56.017
1

8.4 Screw assembly (RR), link (UPR) 5143010/1.89.662A 1
9 Pin (RR), upper link 822483/1.82.967 1
10 Lock pin assmbly 4967704/1.82.941A 1
11 Link assembly (LWR, RH) SZ804.56.031 1
11.1 Link assembly (LWR, LH) SZ804.56.030 1
