Description

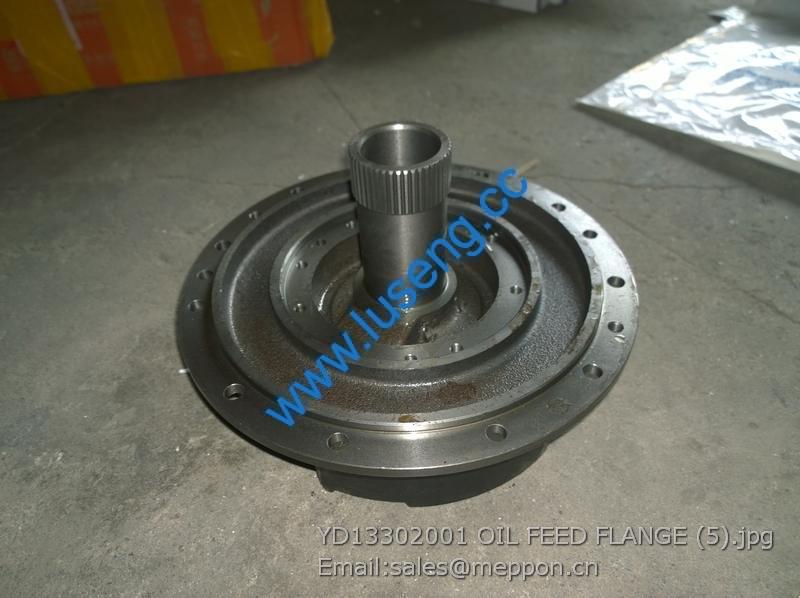

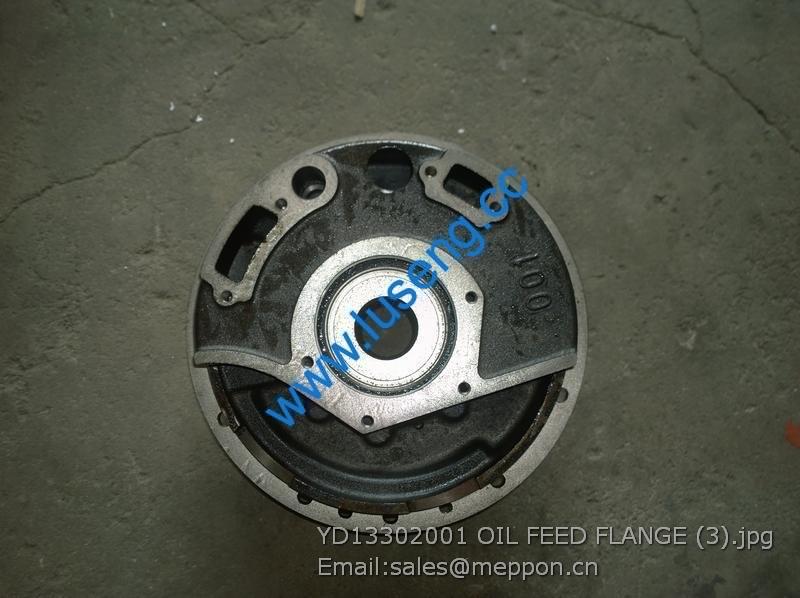

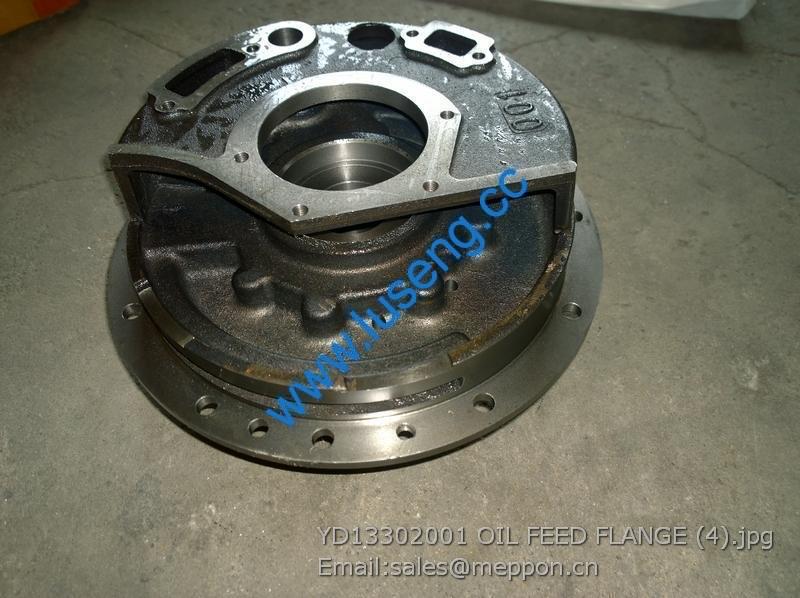

YD13 302 001 OIL FEED FLANGE 4110000076335
1 Bolt M16×1.5×250-Zn.D GB5785 1 3 Nut M16×1.5 10112/10790524 1
2 Counterweight (FR) SZ804.74A.501 4 4 Washer SZ804.74.103 4
5 Lock pin 44007661/1.82.945 1
6 Traction pin assembly 5118742/1.21.573 1
7 Ballast bracket SZ804.74A.503A 1
8 Tapered spacer 18×36×4.4 10187/11191674 4
9
Bolt
M18×1.5×100-10.9-Zn.D
GB5785 4
1 Socket bolt, counterweight disc 44018046/1.49.723 6 6 Washer, spoke 4986961/1.49.440 6
3 Washer 16-Zn.D GB 97.1-87 6 7 Bolt M16×1.5×35-Zn.D GB/T5785-2000 6
4 Nut M16×1.5 GB/T6171-2000 6
5 Disc (RR 2), driving wheel SZ804.74A.502 2
1 Differential lock-up sign 1.98/880009827 1 16 Hydraulic lifting warning
sign (in English)
1.98.077A/5126654A 1
2 Starting sign 1.98/880009825 1
3 Emergency brake sign 1.98/880009854 1
4 Antifreeze sign (in English) SZ804.98.315 1
5 Oil change label (in English) SZ804.98.318 1
6
“Keep away from lifter”
warning sign
1.98/880009842 1
7 Sign, operation manual 1.98/880009843 1
8 Heat warning sign 1.98/880009846 1
9 Fan warning sign 1.98/880009847 1
10
Clutch adjustment warning sign
（in English）
1.26/8808026004SZ 1
11
Guard safety warning sign (in
English)
1.98/880009809A 1
12 Safe operation sign (in English) 1.98/880009808A 1
13
PTO control warning sign (in
English)
1.98/880009815 1
14
Position sign (in English),
lever, auxiliary clutch
1.98.019A/5011794A 1
15
Implement safety sign (in
English)
1.98.061A/5011792A 1
1 Gasket(Sponge) SZ700.47.164 1 13 Washer 8-Zn.D GB/T97.1-2002 2
2 Washer 8 GB/T93-1987 2 14 Sealing strips Ⅱ SZ700.47.166 2
3 Seal plate unit (UPR) SZ804.19.016 1 15 Wind deflector Ⅱ SZ804.47.163 2
4 Radiator assembly SZ4108T.540000LV 1 16 Water outlet hose, radiator 4NC.540006SZ 1
5 Nut M8-Zn.D GB/T6170-2000 4 17 Bolt M6×16-Zn.D GB/T5783-2000 4
6 Bolt M8×20-Zn.D GB/T5783-2000 2 18 Washer 6 GB/T93-1987 4
7 Clamp d54(Stainless steel) JB/T 8870-99 4 19 Nut M6-Zn.D GB/T 6177-2000 4
8 Water inlet hose, radiator LY1054.19.101 1 20 Bolt M10X50-Zn.D GB/T5783-2000 2
9 Pin 3×16 -Zn.D GB/T91-2000 1 21 Washer 10-Zn.D GB/T93-1987 4
10 Pull rod SZ804.19.501 1 22 Washer 10-Zn.D GB/T5287-2000 2
12 Washer 8-Zn.D GB/T7244-1987 6 23 Shock absorber SZ4108T.540020 2
24 Cushion plate SZ4108T.540021 2
25 Fan cowl SZ4108T.540000LV-000 1
26 Rap, radiator SXG-I-0.7 1
27 Overflow tank SZ804.19.030 1
28 Bolt 8×20-Zn.D GB/T5783-2000 2
29 Water overflow pipe SZ904.19.125 1
30 Grass windshield 4RTF540000-00-06 1
31 Drain cock assembly T/HS-203-0 1
