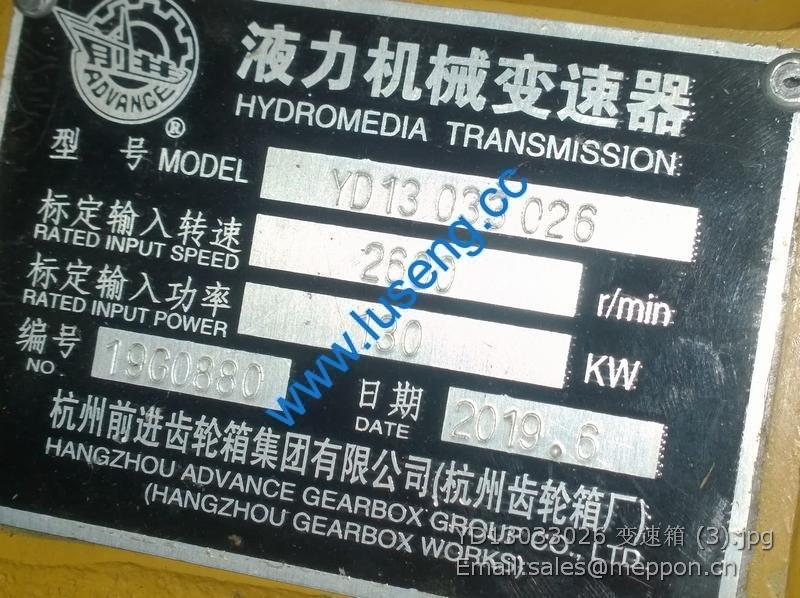

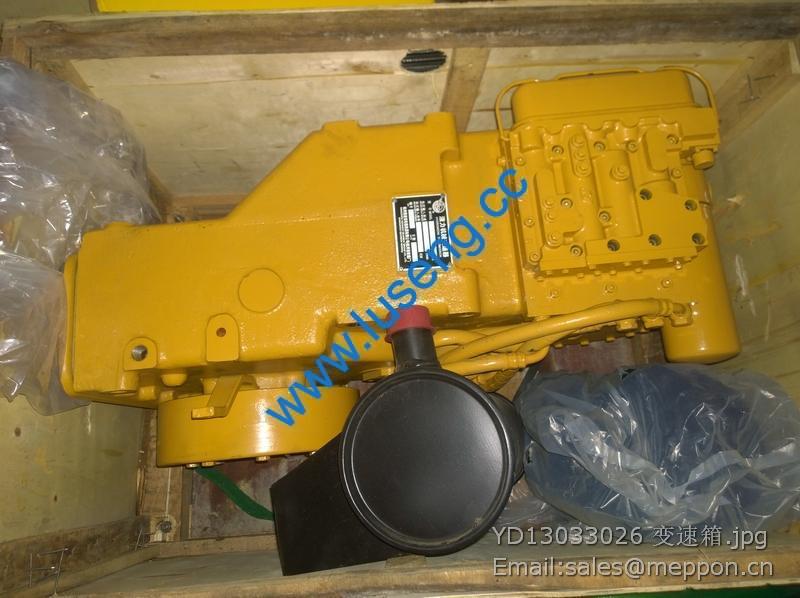

YD13 033 026 TRANSMISSION ASSEMBLY ADVANCE YD13033026
1 Washer 12 GB/T93-1987 1 19 Cover, ball joint 10124514/13130/01 2
2
Connected to multi-way valve outlet
pipe assembly
880808202/1.82 1 20 Control link, multi-way valve SZ900.61.103 2
3
Rectangular cross-section seal ring
18×24×1.5
10259960/14607 10 21 Connecting pin 5126824/5 2
4 Connector on valve 5112588/1.82.799B 1 22 Bolt M10×1.25×70 GB/T5785-2000 3
5 Adapter sleeve 5121789/1.82.794 2 23 Nut M10×1.25 GB/T6171-2000 3
6 Connector 5143445/1.82.794A 1 24 Oil inlet pipe assembly, multi-way valve to lifter 880808204/1.82 1
7
Rectangular cross-section seal ring
22×28×1.5
10263460/14607 4 25
Oil pipe assembly (LWR), multi-way valve to quick
change coupler
5129179/1.82.7
93
2
8
Double-piece single and double
acting multi-way valve assembly
880008261A/1.82 1 26 Connector assembly, hydraulic output
NV 12 GAS F
V+TM12
1
9 Bracket, multi-way valve 5125388/1.82.714 1 26.1 Female connector unit
NV 12 GAS M
V+TF12
4
10 Washer 10 GB/T93-1987 8 26.2 Male connector unit
5129168/1.82.7
85
4
11 Bolt M10×16 GB/T5783-2000 4 27 Hexagon nut M24×1.5 8A5129171/1.82.791 8
12 Bolt M10×1.25×22 GB/T5786-2000 1 28 Oil outlet pipe assembly, multi-way valve to lifter 1
13 Pin 2×18 GB/T91-2000 1 29 Joint, oil outlet pipe, multi-way valve
5133609/1.82.7
87
2
14 Bushing, outer lever 5126032/1.82.262 2 30
Oil pipe assembly (UPR), multi-way valve to quick
change coupler
5129181/1.82.793A 4
15
Head, handle, one-piece
distribution valve
SZ900.61.101 2 31 Hollow bolt, fuel feed pipe 5100984/1.82.799A 4
16 Mounting bolt , knob 5113531/1.82.797C 4 32 Bolt M12×1.25×16 GB/T5786-2000 1
17
Lever, handle, one-piece
distribution valve
SZ804.61C.010 1 33 Bracket 885149048/1.82.158 3
18 Clip 13 10125574/13130/03 2
34 Bolt M10×150-8.8-Zn·D GB 901-88 3
35 Washer 10 GB 859-87 3
36 Nut M10-Zn·D GB/T6170-2000 3
37 Stopper unit 885116896 2
38 Control fork 885126027 2
39
Lever, handle, two-piece
distribution valve
SZ804.61C.011 1
1 Screw M5×16 GB70-85 4 22
Single and double acting adjusting
seat
DLF/50-1P-215 2
2 Washer 5-140HVZn.D GB848-85 4 23
Single and double acting adjuster
lever
DLF/50-1P-214 2
3 Spring cup DLF/50-1P-208 2 24 O-ringΦ17×2.65 GB3452.1-82 2
4 Screw, spool valve DLF/50-1P-205 3 25 O-ringΦ13.2×1.8 GB3452.1-82 2
5 Seat, spring DLF/50-1P-206 2 26 Housing, three-position valve DLF/50-1P-209 2
6 Spring, spool valve DLF/50-1P-207 2 27 Scraper seal DLF/50-1P-201 2
7 Rod, three-position valve DLF/50-1P-203 2 28 Seat, relief valve DLF/50-1P-101 1
8 Cover (RR) DLF/50-1P-204 1 29 Core, relief valve DLF/50-1P-102 1
9 O-ring Φ17×1.8 GB3452.1-82 2 30 Spring, relief valve DLF/50-1P-104 1
10 Retainer ring, seat, oil outlet DLF/50-1P-007 1 31 Adjusting block, spring DLF/50-1P-103 1
11 Seat, oil outlet DLF/50-1P-006 1 32 Retainer ring, safety valve DLF/50-1P-106 1
12 Body, one-way valve DLF/50-1P-210 2 33 Nut M10×1 GB6170-86 6
13 Spring, one-way valve DLF/50-1P-213 2 34 Washer 10 GB859-87 3
14 Seat, spring, check valve DLF/50-1P-212 2 35 Bolt M10×1-8.8L＝160 GB901-88 3
15 Retainer ring, seat, spring, check valve DLF/50-1P-211 2 36 O-ringΦ19×2.65 GB3452.1-82 6
16 O-ring Φ14×2 GB3452.1-82 2 37 O-ringΦ14×2.65 GB3452.1-82 2
17.1 Stopper DLF/50-1P-003 2 38
Small retainer ring, three-position
valve
DLF/50-1P-009 2
17.2 Locking plate DLF/50-1P-002 2 39 Retainer ring, three-position valve DLF/50-1P-008 2
17.3 Retainer DLF/50-1P-301 2 40 Composite seal washer 27 JB982-77 2
18 Control fork DLF/50-1P-001 2 41 O-ringΦ16×1.8 GB3452.1-82 5
19 Pin 2×10-Zn.D GB91-86 2 42 Cover (FR) DLF/50-1P-005 1
20 Shaft, Pin B622 GB882-86 2 43 Support, control lever DLF/50-1P-202 2
