Description

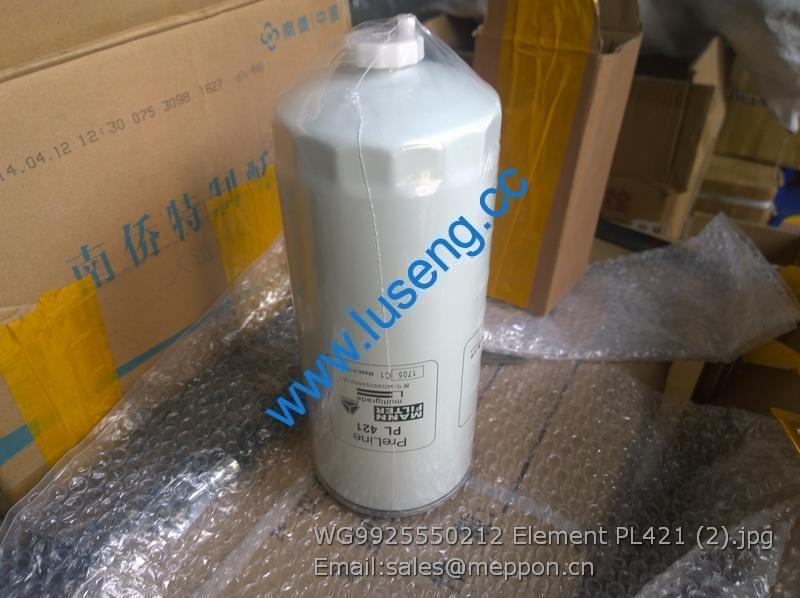

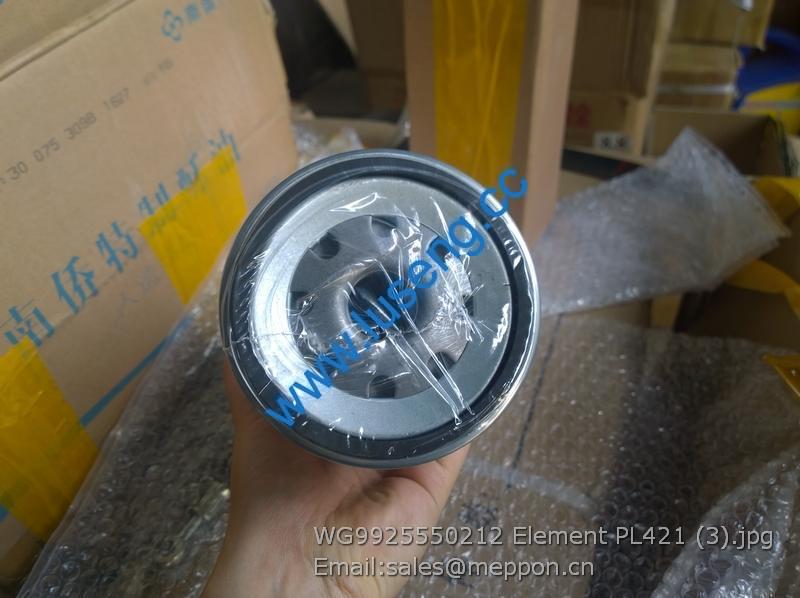

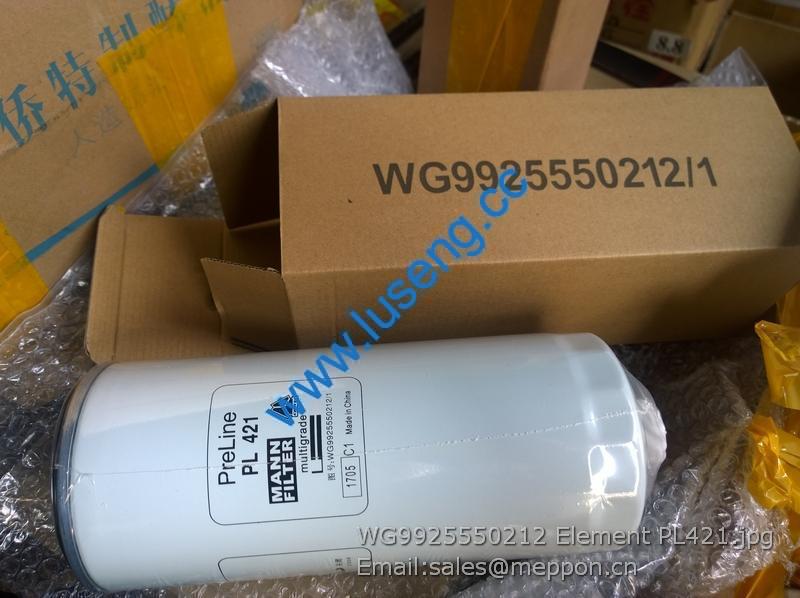

WG9925550212/1 Element PL421 SINOTRUCK WG9925550212

1
Battery positive pole to power switch
cable
SZ804.48.037 1 10 Fastening bolt 8B0007415/1.74 2
1.1 Bolt M6×20-Zn.D GB/T5783-2000 2
880007415/1.74(for 150
battery)
2
1.2 Pressure plate, terminal, battery SZ804.48.352 1 11 Pressure plate, battery SZ804.48.304-1 1
1.3 Positive terminal, battery SZ804.48.351 1
SZ804.48B.304(150 for
150 battery)
1
1.4 Nut M6-Zn.D GB/T6170-2000 2 12 Rubber pad SZ804.48.305 1
1.5 Washer 6-Zn.D GB/T97.1-2000 2 13 Limit angle, battery 880007417/1.74 1
1.6 Bolt M6×25-Zn.D GB/T5783-2000 2 14 Bolt M8×20 GB/T5783-2000 2
1.7 Guard, terminal, battery SZ804.48.355 1 15 Power switch DK139 1
2 Power switch to starter cable 804C.48.012 1 16 Bolt M8×25 GB/T5783-2000 2
3 Ground cable SZ804.48.038 1 17 Wire sheath, power switch SZ804.48.109 2
4 Guard, terminal, starter SZ804.48.106 1 18 Support weldment, power switch
Z804.48.031 (used when
front-mounted A/C battery)
1
5 Wire sheath 665-3708111A 1
6 Battery 6-QW-120T 1
6-QW-150（optional） 1
7 Nut M8 GB/T6170-2000 2
8 Washer 8 GB/T93-1987 6
9 Washer 8 GB/T97.1-2002 6

1 Harness (RR, LH) SZ904.48.022-2 1 4 Cable tie 885112712/1.75.488 10
2 Harness (RR) SZ804.48.023-3 1 5 Harness (FR, LH) X700.48.021-4 1
3 Main harness SZ804.48B.020-4 1 6 Cab harness SZ804.48B.024-2 1
SZ804.48D.020-4(for
equipped with
pre-heater)
1 7
Screw M5×16 GB/T822-2000
2
8 Washer 5 GB93-97 2
9 Cover, insulation pad 4998891/1.75.480 1
10 Insulation pad 4998892/1.75.494 1
11 Fusible link SZ804.48B.026 1

1 Combination headlight (RH) 700.48.031-1 1 7 Combination taillight (LH) Z-HX180-E(L)/12 1
1.1 Bulb, high beam & low beam H1 12V 55W 1 for each 8 Bolt M6×20 GB/T5783-2000 4
2 Combination headlight (LH) 700.48.030-1 1 9 Bracket, reflector SZ804.48.111-1 2
Nut M6 GB 6177-86 6 10 Reflector LHF-SQ-011 2
3 Signal light (FR, RH) Z-QX110×70－E（R）/12 1 11 Nut M6 GB 6177-86 4
3.1 Bulb, turn light 1141 12V 21W 1 12 License light T41-3210（optional） 2
3.2 Bulb, position light (FR) 89 12V 5W 1 13 Bolt M5×16 GB/T822-2000 2
4 Signal light (FR, LH) Z-QX110×70－E(L）/12 1 14 Washer XD103 1
5 Rectangular work light WFD2020-1 4 15 Screw M6×16 GB/T818-2000 2
5.1
Bulb H3 12V 55W
1 for each 16
Revolving caution light
(optional)
LTD153A/12
1
6 Combination taillight (RH) Z-HX180-E(R)/12 1
6.1 Bulb, turn light 1141 12V 21W 1 for each
6.2 Bulb, position light (RR) 89 12V 5W 1
6.3 Bulb, brake light 1141 12V 21W 1
