Description

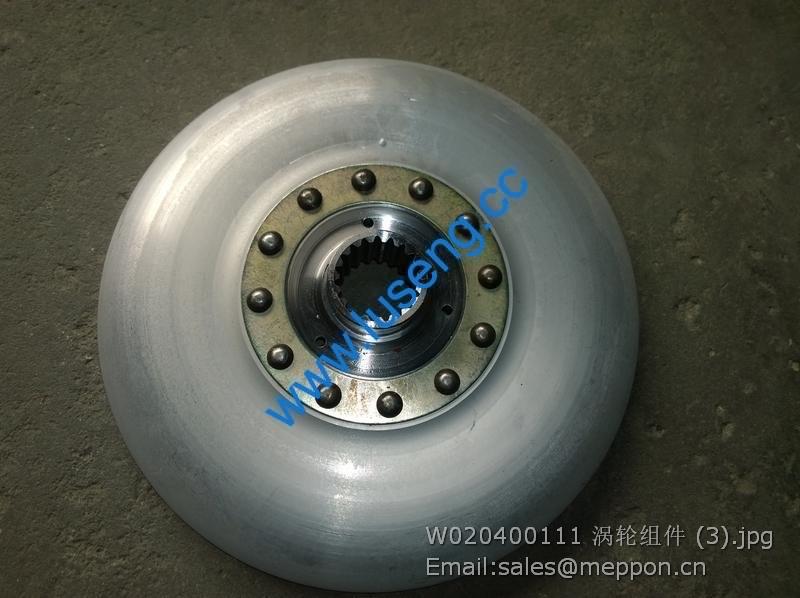

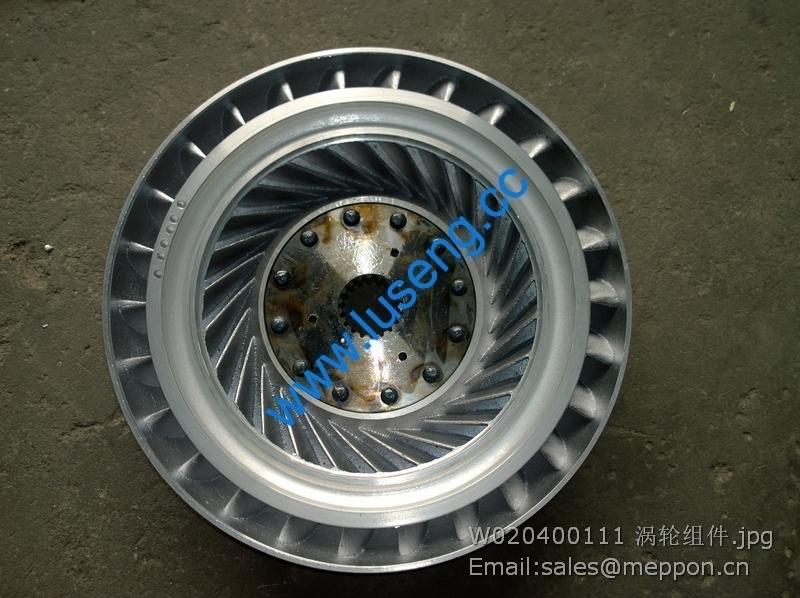

W020400111 SEM CONVERTER TURBINE
1 Limit screw 5129031/1.33.244 1 13 Handle assembly 5136799/1.80.266 1
2
Washer, external drive link, leadout
device
5129024/1.33.229 1 14
Tapping screw
ST4.2×25-F-H
GB/T845-1985 1
3 Limit fork, control, leadout device 885129032/1.33.245 1 15 Screw M6×14-Zn.D GB/T818-2000 2
4 Stop screw, drive link 5129023/1.33.228 1 16 Ball socket 4998311/1.80.255 2
5
Rectangular cross-section seal ring
14×20×1.5
10280060/14607 1 17 Ball socket 5109058/1.80.254 1
6
Inner drive link unit, leadout device
control
5129021/1.33.222A 1 18 Washer 6-Zn.D GB/T7244-1987 2
7 Slide block, control, leadout device 885118105/1.33.237 1 19 Nut M6-Zn.D GB/T6170-2000 2
8 Joystick, leadout device SZ804.42A.101 1 20 Outer lever unit with bush 5129875/1.33.234A 1
9 O-sealing ring 2.62×15.88 559983/1.80.232 1 20.1 Bushing, shaft, drive link 5129030/1.33.238 1
10 Elastic cylindrical pin 5×28 BZ/JHX-SZ 1 20.2 Bushing, joystick 5129442/1.80.268 2
11 Washer 10-Zn.D GB/T97.1-2002 2 20.3
Outer lever weldment,
leadout device
5129874/1.33.234 1
12 Pin 2×18-Zn.D GB/T91-2000 2 21
Return spring, control lever,
leadout device
5129033/1.33.246 1
22 Retainer ring 14 GB/T894.1-1986 1
23 O-ring 1.78×12.42 14453180/14618 1
1 Propeller shaft (FR) LX954.42.102 1 6 Oil seal SZ804.42.504 2
2 Sleeve (FR), propeller shaft 4997313SZ/1.38.545 2 7 Bearing 6008E GB/T276 1
3 Shim, sleeve 2.2mm 4997301/1.38.524 As required 8 Bolt M12×1.25×40 GB/T5786-2000 2
Shim, sleeve 2.5mm 4997302/1.38.524 As required 9 Washer 12-Zn.D GB/T93-1987 2
Shim, sleeve 2.8mm 4997303/1.38.524 As required 10 Support, propeller shaft SZ804.42.501 1
Shim, sleeve 3.0mm 4997304/1.38.524 As required 11 Propeller shaft (RR) LX954.42.103 1
Shim, sleeve 3.3mm 4997305/1.38.524 As required 12 Retainer ring 68 GB/T893.1-1986 2
Shim, sleeve 3.7mm 4997306/1.38.524 As required 13 Guard, propeller shaft LX954.42.101 1
Shim, sleeve 4.0mm 4997307/1.38.524 As required 14 Washer 8-Zn.D GB/T97.1-2002 14
Shim, sleeve 4.3mm 4997308/1.38.524 As required 15 Washer 8-Zn.D GB/T7244-1987 14
4 Retainer ring 29 11067776/12245 5 16 Bolt M8×14-Zn.D GB/T5783-2000 14
5
Intermediate sleeve, propeller shaft SZ804.42.503
1 17
Cover plate, support, propeller
shaft
SZ804.42.502
2
18 Oil cup GB1152 1
19 Relief valve 14649/13411117 1
1 Drain plug, brake 5117615/1.65.344 2
2 Bleeder screw M12×1.25×24 5106843/1.65.332 2
3 Inner seal ring , piston, brake 5105534/1.65.330 2
4 Piston, brake 5110135SZ/1.65.325 2
5 Driven disc assembly, brake 8A4997208/1.65.327A 2
6 Outer seal ring , piston, brake 5105536/1.65.331 2
7 Lining plate, brake 5110138/1.65.370 2
8 Spring 5120761/1.82.431 6
9 Dowel pin 5110094/1.48.050 6
10 Housing brake 5153476SZ/1.48.015 2
11 Dowel pin 10×19.5 5110094/1.48.050 4
