Description

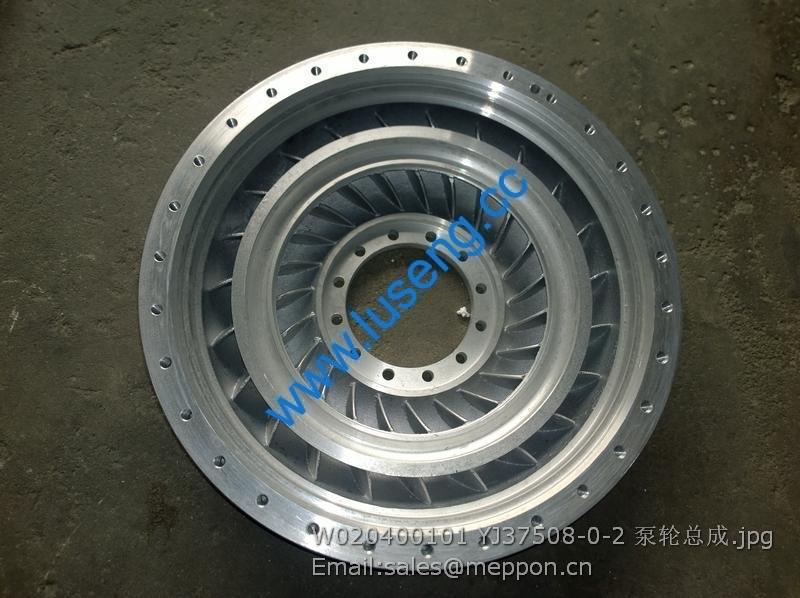

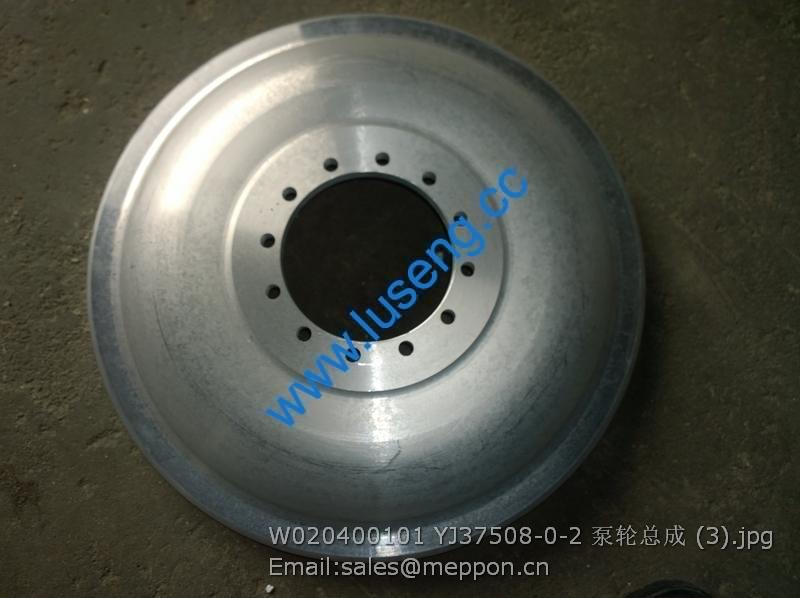

W020400101 YJ37508-0-2 Converter impeller SEM WHEEL LOADER

1 Washer 10-Zn.D GB/T97.1-2002 1 10 Handle assembly 5136799/1.80.266 1
2 Pin 2×20-Zn.D GB/T91-2000 1 11 Spring 580548/1.39.227 1
3 Outer lever and busing unit 5129486/1.80.257 2 12 Elastic cylindrical pin 6×36 BZ/JHX-SZ 1
3.1 Bushing, outer lever 5129442/1.80.268 1 13 Screw M6X16-Zn.D GB/T818-2000 1
3.2 Outer lever, PTO control 5128426/1.80.257 1 14 Ball socket 4998311/1.80.255 1
4 Dowel pin 5150839/1.80.260 1 15 Ball socket 5109058/1.80.254 1
5 Spring 5128251/1.32.230 1 16 Washer 6-Zn.D GB/T7244-1987 2
6 O-ring12.42×1.78 14453180/14618 1 17 Nut M6-Zn.D GB/T6170-2000 2
7 Inner lever, PTO control 5129848/1.80.236A 1 18 Lever, PTO control SZ804.41A.101 1
8 Shift block 884984096/1.80.237 1 19 Lever, PTO control 885134243/1.80.271 1
9 Tapping screw ST4.2×2.5-F-H GB/T845-1985 1 20 Washer 10-Zn.D GB/T7244-1987 1
21 Nut M10×1.25-Zn.D GB/T6173-2000 1

1 Transfer case assembly LX804.42.001-TY 1

2 Bolt M12×1.25×110 GB/T5786-2000 1
3 Housing, leadout device 8A5129778SZ/1.33.002 1
4 Sealing ring 12×18×1.5 10298460/14607 3
5 Pin B12×18 GB/T119-1986 2
6 Bolt M12×1.25×55 GB/T5786-2000 1
7 Composite seal washer 22 GB/T982-1997 1
8 Hexagon head plug M22×1.5 10305174/14530 1
9 Bolt M12×1.25×35 GB/T5786-2000 4

1 Retainer ring 29 GB/T894.1-1986 1 10 Driven shaft, leadout device 5125012SZ/1.33.132 1
2 Retaining plate, oil seal 5109919/1.33.136 1 11 Idler, leadout device 5125011SZ/1.33.110 1
3 Oil seal 30×72×10 5119206/1.33.135 1 12 Spacer, bearing, idler 5123389/1.33.123 1
4 Retainer ring 72 GB/T893.1-1986 1 13 Needle φ7×41 5116735/1.48.172 15
5 Bearing 6306E(306) GB/T276 2 14 Shaft, idler, leadout device 5123387SZ/1.33.112 1
6 Oil baffle disc 584132/1.80.348 1 15 Thrust washer, idler 8A5115930/1.33.122 2
7 Driven shaft, leadout device 5123391SZ/1.33.133 1 16 Elastic cylindrical pin 6×50 BZ/JHX-SZ 1
8 Shifting sleeve 5123388SZ/1.33.116 1
9 Retainer ring, driven gear 5124122/1.33.115 1
