Description

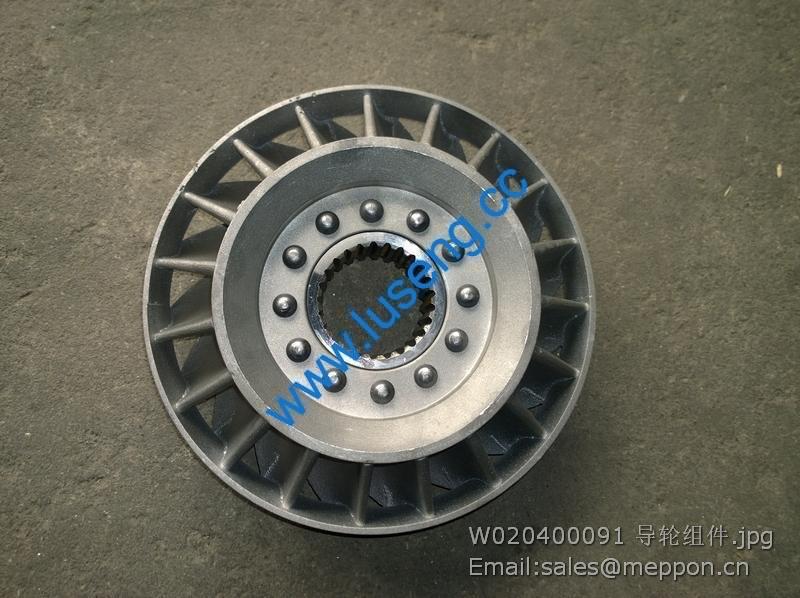

W020400091 Converter stator SEM WHEEL LOADER

31 Hose assembly, steering gear SZ804.40.053 3
32 Hose SZ804.40.505 2
33 Hoop 24 JB3616.1-84 4
34 Oil pump inlet pipe assembly SZ804.40.062 1
35 Washer 16-Zn.D GB/T93-1987 1
36 Bolt M16×80-Zn.D GB/T5782-2000 1
37 Oil pipe clamp 5137954/1.63.832 1
38 Support, oil pipe 5149037/1.63.583 1
39 Steering pump HLCB-D16/12 1
40 O-ring20.29×2.62 14618/14457581 1
41 Bolt M8×28-Zn.D GB5786 2
42 Pad, hose, steering gear SZ804.40.501 1
43 Flange, hose, steering gear 5126690/1.63.875 1
44 Bolt M8×30-Zn.D GB/T5783-2000 3
45 Screw M8×20-Zn.D GB 68-85 1

1 Retainer ring 90 12246/11062476-SZ 1 11 Joystick with handle LX954.41.012-1 1
2 Bearing 6308E(308) GB/T276 2 12 Elastic cylindrical pin 4×24 BZ/JHX-SZ 1
3 Housing unit, PTO SZ904.41.011A 1 13 Pin, joystick 885117036/1.80.153 1
3.1 Support, front bearing, PTO 8A0808052/1.80 1 14 Bolt M16×1.5×45 GB/T5786-2000 4
3.2 Dowel pin 10×15 10839710/12507 2 15 Shift fork 8A5109744/1.80.155 1
3.3 Housing, PTO SZ904.41.101A 1 16 O-ring12.5×2.65 GB/T3452.1-82 1
4 Retainer ring 35 GB/T894.1-1986 1 17 Elastic cylindrical pin 5×32 BZ/JHX-SZ 1
5 Bushing, PTO shaft 880808057/1.80 1 18 Slider, shift fork 8B0808053/1.80 1
6
1000/540rpm PTO driving
shaft
880808060SZ/1.80 1 19 Steel ball 11/32G106 GB/T308-84 1
7 Double speed handle SZ804.41A.507 1 21 Washer 12-Zn.D GB/T93-1987 4
8
Rectangular cross-section seal
washer 22×28×1.5
10263460/14607 1 22 Bolt M12×1.25×40 GB/T5786-2000 4
9 Oil dipstick assembly 5134687/1.80.185A 1 23 Bearing NUP307E GB/T276-1994 1
10 Bolt M16×1.5×90 GB/T5785-2000 6 24 Nut, shaft, driven gear 5122985/1.28.149 1
25 Gear retainer, 1,000 r/min 880808056/1.80 1
26 Inner bushing, driven gear 5101537/1.28.132 2
27 Driven gear, 1000 r/min 880808061A/1.80 1

28 Retainer, shift collar, PTO 885129512SZ/1.80.116 1 37 Jacket, shaft, PTO SZ1204.41.101 1
29 Shift collar, PTO 8A5129513SZ/1.80.117 1 38 Bolt M8×25-Zn.D GB/T5783-2000 4
30 Driven gear, 540 r/min 880808062A/1.80 1 39 Washer 8-Zn.D GB/T7244-1987 4
31 Gear retainer, 540r/min SZ904.41.104 1 40 Guard unit, shaft, PTO SZ804.41.161 1
32 Oil seal 68×90×11.5 SZ904.41.106A 1 41 P.T.O Shield, oil seal 4994659/1.80.151A 1
33 Driven shaft, PTO SZ904.41.105 1 42 540/1,000 r/min PTO sign SZ804.41.805 1
34 Nut M12×1.25-Zn.D GB/T889-86 3 43 Bearing 6309E(309) GB/T276 1
35
1000rpm PTO shaft
head(21-spline)
4983660/1.80.107A 1 44 Retainer ring 100 12246/11062975-SZ 1
36
540rpm PTO shaft head
(6-spline)
5140119/1.80.107B 1 45 Bolt, shaft, PTO 44012300/1.80.133 3
46 PTO shaft sliding sleeve 5109812SZ/1.80.110 1
47 Bearing NJ308E GB/T283 1
48 Rivet 3.2×9, screen GB12618 2
