Description

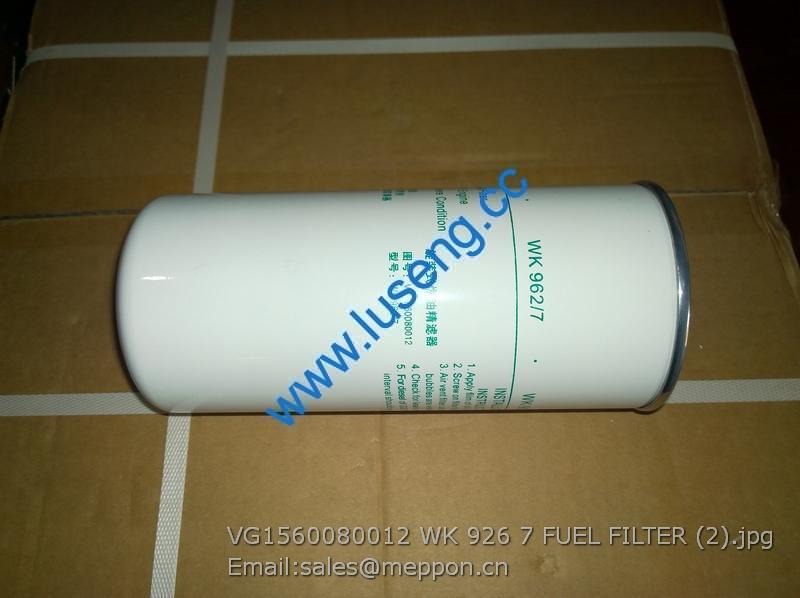

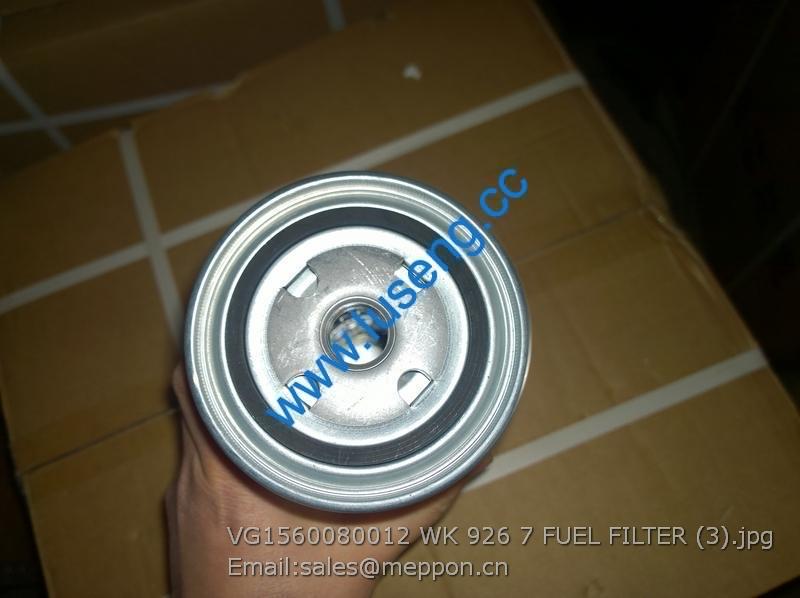

VG1560080012 WK 926 7 FUEL FILTER SINOTRUCK PARTS

1 Differential assembly 1.32.430/5117236SZ 1 1.8 Dowel, shaft, planet gear 4991719/1.32.428 1
1.1 Thrust washer, side gear 1.5mm 497235/1.32.424 2 1.9 Carrier, differential 884997231/1.32.404 1
Thrust washer, side gear 1.6mm 497236/1.32.424 2 Bearing 32013E(2007113) GB 297 1
Thrust washer, side gear 1.7mm 5138267/1.32.424 3 Screw M10×1.25×30 14233624/10357 12
Thrust washer, side gear 1.4mm 5144801/1.32.424 4 Washer 0.5mm 4991682/1.32.022
As
required
Thrust washer, side gear 1.8mm 5144802/1.32.424 Washer 0.2mm 4991683/1.32.022
As
required
1.2 Thrust washer, planetary gear 4991658/1.32.425 2 Washer 0.15mm 4991684/1.32.022
As
required
1.3 Pinion, differential SZ804.38.415 2 5 Bearing seat, differential 4991470SZ/1.32.003 2
1.4 Shaft, pinion, differential 8A4991652SZ-2/1.32.416 1 6 O-sealing ring 15.54×2.62 14457280/14618 1
1.5 Side gear (RH), differential 885149551SZ/1.32.413 1 7 Shaft, fork, differential lock 5123685/1.32.628 1
1.6 Side gear (LH), differential 884997230SZ/1.32.414 1 8 Spring, fork, differential lock 5114581/1.32.629 1
1.7 Bushing, planetary gear COB010 32×28×25×30) 2 9 Elastic cylindrical pin 6×40 BZ/JHX-SZ 1
10 Fork, differential lock 5113659/1.32.625 1
11 Differential lock unit 5117245/1.32.608A 1
Sleeve, differential lock 1.32.608/5117244 1
Lock pin 12×35 1.32.610/4991654 8
12 Bearing 30211E(7211E) GB 297 1

1 Pin (FR) 5110601/1.32.731 1 15 Washer 10-Zn GB/T93-1987 3
2 Clevis, differential lock control 5127347/1.32.724A 1 16
Adjuster shim, disengaging mechanism,
differential lock
5123691/1.32.739
As
requir
ed
3 Washer 10-140 HV-Zn GB/T848-2002 2 17 Nut M10×1.25 GB/T6173-2000 1
4 Pin 3.2×22 GB/T91-2000 2 18 Link, differential lock control SZ804.38.101 1
5 Pin, pedal, differential lock 5125952/1.32.729 1 19
Mechanical disengaging mechanism,
differential lock
1.32.745/5123692-1S
Z
1
6 Pin 3.2×32 GB/T91-2000 2
7 Washer 14-140 HV GB/T848-2002 3
8 Spacer, pin, pedal 5125953/1.32.730 2
9 Pedal, differential lock SZ804.38.502 1
10 Elastic cylindrical pin 4×24 BZ/JHX-SZ 1
11 Arm unit, pedal, differential lock 5125948SZ/1.32.721 1
12 Shaft, Pin 10×32 GB882-86 1
13 Clevis (RR) 5112921/1.82.226 1
14
Hexagon socket head cap screw
M10×1.25×30
GB/T70.1-2000 3

Mechanical disengaging
mechanism, differential lock
1.32.745/5123692-1SZ

1 Retainer ring 16 GB 894.1-86 2
2 Control rocker, differential lock 88512123/1.32.722 1
3
Return spring, rocker,
differential lock
5125755/1.32.753 1
4
Bushing, disengaging
mechanism
5123694/1.32.747 1
5
Support, disengaging
mechanism, differential lock
5123689SZ/1.32.735 1
6 Control pin, differential lock 5123690/1.32.737 1
