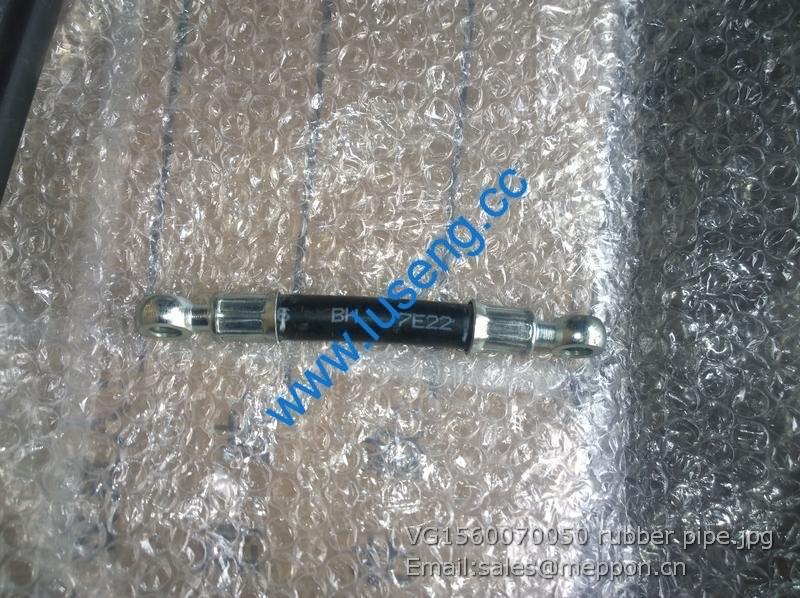

VG1560070050 rubber pipe SINOTRUCK
1 Fork, Ⅲ/Ⅳ 5127388/1.29.011 1 6 Spring 884994342/1.29.031 2
2 Shift block 8A5129522/1.29.004 1 7 Steel ball 11/32 GB/T308-84 2
3 Spiral spring pin 5×32 13907770/12215 3 8 Interlock pin 5110264/1.29.041 1
4 Slotted plug M12×1.25 10152314/14548 1 9 Fork, I/II 5127387/1.29.010 1
5 Main shift slider 5117500/1.29.017 2
1
Locking screw, gear shift fork SZ804.37.607
1 13
Tapping screw
ST6.3×22-C-H-Zn.D
GB/T845-1985
6
2 Mild steel wire TA1.2×180 GB/T343-1994 2 14 Handle, main shift lever SZ804.37.109A 1
3 Spiral spring pin 5×30 13907670/12215 1 15 Nut M10-Zn.D GB/T6175-86 1
4 Drive link, main transmission SZ804.37.601 1 16 Main shift lever unit SZ804.37.050 1
5
Shifting block, outer drive,
main transmission
SZ804.37.605
1 17
Joystick (LWR), main
transmission
SZ804.37.301
1
6 Support unit 5127961/1.29.014 1 18 Return spring, control lever 5127962/1.29.106 1
6.1
Support, main shift lever 5127960/1.29.104
1 19
Spacer ring, spring, drive
link
5132334/1.32.293
1
6.2 Stop pin 5125535/1.21.067 2 20 Head, main shift lever SZ804.37.602 1
7 Bolt M8×22-Zn GB/T5783-2000 3 21 Bolt M8×16- Zn.D GB/T5783-2000 1
8 Seal, main control lever 884984223/1.29.195 1 22 Washer 8 GB/T93-1987 4
9 Retainer ring 40 11059976/12246 1 23 Washer 8 GB/T96-85 1
10 Gasket, cover, shift lever 5133521/1.29.121 1 24 Sleeve, main shift lever 5129575/1.29.119A 1
11
Fixing ring, cover, shift lever 5132547SZ/1.29.120
1 25
Locking screw, gear shift
fork
15.37.175
1
12 Cover, main shift lever 5132031/1.29.119B 1
1 Driving shaft unit LX954.37.021 1 15.1 Slotted plug 880803204/1.32 1
2 Sliding gear, N-R 885145164SZ/1.32.106 1 16 Shift collar, Hi-Lo 5125010SZ/1.32.188 1
3 Thrust spacer, driving shaft 5109683/1.32.135 1 17 Retainer, shift collar 5125009SZ/1.32.169 1
4 Driving gear, medium range 885125013SZ/1.32.105 1 18 Driven gear, low range 5125007/1.32.117514 1
5 Needle bearing 42×47×27 5109747/1.32.150 2 19 Driven gear, R 5165SZ/1.32.118 1
6 Bearing 6212E(212) GB/T276
1
20
Bearing (RR), shaft, bevel
pinion 45×100×38.25
5138664/1.32.139 1
7 Thrust ring 5117076/1.32.134 1 21 Bevel gear pair 5138663SZ/1.32.130 1
8 Retainer ring 110 GB/T893.1-86 1 21.1 Shaft, bevel pinion 5138661SZ/1.32.103 1
9 Bearing 6205E(205) GB/T276 1 21.2 Bevel gear wheel 5138662SZ/1.32.108 1
10 Gasket, reverse shaft 880803205/1.32.112 2 22 Retainer ring 42 1068976/12245 1
11 Washer 10 GB/T93-1987 1 23 Doroid, driven gear, R 5127762/1.32.173 1
12 Retainer ring 52 GB/T893.1-86
1
24
Lock nut, shaft, bevel
pinion M45×1.5
885117744/1.32.148 1
13 Idle gear, R 5145166SZ/1.32.113
1
25
Washer, nut, shaft, bevel
gear
5119261/1.32.146 1
14 Reverse shaft 8A5153087/1.32.112 1 26 Driven gear, medium range 5125005SZ/1.32.111 1
15 Thread lock pin 885152965/1.32.124 1
