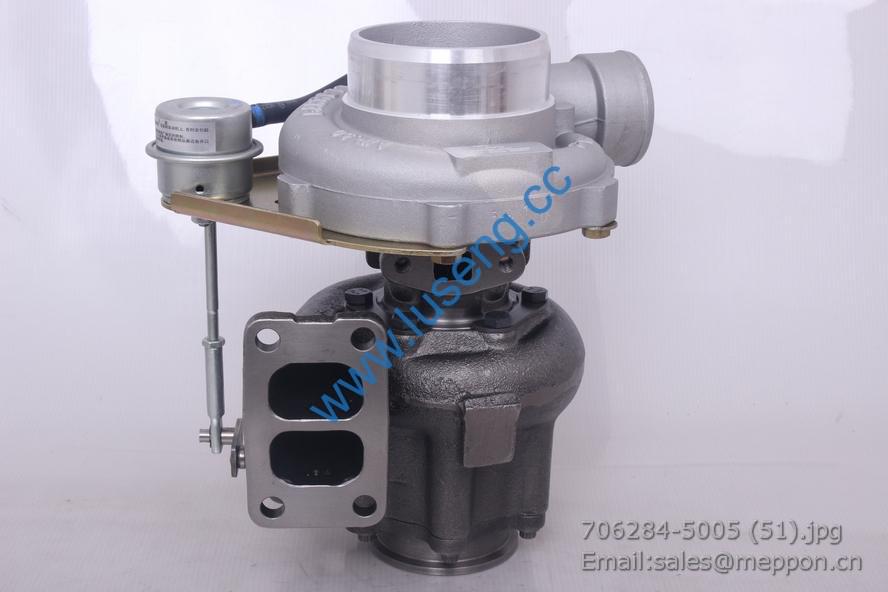

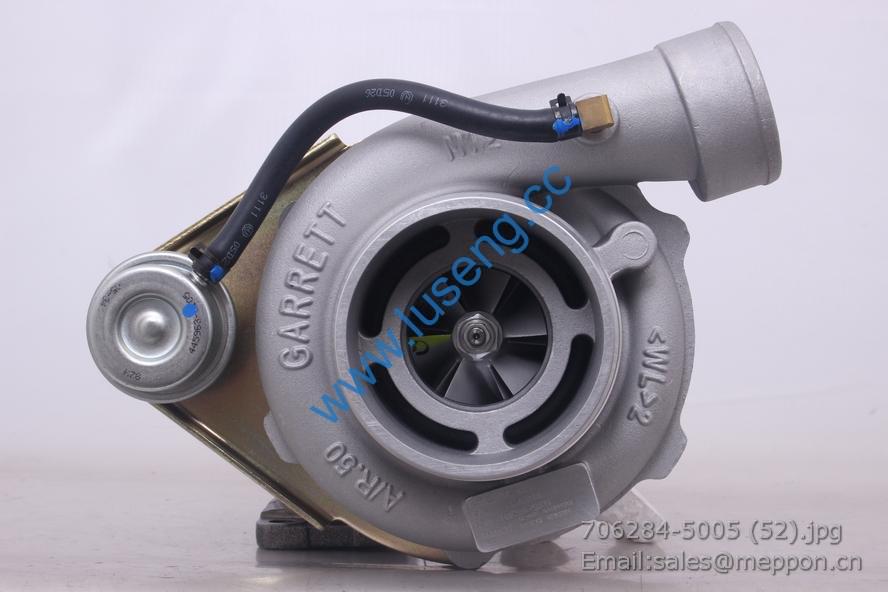

turbocharger 706284-5005S 1118010-1S_CKA3 1118010-1J_CKA3 1118010-1H_CKA3
1 530-1002026C 气缸套 Cylinder liner 4
2 150-1002011 定位套 Locating sleeve 2
3 150-1002021 碗形塞片 Bowl type plug 2
4 150-1002022A 主油道螺塞 Main oil galley screw plug 3
5 530-1002134 凸轮轴衬套Ⅱ Camshaft bushing Ⅱ 4 易损件 EWP
6 Q72270 碗形塞片 70 Bowl-type plug 1
7 150-1002016 定位销 Locating pin 2
8 YC209-100125FL 油封 100X125 Oil seal 100X125 1 易损件 EWP
YC209-B100125PL 油封 100X125 Oil seal 100X125 1 选装 Optional
YC209-C100125PL 油封 100X125 Oil seal 100X125 1 选装 Optional
9 Q150B0825 螺栓 M8X25 Bolt M8X25 8
10 Q40308 垫圈 8 Washer8 8
11 530-1002501 曲轴后油封座 Crankshaft rear oil seal seat 1
12 150-1002063B 后油封座垫片 Rear oil seal seat gasket 1 易损件 EWP
13 E0400-1002015B 气缸体 Cylinder block 1
E0400-1002015B* 气缸体组件
Cylinder block assembly
1
包含(including)3、13、15、18、
29、30、31
14 Q61902 螺塞 NPT 1/4 Screw plug NPT 1/4 1
15 150-1002019 碗形塞片 Bowl type plug 6
16 530-1002028 定位销 Locating pin 1
17 150-1002013A 碗形塞片 Bowl type plug 3
18 530-1002120 凸轮轴衬套 Camshaft bushing 1 易损件 EWP
19 G6000-1002306 惰齿轮轴 Idler gear shaft 1
20 530-1002304 惰齿轮轴螺栓 Idler gear shaft bolt 1
21 150-1002043A 惰齿轮衬套 Idler gear bushing 1 易损件 EWP
22 150-1002041A 惰齿轮 Idle gear 1
23 150-1002045 惰齿轮防磨板 Idler gear anti-friction plate 1
24 150-1002025 定位销 Locating pin 1
25 E0400-1002170 喷嘴焊接件 Nozzle weldment 1
26 430-1002163 垫圈 Washer 1
27 G0100-1002162A 过油螺栓 Hollow bolt for oil 1
28 150-1002024 主轴承盖 Main bearing cap 3
29 150-1002023 止推主轴承盖 Main thrust bearing cap 1
30 150-1002014 主轴承盖(后) Main bearing cap (rear) 1
31 530-1002017 主轴承盖螺栓 Main bearing cap bolt 10
32 6105Q-1002022 铝堵 φ10X10 Aluminium plug 1
1 530-1002204A 齿轮室盖板垫片 Gear housing cover plate gasket 1 易损件 EWP
2 Q150B0818TF2 螺栓 M8×18 Bolt M8×18 4
3 2530-1002033 齿轮室盖板 Gear housing cover plate 1
4 2530-1002032 齿轮室垫片 Gear housing gasket 1 易损件 EWP
5 530-1002028 定位销 Locating pin 1
6 2530-1002201 齿轮室 Gear housing 1
7 Q40108 垫圈 8 Lock Washer 8 8
8 Q40308 垫圈 8 Lock Washer 8 8
9 Q150B0865 螺栓 M8X65 Bolt M8X65 7
10 2530-1002039 空压机齿轮盖垫片 Gear cover washer, air compressor 1 易损件 EWP
11 1531-1002100B 张紧轮支架焊接件 Tension pulley bracket weldment 1
12 186-1002056A 调节螺栓 Adjusting bolt 1
13 Q40310 垫圈 10 Washer10 1
14 530-1002110A 张紧轮部件 Tension pulley parts 1
15 Q40110 垫圈 10 Washer10 15
16 Q40310 垫圈 10 Washer10 15
17 Q150B1065 螺栓 M10X65 Bolt M10X65 1
18 Q150B1075 螺栓 M10X75 Bolt M10X75 3
19 2530-1002038 空压机齿轮盖 Gear cover, air compressor 1
20 Q150B1016 螺栓 M10X16 Bolt M10X16 2
21 530-1002037 上止点指针 TDC pointer 1
22 Q150B1095 螺栓 M10X95 Bolt M10X95 2
23 Q150B1022 螺栓 M10X22 Bolt M10X22 4
24 Q150B0890 螺栓 M8X90 Bolt M8X90 1
25 Q150B1078 螺栓 M10X78 Bolt M10X78 3
26 E0209-1002110 喷油泵齿轮盖焊接件 Gear cover weldment, Injection pump 1
