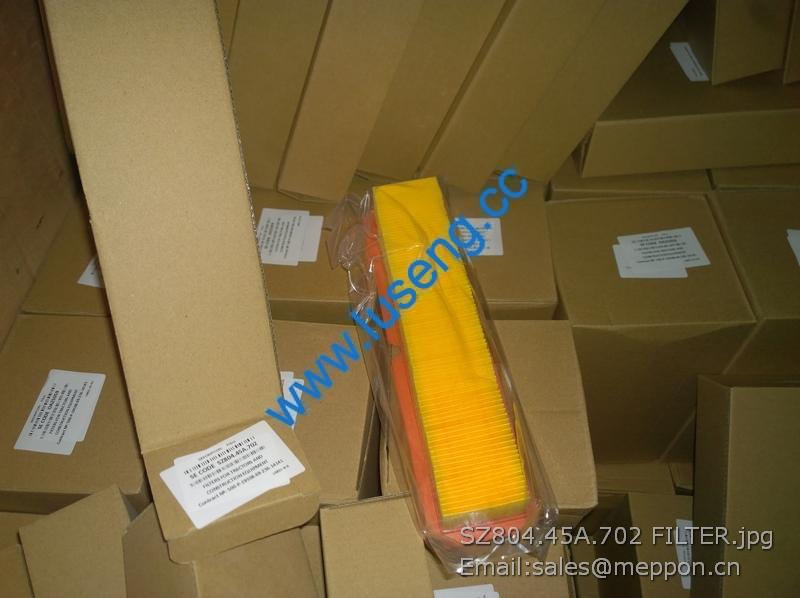

SZ804.45A.702 FILTER YTO TRACTOR PARTS

1 Adjusting nut M100×2×13 4996750/1.41.008 2
2 Bolt M10×1.25×20 GB/T 5786-2000 2
3 Locking plate, adjusting nut 562659/1.41.032 2
4 Stop plate, adjusting nut 4996751/1.41.015 2
5 Locking bolt M12×1.25×35 14274634/10357/04 10
6 Support unit, bevel drive 5144526/15 1
6.1 Bearing cap, support, bevel drive 4996748/1.41.005 4
6.2 Locking bolt M12×1.25×70 14275334/10357/04 2
6.3 Dowel pin 5×15 4966244/1.41.016 3
6.4 Support, bevel drive 5144525/15 1
6.5 Anti-friction ring (RR) 5136119/15 1
6.6 Bush, support, bevel drive 5136120/15 1

Hub reductor assembly (LH) 1 12 Bolt M12×1.25×30 14274534/10352/04 6
Hub reductor assembly (RH) 1 13 Oil cup M10×1 GB 1152-79 2
1
Oil seal, drive fork shaft
42×62×17
8A5133799/1.41.539
1 14
Circlip for shaft 30 5140018/20
2
2 Bushing, steering knuckle 5104199/1.40.228 1 15 Sun gear 5137107/20 1
3 Limit Bolt M12×1.25×42 5126628-FT/1.40.211 1 16 Baffle ring, ring gear 4997571/1.41.549 1
4 Spacer 5148495-FT/12 1 17 Support, ring gear 5142047/20 1
5 Steering knuckle (LH) 5142230 /12 1 18 Ring gear 5108749/1.41.543 1
Steering knuckle (RH) 5142232 /12 1 19 Nut, support, ring gear 5142020/12 1
6 Hub oil seal 165×190×17 8A5137109/12 1 20 Planet carrier unit 5137724/20 1
7 Bearing, wheel hub (FR) 5136951/12 2 20.1 Planet carrier 5137689/20 1
8 Hub, traction wheel (FR) 8A5142013/13 1 20.2 Shaft, planetary gear 4997509/1.41.547 3
9 Dowel pin 12×20 4985063/1.21.067 2 20.3 Bearing retainer, planet gear 4997510/1.41.552 6
10
Adjusting shim 0.15mm 5137457/12 As
required
20.4
Needle bearing 5101693/1.41.546
3

Adjusting shim 0.20mm 5137458/12 As
required
20.5
Planetary gear 5108747/1.41.545
3

Adjusting shim 0.30mm 5137460/12 As
required
21
Composite seal washer22 031117010010
1
11 Kingpin, steering knuckle 5137239/12 2 22 Plug M22×1.5 10305114/14530 1
23 Bolt M10×1.25×30 14233634/10357/04 12

Tie rod assembly 1

1 Locking nut M18×1.5 12576014/10125 2
2 Ball joint assembly 02012501A007 1
3 Thin lock nut M24×1.5 10726914/10114 1
4 Tie rod unit 02011601A011 1

Steering cylinder assembly 804.31.017 15 Bolt M6×16 GB/T 5783-1986 1
1 Retainer ring 20 11066870/12245 1 16 Spring washer 6 GB/T 7244-1987 1
2 Washer, pin, cylinder 5100730/1.63.589 2 17 Oil pipe clamp 1.63.583/4999554 1
3 Pin, cylinder 5111572/1.63.584 1 18 Support plate 1.63.22/5138294 1
4 Oil cup M10×1 GB 1152-79 1 19 Steering oil pipe assembly (LH) 5145031/22 1
5 Plastic cable tie 031114010088 1 20 Steering oil pipe assembly (RH) 5142238/22 1
6 Jacket, 804 cylinder 031701000040 1
7 Hoop (Φ64~Φ76) JK-3X 1
8 Steering cylinder 5134221/22 1
9 Composite seal washer14 JB 982-77 4
10 Hollow bolt M14 10184314/14256 2
11 Pin assembly, cylinder 5142236/22 1
12 Washer 8 GB 7244-87 1
13 Bolt M8×16 GB 5783-86 1
14 Washer, pin, cylinder 1.63.591/5111576 1
