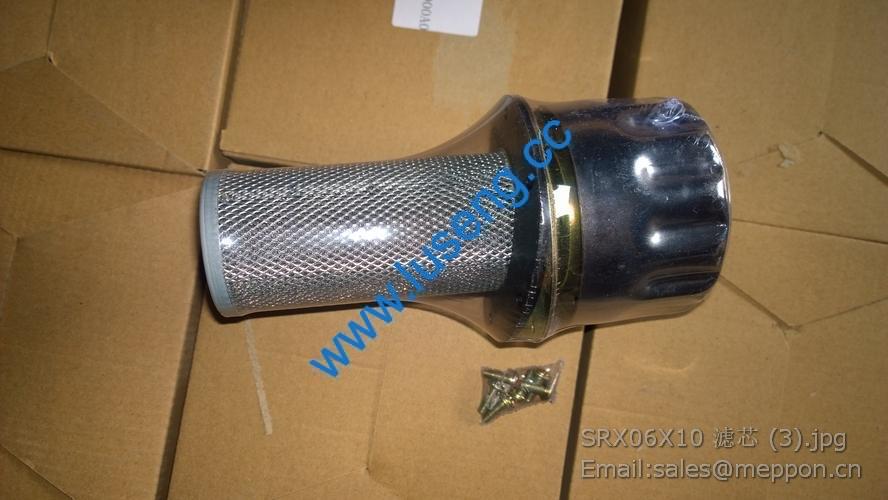

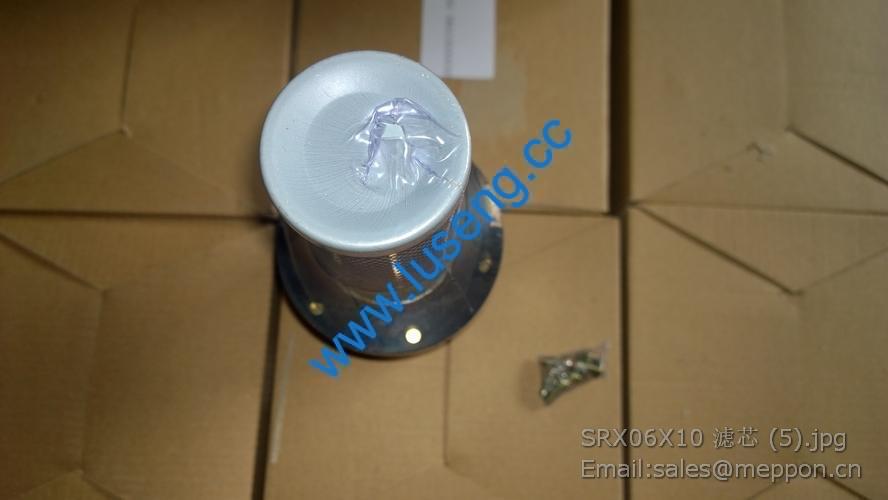

SRX06*10 FILTER

1 D30-1007100 摇臂轴部件 Rocker arm shaft
part
1
2 D30-1007036 六角头螺栓 Hexagon head bolt 4
3 A30-1007092 垫圈 Washer 4
4 D30-1007081 推杆 Pushing rod 8 易损件 EWP
5 6105Q-1007091A 挺杆 Tappet 8 易损件 EWP
6 D30-1003111B 进气门 Intake valve 4 易损件 EWP
7 430-1007019 进气门座 Intake valve seat 4 易损件 EWP
8 6105Q-1007022 气门外弹簧 Valve outer spring 8 易损件 EWP
9 6105Q-1007023 气门内弹簧 Valve inner spring 8 易损件 EWP
10 430-1007018 气门导管 Valve guide pipe 8 易损件 EWP
11 430-1007016A 气门杆油封 Valve rod oil seal 8 易损件 EWP
12 D30-1003116 气门弹簧上座 Valve spring upper
seat
8 易损件 EWP
13 150-1007021E 气门锁夹 Valve locking clip 16 易损件 EWP
14 D30-1003103B 排气门 Exhaust valve 4 易损件 EWP
15 430-1007021 排气门座 Exhaust valve seat 4 易损件 EWP
16 6105Q-1007073 接头螺栓 Connector bolt 2
17 Q/YC149-8 复合式密封垫圈 8 Compound seal
washer 8
4 易损件 EWP
18 D30-1007075A 油管焊接件 Oil pipe weldment 1

1 Q1201035 螺柱 M10×35 Stud M10×35 4
2 Q40110 垫圈 10 Washer 10 4
3 Q40310 垫圈 10 Washer 10 4
4 Q340B10 螺母 M10 Nut M10 4
5 Q/YC198-20 螺塞 M20×1.5 Screw plug 2
6 Q/YC149-20 复合式密封垫圈 20 Compound seal washer 20 2
7 1530-1008105C 进气接管垫片 Intake connecting pipe gasket 1
8 D0705-1008101B 进气管 Intake pipe 1
9 Q150B0870 螺栓 M8×70 Bolt M8×70 4
10 Q40108 垫圈 8 Washer 8 4
11 Q40308 垫圈 8 Washer 8 4
12 Q150B0832 螺栓 M8×32 Bolt M8×32 8
13 Q40108 垫圈 8 Washer 8 8
14 Q40308 垫圈 8 Washer 8 8
15 Q/YC198-10 螺塞 M10X1 Screw plug M10X1 1
16 Q/YC149-10 复合式密封垫圈 10 Compound seal washer 10 1
17 1D30-1008011 进气管垫片 Intake pipe gasket 1
18 430-1008027 排气管垫片 Exhaust pipe gasket 4
19 J45D1-1008226 螺栓套 Bolt sleeve 8
20 Q1840855TF2 螺栓 M8X55 Bolt M8X55 8
21 D0200-1008204 排气管 Exhaust pipe 1
22 E0300-1008102B 进气接管 Intake connecting pipe 1

1 Q/YC1820820 螺栓 M8X20 Bolt M8X20 22
2 Q40308 垫圈 8 Washer 8 22
3 6105Q-3509013 垫圈 Washer 18
4 D0302-1009040C 油底壳组件 Oil sump subassembly 1
5 6105Q-1009030 放油塞总成 Oil drain plug assembly 1
6 Q/YC149-27 复合式密封垫
圈 27
Compound seal washer 27 1
7 383-1002082 尼龙管 Nylon pipe 1
8 151-1002082 管夹 Pipe clip 1
9 Q67616 环箍 Loop hoop 2
10 D0305-1009050 油标尺焊接件 Oil dipstick weldment 1
11 155-1009043B 油标尺座 Oil dipstick seat 1
12 D0305-1009046 油标尺软套管
支架
Oil dipstick teleflex
bracket
1
13 Q340B08 螺母 M8 Nut M8 1
14 Q40308 垫圈 8 Washer 8 2
15 Q40108 垫圈 8 Washer 8 2
16 Q150B0820 螺栓 M8X20 Bolt M8X20 2
17 D30-1009011C 油底壳垫片 Oil sump gasket 1
18 D30-1009102A 垫圈 Washer 7
