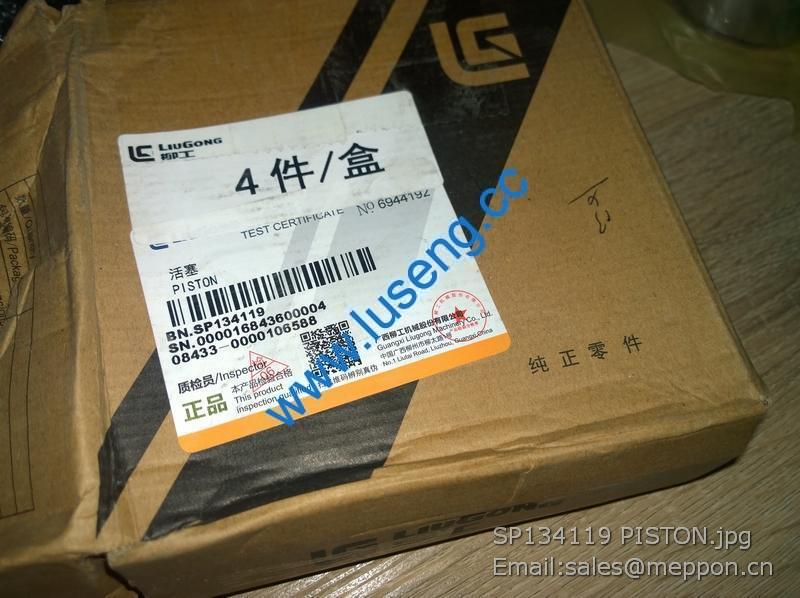

SP134119 PISTON LIUGONG FY10754L.00004

1 Bolt M18×1.5×65 14272034/10357/04 4
2 Support unit (FR), rocking pin, front axle 5140452/1.21.138A 1
2.1 Oil ring Z 1/8 in YTQ016-87 2
2.2 Grease relief valve 0.5～1 13411117/14649 1
2.3 Support (FR), rocking pin, front axle 5140451/1.21.138 1
2.4 Dowel pin 10 10837710/12506 4
2.5 Spacer(FR), rocking pin, front axle 5101112/1.21.194 1
3.1 Mounting stud, front carrier 885151253/1.21.126 4
3.2 Mounting stud, front carrier 5151252/1.21.126 2
4 Washer 16×34×4.4 11200274/10187 6
5 Nut M16×1.5 10790524/10112 6
6 Hollow dowel pin 5130081/1.21.193 2
7 Bracket (FR) LX804.30A.101 1
8 Support unit (RR), rocking pin, front axle 5140454/1.21.139A 1
8.1 Spacer(RR), rocking pin, front axle 5129385/1.21.195 1
8.2 Support (RR), rocking pin, front axle 5140453/1.21.139 1
9 Oil seal 99×115×7.5 5140455/1.21.142 2
10 O-sealing ring 53×5.3 GB/T3452.1-2000 1

Front axle assembly SZ804.31I.001 1 13 Oil seal FB 40×62×10 5136002/1.41.538 2
1 Plug M22×1.5 10305114/14530 2 14 Collar, oil seal, half axle 4996762/1.41.537 2
2 Composite seal washer22 JB982-77 2 15 O-sealing ring 80×2.62 4966231/1.40.023 2
3 Housing unit, front axle 5144522/11 2 16 Cardan shaft assembly (RH) 8A5142040/20 1
3.1 Dowel pin 5×15 4966244/1.41.016 1 16.1 Long fork shaft (RH) 8A5142040-1/20 1
3.2 Rocking pin, front axle 5140017/11 1 16.2 Spider 8A5142040-4/20 2
3.3 Housing, front axle 5144521/11 1 16.3 Double fork 8A5142040-2/20 1
3.4 Dowel pin 10×20 4988170/1.40.021 1 16.4 Retainer ring 885142040-6/20 8
4 Limit screw M12×1.25×55 5100194/1.40.045 2 16.5 Short fork shaft 8A5142040-3/20 1
5 Nut M12×1.25 14048814/10128 2 17 Cardan shaft assembly (LH) 8A5142043/20 1
6 Breather plug assembly 13413290/24628 1 17.1 Long fork shaft (LH) 8A5142043-1/20 1
7 Ball pivot pair, kingpin 5119699/1.40.240 4
8 Sealing ring 5121471/1.40.232 4
9 Retainer ring 35 11068376/12245 2
10 Bearing seat, half axle 4996755/1.40.038 2
11 Retainer ring 62 11061076/12246 4
12 Bearing 6007 (35×62×14) GB/T 276-1994 2

1 Locking nut 5143242/16 1 12 Differential assembly 5117219/1.41 1
2 Collar, oil seal 4997451/1.41.143 1 12.1 Thrust washer, planetary gear 4987975/1.32.425 2
3 Oil seal 45×75×10 5135294/16 1 12.2 Planetary gear 885103870/1.32.415B 2
4 O-sealing ring 31.5×1.8 GB 3452.1-1992 1 12.3 Shaft, pinion, differential 5148935/1.32.416 1
5 Steel ball 6.35 GB 308-1994 1 12.4 Thrust washer, side gear 1.6 mm 5148936/1.32.424 2
6 Oil seal ring, shaft, bevel pinion 5142026/16 1 Thrust washer, side gear 1.8 mm 5148937/1.32.424
7 Rear bearing 5133776/16 1 Thrust washer, side gear 1.7 mm 5148938/1.32.424
8 Front bearing 5143109/16 1 12.5 Side gear (LH) 885103868/1.32.413 1
9 Adjusting washer 3.0 mm 5142032/16 1 12.6 Side gear (RH) 885110716/1.41.502 1
10 Bevel gear pair9/39 1 12.7 Carrier, differential 4996747/1.41.402 1
10.1 Shaft, bevel pinion 5142024/16 1 12.8 Dowel 4987976/1.32.428 1
10.2 Bevel gear wheel 5111094/16 1 13 Bolt M12×1.25×25 14274434/10357/04 8
11 Bearing 32012 (60×95×23) GB/T 297-1994 2
