Description

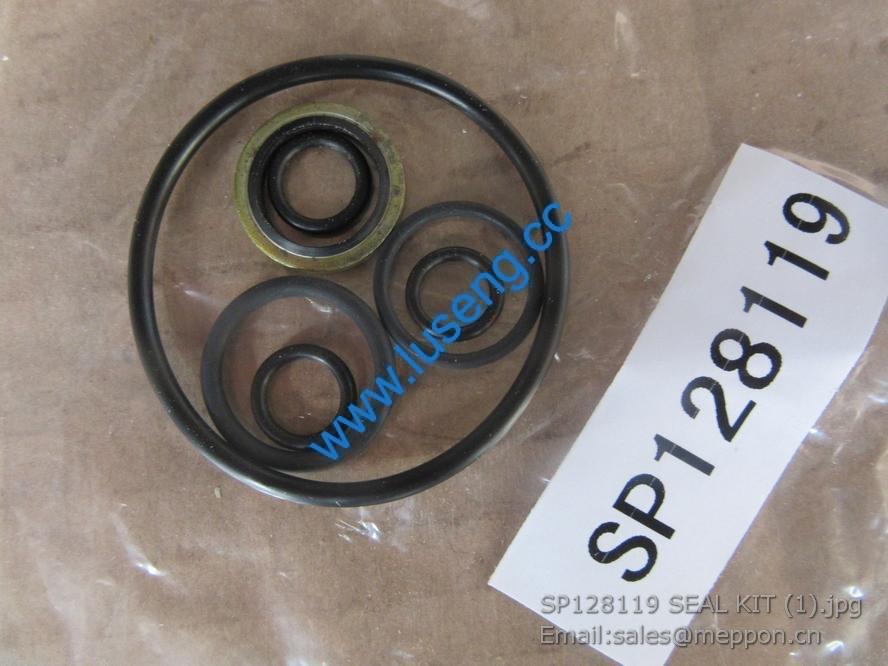

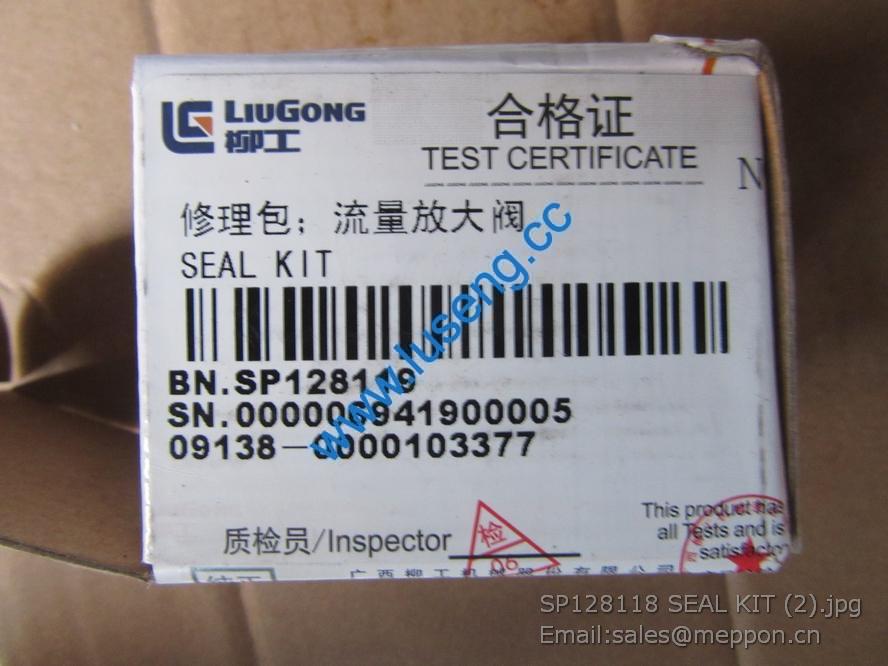

SP128119 SEAL KIT LIUGONG

1 A30-1004016 第一道气环 1st compression ring 4 易损件 EWP
2 A30-1004017 第二道气环 2nd compression ring 4 易损件 EWP
3 A30-1004030 油环总成 Scraper ring 4 易损件 EWP
A30-1004016* 活塞环组件 Piston ring subassembly 1
4 D0200-1004015A 活塞 Piston 4 易损件 EWP
5 430-1004019 活塞销 Piston pin 4
6 Q43040 挡圈 40 Retaining ring 40 8 易损件 EWP
7 E0200-1004202 连杆衬套 Connecting rod bushing 4 易损件 EWP
8 530-1004050 连杆部件 Connecting rod part 4

1 430-1005052E 曲轴皮带轮紧固螺栓 Tightening bolt of crankshaft belt pulley 1
2 530-1005018B 曲轴头垫片 I Crankshaft head gasket I 1
3 D30-1005030A 皮带轮减震器总成 Belt pulley vibration damper assembly 1
4 530-1005017 A 皮带轮隔套 Belt pulley spacer sleeve 1
5 530-1005024 垫片 Washer 1
6 YC208-B04370F O 形圈 2.65×4.37 O-ring 2.65×4.37 1
7 D30-1005022 机油泵驱动齿轮 Oil pump driving gear 1
8 D30-1005023 隔套 Spacer sleeve 1
9 6105Q-1005021 曲轴正时齿轮 Crankshaft timing gear 1
10 GB/T1096-C1232 键 C12×32 Key C12×32 1
11 Q5511245 键 12×45 Key 12×45 1
12 D30-1005054 上轴瓦(窄) Upper bearing (narrow) 4
13 D30-1005055 下轴瓦(窄) Lower bearing(narrow) 4
14 D30-1005056A 上轴瓦(宽) Upper bearing(wide) 1
15 6105Q-1005058A 曲轴止推片 Crankshaft thrust plate 4
16 D30-1005057 下轴瓦(宽) Lower bearing(wide) 1
D30-1005054*-H 主轴瓦组件(红色) Main bearing shell subassembly(red) 1
D30-1005054*-L 主轴瓦组件(蓝色) Main bearing shell
subassembly(blue)
1

17 D0800-1005001A 曲轴 Crankshaft 1
18 YC24-B1226 圆柱销 Pin 1
19 D0702-1005015 附加皮带轮 Add-belt pulley 1
20 Q150B0830TF2 螺栓 M8×30 Bolt M 8×30 4
21 Q40308 垫圈 8 Washer 8 4
22 Q40108 垫圈 8 Washer 8 4

1 Q150B1238TF2 螺栓 M12×38 Bolt M12×38 1
2 Q40312 垫圈 12 Lock Washer 12 1
3 630-1006019 垫圈 Washer 1
4 D30-1006021 凸轮轴正时齿轮 Camshaft timing gear 1
5 GB/T1096-C0828 键 C8×28 Key C8×28 1
6 D30-1006015C 凸轮轴 Camshaft 1 易损件 EWP
7 Q/YC1820820TF2 螺栓 M8×20 Bolt M8×20 2
8 Q40308 垫圈 8 Lock Washer 8 2
9 D30-1006016 凸轮轴止推片 Camshaft thrust plate 1
10 6105Q-1006017 隔圈—凸轮轴正时齿轮 Spacer-camshaft timing gear 1
