Description

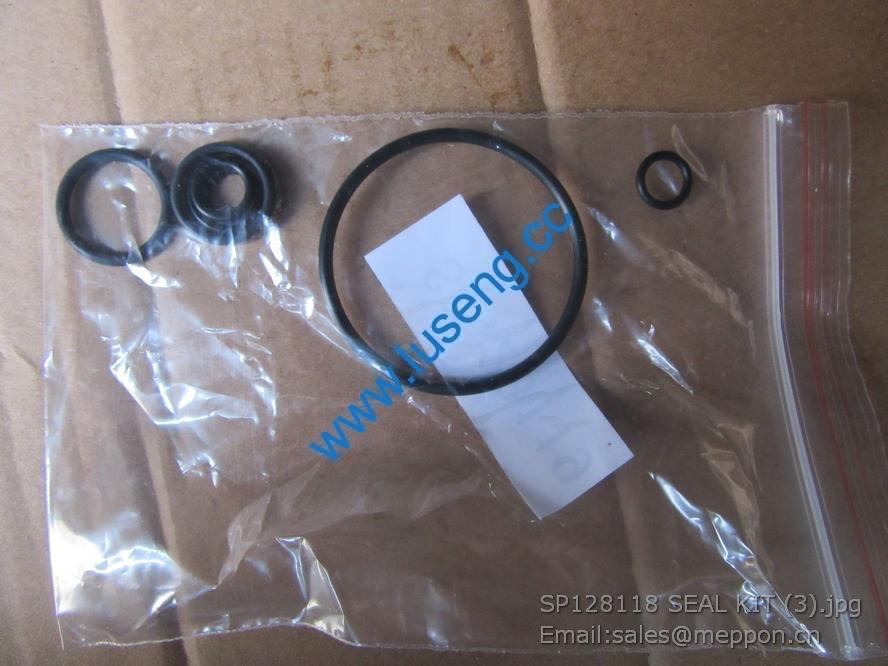

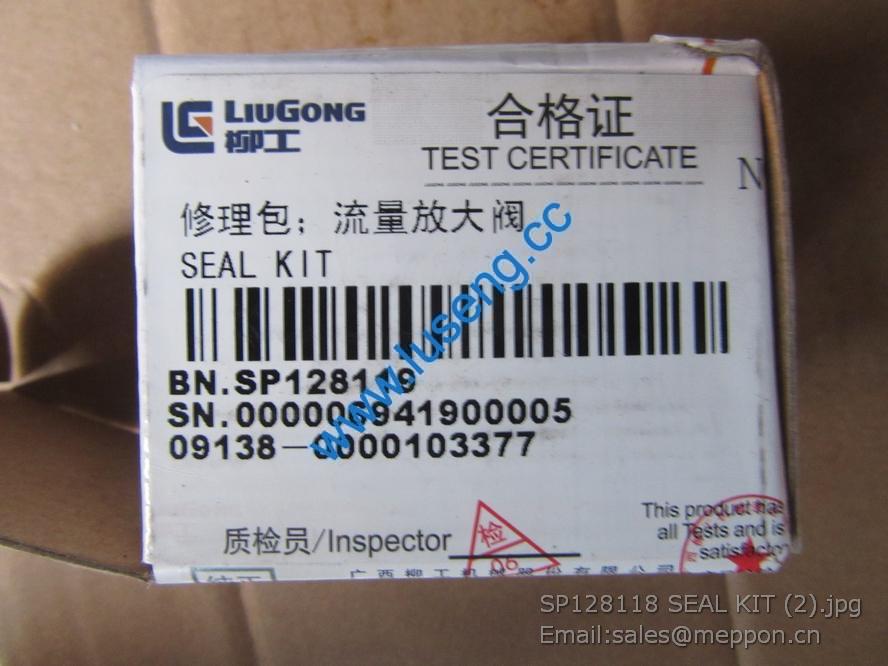

SP128118 SEAL KIT LIUGONG

1 D0102-1002080 前左支架焊接件
Front Left bracket
assembly
1
2 D0102-1002070 前右支架焊接件
Front Right bracket
assembly
1
3 Q40112 垫圈 12 washer 12 8
4 Q40312 垫圈 12 washer 12 8
5 Q150B1225TF2 螺栓 M12X25 bolt M12×2 8

1 Q1840855TF2 螺栓 M8×55 Bolt 3
2 D30-1002054 正时惰齿轮挡板 Timing idle gear
retaining board
1
3 D30-1002051 正时惰齿轮 Timing idle gear 1
4 D30-1002052 惰齿轮轴 Idle gear shaft 1
5 YC208-B01600F O 形圈 2.65×16 O-ring 2
6 6105Q-1002067 主油道密封塞 Main oil passage
seal plug
2
7 D30-1002010A 气缸体部件 Cylinder block
part
1
8 6105Q-1002022 铝堵 Aluminum plug 1
9 Q61101 开槽锥形螺塞 NPT1/8 Grooved tapered
screw plug
1
10 430-1002162B 过油螺栓 Hollow bolt for oil 4
11 430-1002163 垫圈 Washer 4
12 D30–1002740 喷嘴组件 Nozzle subassembly 4
13 D30-1002068A 油道堵塞 Oil passage
blockage
1
14 YC24-0408 销 4×8 Pin 4×8 2
15 D30-1002062A 凸轮轴端盖垫片 Camshaft end cover
gasket
1
16 D30-1002061 凸轮轴端盖 Camshaft end cover 1
17 Q40308 垫圈 8 Washer 8 3
18 Q150B0820 螺栓 M8×20 Bolt M8×20 3
19 6105Q-1002069 后主油道堵塞 Rear oil passage
blockage
2
20 330-10020212A 主轴承盖螺栓 Main bearing cover
bolt
10
21 A3000-1002063B 气缸套封水圈 Cylinder liner
water seal ring
4
22 A3000-1002063 气缸套封水圈 Cylinder liner 4 water seal ring
23 D30-1002064B 气缸套 Cylinder liner 4

1 Q150B0865TF2 螺栓 M8×65 Bolt M8×65 3
2 Q40308 垫圈 8 Washer 8 32
3 D30-1002213B 多楔带惰轮轴 Multi-wedge belt 1
4 Q43080 挡圈 80 Retaining ring 80 1
5 GB/T276-6010-2RS 滚动轴承 6010-2RS Rolling bearing 2
6 Q150B0850 螺栓 M8×50 Bolt 2
7 6105Q-1600011 扁销 Flat pin 1
8 YC209-C065090FR 油封 65×90 Oil seal 1
9 Q150B0870 螺栓 M8×70 Bolt 1
10 Q150B0865 螺栓 M8×65 Bolt 2
11 D30-1002037 上止点指针 Top dead center pointer 1
12 Q1200816 螺柱 M8×16 Stud 2
13 Q150B0820 螺栓 M8×20 Bolt 5
14 1D30-1002040 喷油泵齿轮盖部件 Injection pump gear cover part 1
15 D30-1002036 喷油泵齿轮盖垫片 Injection pump gear cover gasket 1
16 D30-1002031C 正时齿轮室罩 Timing gear housing cover 1
17 D30-1002034C 正时齿轮室罩垫片 Timing gear housing cover gasket 1
18 D30-1002033D 齿轮室盖板 Gear housing covering plate 1
19 D30-3509001A 空气压缩机垫片 Air compressor gasket 1
20
D7100-1002211
空压机接口盖板 Air compressor connector covering
plate
1
21 Q150B1035 螺栓 M10×35 Bolt 4
22 Q150B0822 螺栓 M8×22 Bolt 13
23 Q40108 垫圈 8 Washer 26
24 Q340B08 螺母 M8 Nut 5
25 Q1200865 螺柱 M8×65 Stud 3
26 Q150B0855 螺栓 M8×55 Bolt 1
27 D30-1002211B 多楔带惰轮 Multi-wedge idle gear 1
28 D30-1002212A 隔套 Spacer sleeve 1
22 Q150B0822 螺栓 M8×22 Bolt 13
23 Q40108 垫圈 8 Washer 26 24 Q340B08 螺母 M8 Nut 5
