Description

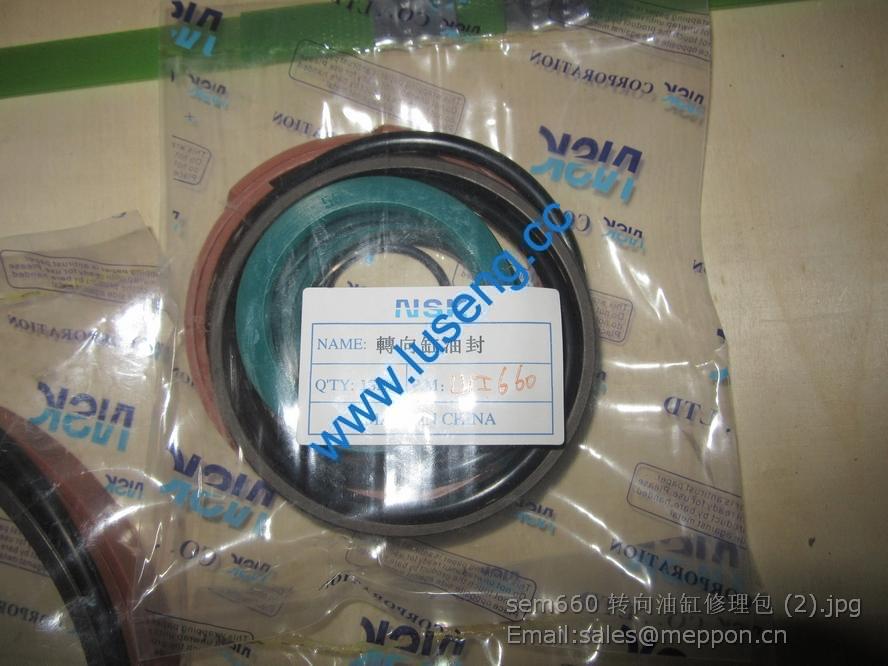

sem660 SEM STEERING CYLINDER REPAIR KITS
1 Q150B0865TF2 螺栓 M8×65 Bolt M8×65 3
2 Q40308 垫圈 8 Washer 8 32
3 D30-1002213B 多楔带惰轮轴 Multi-wedge belt 1
4 Q43080 挡圈 80 Retaining ring 80 1
5 GB/T276-6010-2RS 滚动轴承 6010-2RS Rolling bearing 2
6 Q150B0850 螺栓 M8×50 Bolt 2
7 6105Q-1600011 扁销 Flat pin 1
8 YC209-C065090FR 油封 65×90 Oil seal 1
9 Q150B0870 螺栓 M8×70 Bolt 1
10 Q150B0865 螺栓 M8×65 Bolt 2
11 D30-1002037 上止点指针 Top dead center pointer 1
12 Q1200816 螺柱 M8×16 Stud 2
13 Q150B0820 螺栓 M8×20 Bolt 5
14 1D30-1002040 喷油泵齿轮盖部件 Injection pump gear cover part 1
15 D30-1002036 喷油泵齿轮盖垫片 Injection pump gear cover gasket 1
16 D30-1002031C 正时齿轮室罩 Timing gear housing cover 1
17 D30-1002034C 正时齿轮室罩垫片 Timing gear housing cover gasket 1
18 D30-1002033D 齿轮室盖板 Gear housing covering plate 1
19 D30-3509001A 空气压缩机垫片 Air compressor gasket 1
20
D7100-1002211
空压机接口盖板 Air compressor connector covering
plate
1
21 Q150B1035 螺栓 M10×35 Bolt 4
22 Q150B0822 螺栓 M8×22 Bolt 13
23 Q40108 垫圈 8 Washer 26
24 Q340B08 螺母 M8 Nut 5
25 Q1200865 螺柱 M8×65 Stud 3
26 Q150B0855 螺栓 M8×55 Bolt 1
27 D30-1002211B 多楔带惰轮 Multi-wedge idle gear 1
28 D30-1002212A 隔套 Spacer sleeve 1
22 Q150B0822 螺栓 M8×22 Bolt 13
23 Q40108 垫圈 8 Washer 26 24 Q340B08 螺母 M8 Nut 5
1
150-1003041F 加机油口盖 Oil filler cap 1
2
150-1003043C 密封圈 Seal ring 1
3
330-1003053 密封圈 Seal ring 1
4 D0303-1003002 加机油口接管 Oil filler connecting pipe 1
5 Q150B0616 螺栓 M6X16 Bolt 3
6 Q40306 垫圈 6 Washer 3
7 Q40106 垫圈 6 Washer 3
8 E0200-1014001A 呼吸器垫片 Breather gasket 1
9 D0303-1003060A 气缸盖罩焊接件 Cylinder head cover parts 1
10 330-1003013B 气缸盖长螺栓 Cylinder head bolt(long) 4
11 6105Q-1003150 后吊耳组件 Rear lifting eye subassembly 1
12 D30-1003017 垫圈 Washer 4
13 D30-1003022C 气缸盖罩垫片 Cylinder head cover gasket 1
14 Q614B06 螺塞 NPT3/4 Threaded plug NPT3/4 3
15 D30-1003010B 气缸盖部件 Cylinder head parts 1
16 6105QA-1003088 气缸盖定位销套 Cylinder head locating pin sleeve 2
17 D0300-1003011 气缸盖垫片 Cylinder head gasket 1 易损件 EWP
18 6105Q-1003081 水套堵塞(一) Water jacket plug(I） 8
19 330-1003018B 缸盖短螺栓（Ⅱ） Cylinder head bolt(short) 4
20 330-1003014B 气缸盖短螺栓 Cylinder head bolt(short) 6
21 D30-1003018 缸盖短螺栓（Ⅱ） Cylinder head bolt(short) 4
22 Q1840816 螺栓 M8×16 Bolt M8×16 10
23 6105Q-1003140 前吊耳组件 Rear lifting eye subassembly 1
1 A30-1004016 第一道气环 1st compression ring 4 易损件 EWP
2 A30-1004017 第二道气环 2nd compression ring 4 易损件 EWP
3 A30-1004030 油环总成 Scraper ring 4 易损件 EWP
A30-1004016* 活塞环组件 Piston ring subassembly 1
4 D0200-1004015A 活塞 Piston 4 易损件 EWP
5 430-1004019 活塞销 Piston pin 4
6 Q43040 挡圈 40 Retaining ring 40 8 易损件 EWP
7 E0200-1004202 连杆衬套 Connecting rod bushing 4 易损件 EWP
8 530-1004050 连杆部件 Connecting rod part 4
