Description

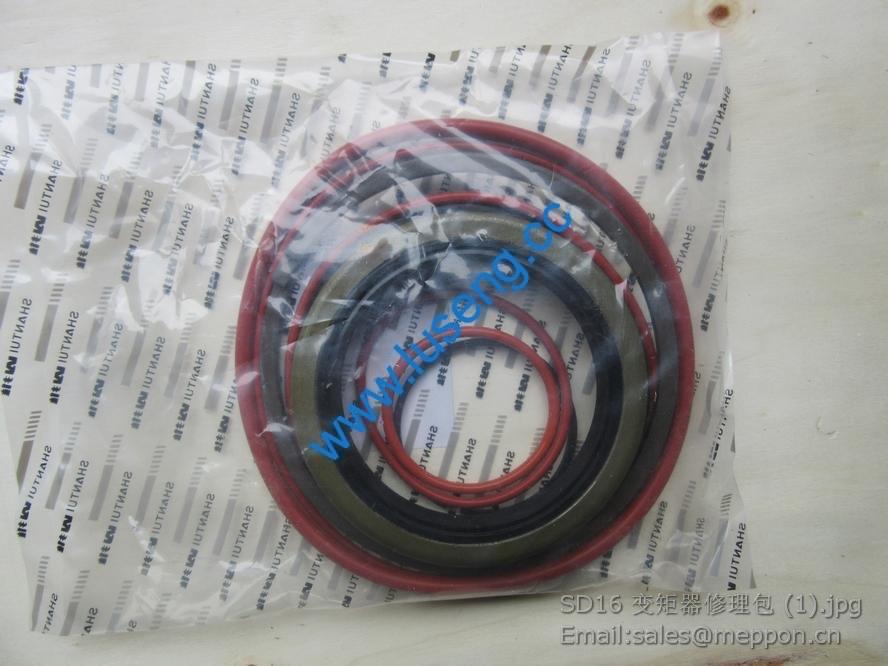

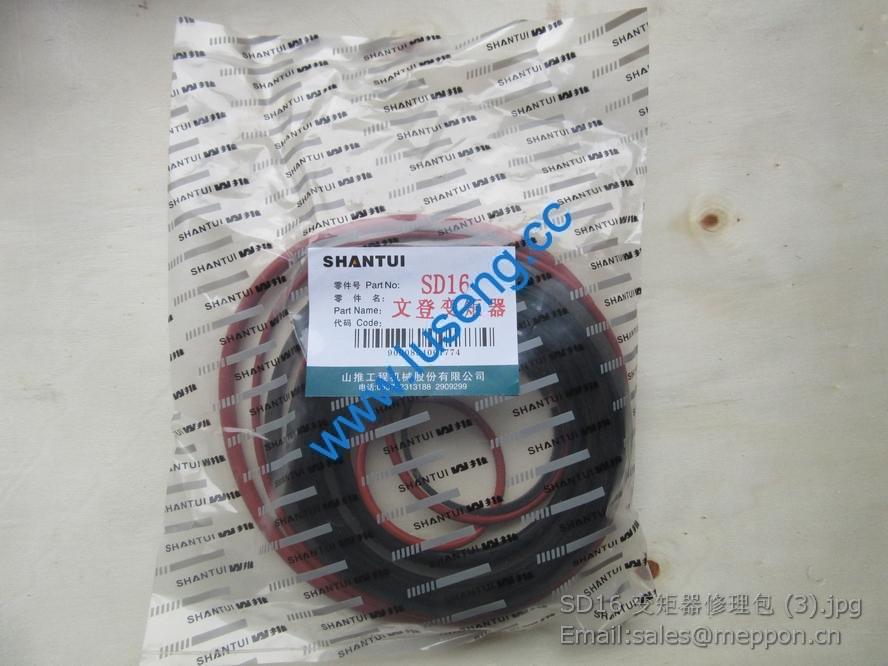

SD16 shantui torque converter kits

1 6105Q-1009031C 放油塞 Oil drain plug 1
2 Q/YC149-27 复合式密封垫圈 27 Compound seal washer 27 1
3 6105Q-1009032A 放油塞磁铁 Oil drain plug magnet 1
4 Q1840840TF2 螺栓 M8X40 Bolt M8X40 14
5 L3000-1009002 油底壳压块 Oil sump pressure block 2
6 M3001-1009040A 油底壳组件 Oil sump assembly 1
7 M3400-1009001B 油底壳垫片 Oil sump gasket 1
8 M3000-1009002 油底壳压块 Oil sump pressure block 12
9 Q618B04 螺塞 NPT 1/2 Screw plug NPT 1/2 1

1 6105QA-1010130B 滤网总成 Strainer assembly 1
2 M3000-1010100D 吸油管部件 Oil suction pipe parts 1
3 Q150B1025 螺栓 M10X25 Bolt 1
4 Q340B10 螺母 M10 Nut 1
5 Q40310 垫圈 10 Washer 1
6 Q40110 垫圈 10 Washer 1
7 GB/T899-G1095 螺柱 GM10X95 Bolt 2
8 Q340B10 螺母 M10 Nut 2
9 Q40310 垫圈 10 Washer 2
10 M3400-1010150B 垫片组合件 Gasket 1
11 Q1841020 螺栓 M10X20 Bolt 1
12 M3000-1010105 进油管支架 Oil inlet pipe bracket 1

1 Q1841050 螺栓 Bolt M10×50 5
Q1841060 螺栓 Bolt M10×60 1
Q1841075 螺栓 Bolt M10×75 1
Q1841080 螺栓 Bolt M10×80 1
2 GB/T9877.1 后油封
FB82×105×13F
Seal ring 1 易损件 EWP
3 M3400-1011109 滑阀 Sliding valve 1
4 Q/YC149-22 复合式密封垫圈
22
Seal ring washer 1
5 M3400-1011106 阀塞 Valve plug 1
6 M3400-1011107 弹簧 Spring 1
7 M3400-1011115 堵塞 Plug 1
8 Q/YC149-30 复合式密封垫圈
30
Seal ring washer 1
9 M3400-1011101A 机油泵体 Oil pump body 1
10 M3400-1011015 机油泵垫片 Oil pump gasket 1 易损件 EWP
11 Q150B0820TF2 螺栓 M8X20 Bolt M8×20 10
12 M3400-1011105A 机油泵盖 Oil pump cover 1
13 M3400-1011142A 内转子 Inner rotor 1
14 M3400-1011143A 外转子 r Outer roto 1
