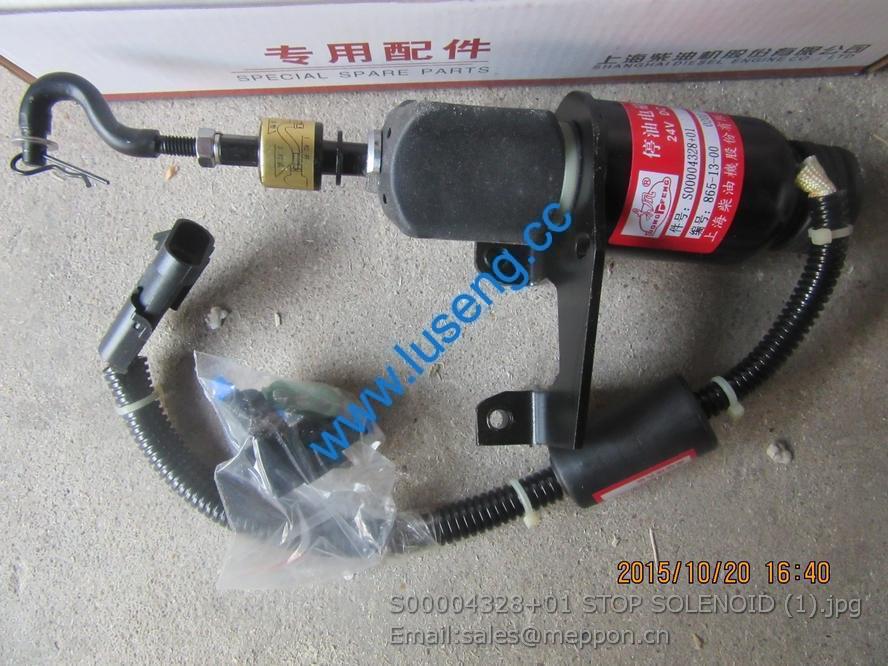

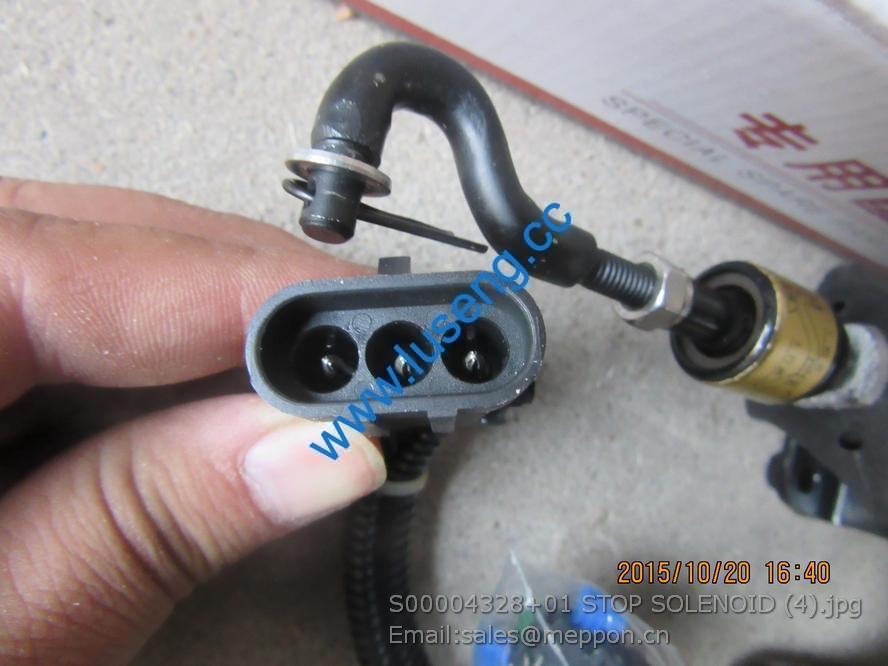

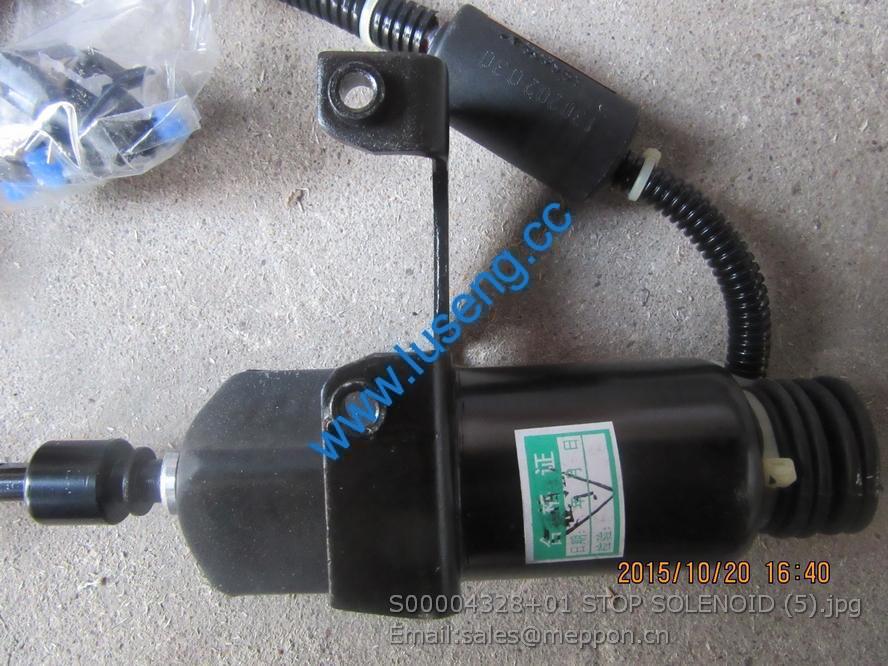

S00004328+01 STOP SOLENOID W47008273 860123900

1 M3000-1004002 气环 Compression ring 6 易损件 EWP
2 M3000-1004003 刮油环 Scraper ring 6 易损件 EWP
3 M3000-1004100 油环部件 Oil ring unit 6 易损件 EWP
M3000-1004002* 活塞环组件 Piston ring parts 1
4 M3000-1004001A 活塞 Piston 6 易损件 EWP
5 M3000-1004004 活塞销 Piston pin 6
6 Q43050 挡圈 50 Retaining ring 50 12 易损件 EWP
7 M3000-1004202A 连杆衬套 Connecting rod
bushing
6 易损件 EWP
8 M3000-1004201A 连杆体 Connecting rod shank 6
9 M3000-1004007 下连杆轴瓦 Connecting rod lower
bearing
6 易损件 EWP
10 M3000-1004007 下连杆轴瓦 Connecting rod lower
bearing
6 易损件 EWP
11 M3000-1004203A 连杆盖 Connecting rod cap 6
12 M3000-1004204A 连杆螺栓 Connecting rod bolt 12 易损件 EWP

1 M3400-1005202 紧固螺栓 Fasten bolt 6
2 M3001-1005201C 曲轴皮带轮 Crankshaft pulley 1
3 M3400-1005240 硅油减振器组件 Silicon oil vibration damper parts 1
4 M3400-1005018 曲轴小头衬套 Camshaft small sleeve 1
5 M3400-1005019 曲轴 O 型密封圈 Camshaft O-ring 1 易损件
6 M3400-1005001B 曲轴 Camshaft 1
7 M3000-1005007A 曲轴止推片（上） Camshaft thrust plate (upper) 2 易损件 EWP
M3000-1005008A* 曲轴止推片组件 Camshaft thrust plate 1
8 M3000-1005005A 上主轴瓦 Upper main bearing shell 7 易损件
9 Q2821010T10F9 开槽平端紧定螺钉 M10×10 Bolt 6
10 M3400-1005002C 曲轴正时齿轮 Crankshaft timing gear 1
11 M3000-1005017 曲轴 O 型密封圈 Camshaft O-ring 1 易损件
12 M3400-1005016 曲轴大头衬套 Camshaft sleeve 1
13 YC24-B0820 圆柱销 8×20 Pin 1
14 M3000-1005006A 下主轴瓦 Below bearing shell 7 易损件
M3000-1005006A* 主轴瓦组件 Main bearing parts 1
15 M3000-1005008A 曲轴止推片（下） Camshaft thrust below plate 2 易损件 EWP
16 A3100-1005018 扁销 Flat pin 1

1 M3400-1006007 凸轮轴螺栓 Camshaft bolt 4
2 M3400-1006002B 凸轮轴正时齿轮 Camshaft timing
gear
1
3 M3400-1006013 球头销 1
4 M3400-1006001B 凸轮轴 Camshaft 1
5 M3000-1006003 凸轮轴止推片 Camshaft thrust
plate
1
6 Q1840816TF2 螺栓 M8X16 Bolt M8×16 2
