Description

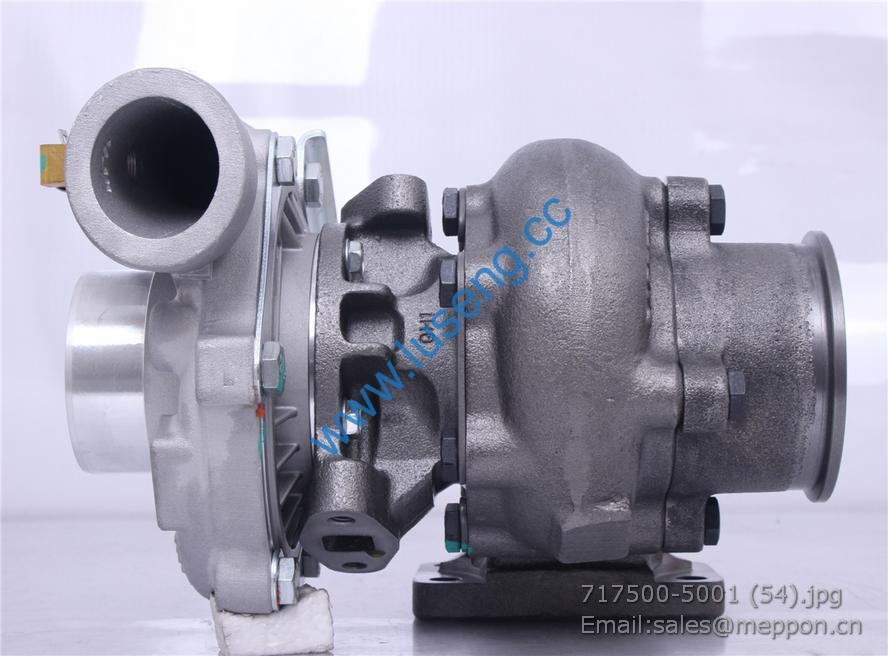

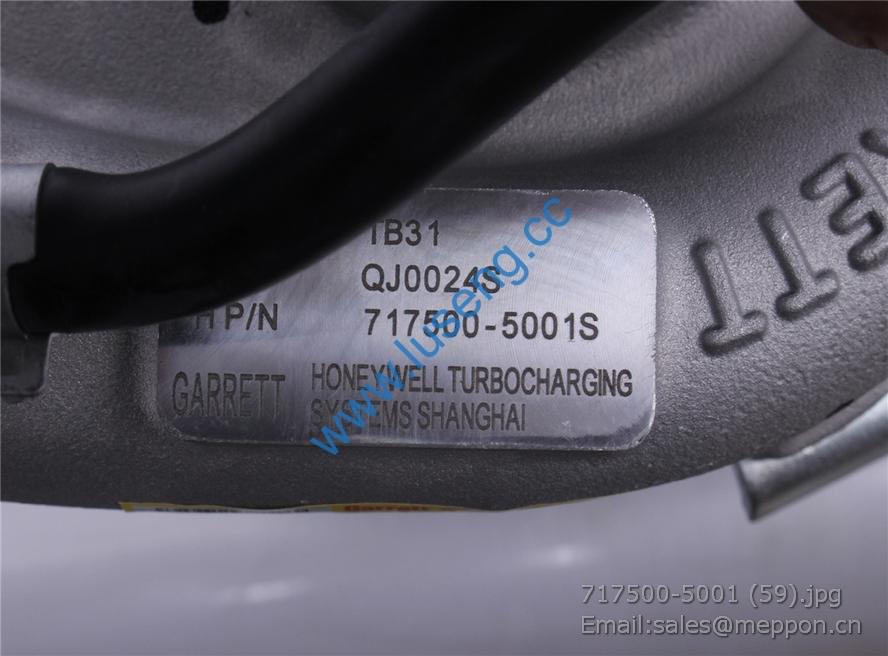

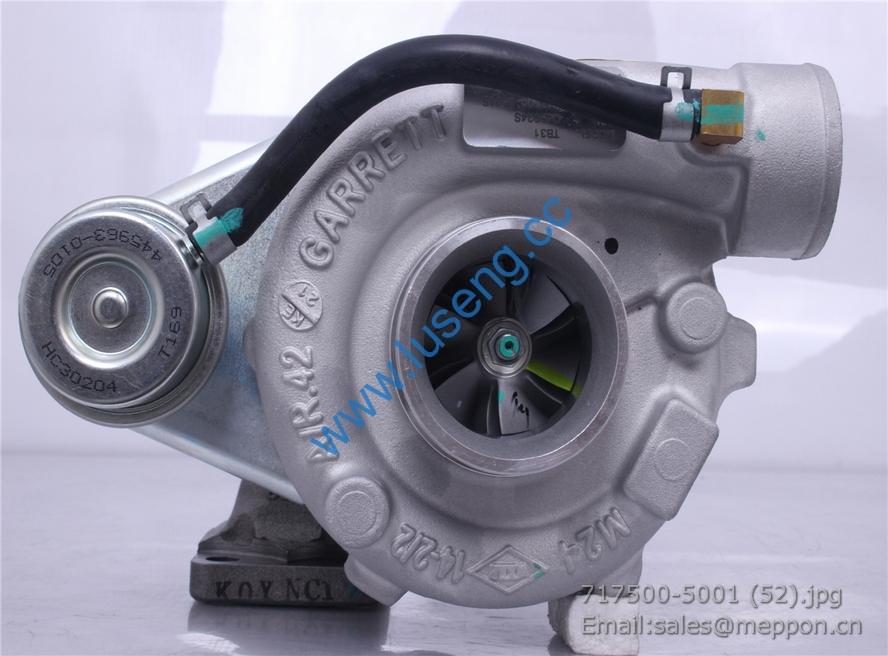

LX311 YUNNEI turbocharger 717500-5001S
1. HA03145 4100QB-03-029-FEV 进气管垫片 Gasket, intake manifold 1
2. HA0811241 YN33PE-08-001-EQ 进气管 Intake manifold 1
3. GB898-88 螺柱 Nut AM8×50 1
4. GB/T 97.1-2002 垫圈 Washer 8 10
5. GB/T 6170-2000 螺母 Nut M8 11
6. GB898-88 螺柱 Bolt AM8×20 7
7. HA01357 4100QBZL-08-004 进气接管垫片
Intake connecting pipe
gasket
1
8. HC76 4100QBZL-08.01 空气加热器（24V/600W） Air heater 1
9. HA11448
4100QBZL-11.01.03-00
3
Ⅳ缸高压油管辅助支撑
Hight pressure oil pipe
auxiliary supporting, Ⅳ
cylinder
1
10. GB/T 5783-2000 螺栓 Bolt M8×16 1
11. HA08159 4102QBZL-08-002A 增压进气接管 Intake connecting pipe 1
12. GB898-88 螺柱 Nut AM8×45 3
1. GB/T 5783-2000 螺栓 Bolt M8×25 1
2. GB93-1987 垫圈 Spring washer 8 3
3. GB/T 97.1-2002 垫圈 Washer 8 3
4. HA11951 4100QBZL-11.12.04-001 增压器进油管上夹片
Supercharger oil intake
pipe upper sheet
1
5. HA11952 4100QBZL-11.12.04-002 增压器进油管下夹片
Supercharger oil intake
pipe lower clip
1
6. HA1169 4100QBZ-11-006 铰接螺栓 Link bolt M12×1.5 1
7. HA11409 4100QBZL-11.12-003 进油管夹垫圈
Intake oil pipe clamp
washer
1
8. GB/T 5783-2000 螺栓 Bolt M6×16 4
9. GB93-1987 垫圈 Spring washer 6 12
10. GB/T 97.1-2002 垫圈 Washer 6-140HV 4
11. 9087060096 氟橡胶 A 型组合垫圈 Combination washer 12 2
12. HA0930 4100QBZ-09-005 螺母 Nut M8 17
13. HA0932 4100QBZ-09-006B 双头螺柱 Bolt L=22 4
14. HA09360 4100QBZL-09.01.02-G 排气防护板焊合件
Blind against exhausting
welding-on
1
15. HA09246 WTP056-04 增压器总成 增压器总成 Turbo-charger 1
16. φ22×38×1 增压器回油管法兰垫片
Flange gasket, Turbo-
charger oil outlet pipe
1
17. GB/T 5783-2000 螺栓 Bolt M6×20 4
18. GB/T 97.1-2002 垫圈 Washer 6 4
19. HA09284 4100QBZ-09.02-004A 排气尾管法兰垫片 Flanged packing of 1
20. HA11320 4100QBZ-11.11.01A 增压器回油管合件
Turbo-charger oil outlet
pipe
1
21. HA09011 4100QBZL-09.02B-JH 排气尾管
Exhaust tail pipe
welding-on
1
22. HA11549 4100QBZ-11.11-001A 增压器回油管法兰垫片
Flange gasket,
Turbo-charger oil outlet
pipe
1
23. HA0962 4100QB-1A-09-002-NJ 排气管双头螺柱 Nut AM10×1×35 2
24. HA0934 495QA-09-002 螺母 Nut M10×1 2
25. HA0932 4100QBZ-09-006B 双头螺柱 Bolt L=30 3
26.
27. HA0955 4100QBZ-09-006B 双头螺柱 Bolt L=35 2
28. GB/T 96.1-2002 垫圈 Washer 8 2
29. GB/T 5783-2000 螺栓 Bolt M8×30 2
30. HA08067 YN33CR-08.01-G 进气接管支架
Air intake connective
pipe bracket
1
31. ZBJ15001-87 喉箍 NO.3 Clip Φ51～Φ70 2
32. HA08110 4100QBZ-08-005C 增压进气胶管（L=70mm) Transition rubber tube 1
33. HA08158 4102QBZL-08-003 进气接管 Intake connecting tube
34. HA08168 4100QBZL-08.01-002A-FT 压板 pressure plate 1
35. GB/T 6170-2000 螺母 Nut M8 2
36. HA03271 4100QBZ-03-030 排气管垫片 Gasket, exhaust manifold 4
37. GB/T 5783-2000 螺栓 Bolt M6×12 4
38. GB/T 96.1-2002 垫圈 Washer 6 4
39. HA09359 4100QBZL-09.01.01A-G 排气防护板部件Ⅰ Blind against exhausting Ⅰ 1
