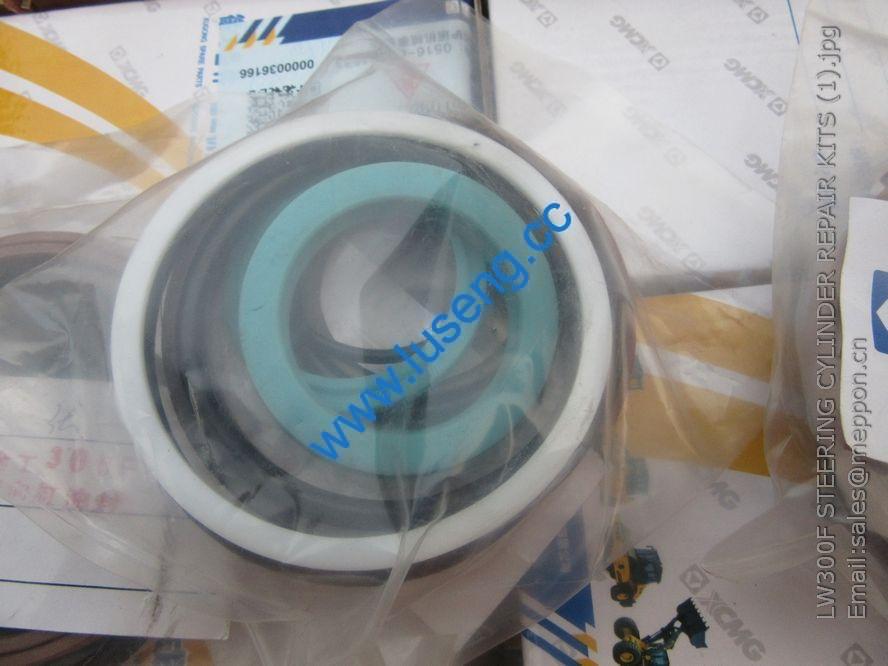

LW300F STEERING CYLINDER REPAIR KITS

1 6105Q-1305010A 放水阀部件 Water drain cock parts 1
2 Q5003220 销 3.2X20 Pin 3.2X20 1
3 150-1305015 操纵杆 Control lever 1

1 B7604-1303041 输水螺纹胶管
Water delivery screw
rubber pipe
1
2 Q40108 垫圈 Washer 3 易损件 EWP
3 Q40308 垫圈 Washer 3 易损件 EWP
4 Q150B0870TF2 螺栓 M8X70 Bolt 1
5 Q340B08 螺母 8 Bolt 8 1
6 Q1200870TF2 螺柱 M8X70 Bolt M8X70 1
7 J8000-1307100A 水泵 Water pump 1
8 Q150B0865TF2 螺栓 M8X65 Bolt 1
9 3430-1307011B 水泵衬垫 Water pump lining washer 1 易损件 EWP
10 Q/YC149-14 复合式密封垫圈 14 Compound washer14 1 易损件 EWP
11 Q/YC198-14 螺塞 M14X1.5 Bolt 14X1.5 1
12 Q150B0820 螺栓 M8X20 Bolt 2
13 J8004-1307250A 水泵进水管组件
Water pump water inlet pipe
subassembly
1

14 Q618B03 螺塞 NPT3/8 Screw plug 1
15 A3000-1307005 胶管 Rubber pipe 1
16 Q67657 环箍 57 Loop hoop 2
17 J8004-1307009 胶管 Rubber pipe 1

1 396-1308010A 风扇 Fan 1
2 Q1841060TF2 螺栓 M10×60 Bolt M10×60 4
3 415-1308001 水泵-风扇垫块 Cushion block 1

1 B7638-1600402 堵盖 Plug cap 1
2 B7638-1600408 垫片 Gasket 1
3 B7648-1600402 盖板 Cover board 1
4 B7648-1600408 垫片 Gasket 1
5 331-1600401A 飞轮壳 Flywheel case 1
6 6105Q-1600011 扁销 Flat pin 1
7 Q618B04 螺塞 NPT1/2 Screw plug 1
8 Q1841445TF2 螺栓 M14X45 Bolt 2
9 Q1841245TF2 螺栓 M12X45 Bolt 5
10 YC24-B1226 圆柱销 12X26 Straight pin 1
11 330-1005044 飞轮螺栓 Flywheel bolt 7
12 620-1005360C 飞轮及齿圈组件 Flywheel & gear ring parts 1
13 Q1841240TF2 螺栓 M12X40 Bolt 1
14 YC209-B100125PL 油封 100X125 Oil seal 1 选装 Optional
YC209-C100125PL 油封 100X125 Oil seal 1 选装 Optional
YC209-100125FL 油封 100X125 Oil seal 1 选装 Optional
15 Q1841235TF2 螺栓 M12X35 Bolt 2
16 Q1840612 螺栓 M6X12 Bolt 8
17 Q/YC198-18 螺塞 M18X1.5 Plug 2

1 A3006-1303020A 出水管组件 Water outlet assembly 1
2 Q/YC198-14 螺塞 M14X1.5 Screw plug 1
3 6105Q-1303015 出水支管垫片 Water outlet manifold gasket 6 易损件 EWP
4 Q40008 垫圈 8 Lock Washer 8 12
5 Q40308 垫圈 8 Lock Washer 8 12
6 Q/YC1820820 螺栓 M8X20 Bolt M8X20 12
7 Q618B03 螺塞 NPT 3/8 Screw plug NPT3/8 3
8 Q/YC149-14 复合式密封垫圈 14 Compound seal washer 1

1 430D-1118052 夹布橡胶管 Fabric inserted rubber pipe 1
2 Q67627 环箍 27 Loop hoop 2
3 630-3509030 进气管接头组件 Intake pipe joint subassembly 1
4 630-3509100A 空气压缩机 Air compressor 1
5 630-1002041A 空压机垫片 Air compressor gasket 1
6 6105Q-3509011 喷油泵传动齿轮 Injection pump driving gear 1
7 330-3509020D 气泵油泵机油管组件 Air pump oil pump oil pipe subassembly 1
8 Q/YC149-8 复合式密封垫圈 8 Compound seal washer 8 4
9 6105Q-1007073 管接螺栓 Hinge bolt 2
10 641-3509001 气泵出气口接头 Air pump exhaust port joint 1
11 D0305-3509042 管夹 Pipe clamp 4
12 6105Q-3509013 垫圈 Washer 1
13 Q40308 垫圈 8 Washer 8 1
14 J45D1-1008226 螺栓套 Bolt sleeve 1
15 Q150B0850 螺栓 M8X50 Bolt 1
16 J8000-3509011 空压机进气管 Air compressor intake pipe 1
17 J8000-3509044 胶管 Rubber pipe 1
