Description

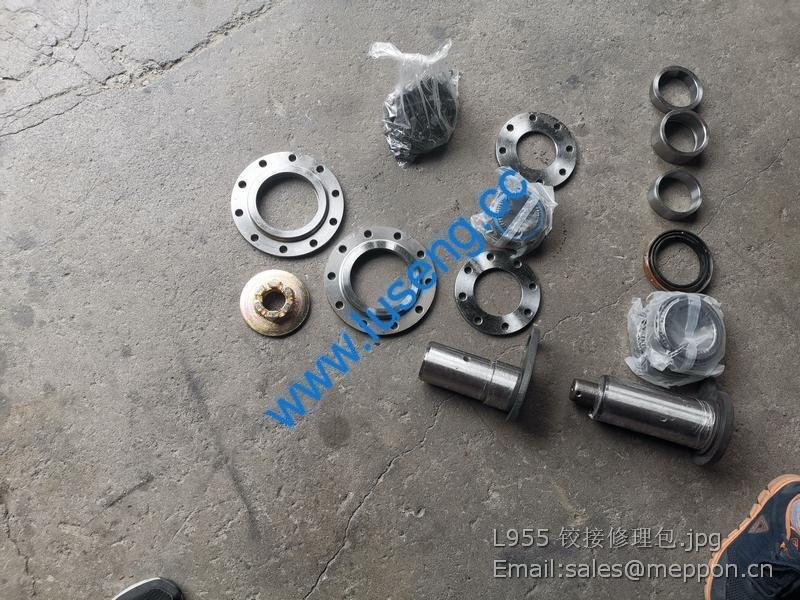

L955F PIN KITS SDLG 29250024361 29250017661 29250001031 4021000043 29250001051 29250000091 4021000058 29250009461 29250009421 29250017691

1 4043000040 垫片LGB303-95*160*1 Shim Y 4
2 4043001471 销轴LGB301-95*135NR*250-1401G Weld pin Y 1
3 4011001261 螺栓GB5783-M16*30flZnyc-8.8-480 Screw Y 7
4 4040000051 垫圈LGB001-16flZnyc-480 Washer Y 5
5 4043000038 垫片LGB303-95*150*2 Shim Y 4
6 4043000037 垫片LGB303-95*150*1 Shim Y 4
7 4043001470 销轴LGB301-95*150N*285-1401G Weld pin Y 2
8 29250001361 走线胶套 Rubber sleeve Y 2
9 29250016881 油管 Lubricating pipe Y 2
10 4043001060 销轴LGB301-85*150*290-1A11G Weld pin Y 2
11 29250018651 垫片18*55*10 Shim Y 2
12 29250024381 油管 Lubricating pipe Y 1
13 4021000043 关节轴承GB9163-GE70ES-2RS Spherical plain bearing Y 1
14 4011001250 螺栓GB5783-M12*30flZnyc-8.8-480 Screw Y 38
15 29250001031 法兰 Flange Y 1
16 29250001051 联接板 Flange Y 1
17 29250024361 上铰接销 Pin Y 1
18 29270009421 塑料塞 Plastic plug Y 1
19 29250017661 下铰接销 Pin Y 1
20 29250009441 套 Sleeve Y 1
21 4043000057 防尘圈LGB307-95 Sealing ring Y 2
22 4015000428 垫圈GB97.1-12flZnyc-300HV-480 Washer Y 38
23 4021000058 轴承GB297-33116 Roller bearing Y 2
24 29250000091 盘 Flange Y 1
25 29250000061 垫片 Shim Y 1
26 29250000071 垫片 Shim Y 1
27 29250000081 垫片 Shim Y 1
28 29250000051 间隔套 Sleeve Y 1
29 29250009461 盘 Flange Y 1
30 29250009451 套 Sleeve Y 1

31 29250009421 套 Sleeve Y 1
32 29250017701 垫片 Shim Y 1
33 29250017711 垫片 Shim Y 1
34 29250017721 垫片 Shim Y 1
35 29250017691 开槽螺母 Nut Y 1
36 4016000043 开口销GB91-8*80EpZn-Q235A Split pin Y 1
37 4011001270 螺栓GB5783-M10*35flZnyc-8.8-480 Screw Y 8
38 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 8
39 16835582 RUBBER DAMPER Rubber damper N 16
40 16835953 TUBE Tube N 8
41 4043001362 护套LGB313-20*32 Rubber sleeve Y 2
42 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 9
43 29250023731 橡胶板 Plate Y 1
44 29250023741 支承板 Plate Y 1
45 4011001248 螺栓GB5783-M10*25flZnyc-8.8-480 Screw Y 10
46 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 10
47 29250023751 支承板 Plate Y 1
48 4013000370 螺母GB6170-M10flZnyc-8-480 Nut Y 10
49 29250019651 右灯架 Lantern bracket Y 1
50 4011001240 螺栓GB16674-M12*25flZnyc-8.8-480 Screw Y 6
51 29250018341 转向销轴 Pin Y 2
52 29250023261 右前挡泥瓦 Front fender Y 1
53 4011001280 螺栓GB5783-M10*40flZnyc-8.8-480 Screw Y 5
54 4043002603 防松套LGB331-10*20*16flZnyc-45 Attaching sleeve Y 5
55 29140014801 前盖板 Cover plate Y 1
56 29250021041 油管 Lubricating pipe Y 2
57 29250000301 垫片 Shim Y 15
58 29250000291 通油螺栓 Bolt Y 6
59 29250023251 左前挡泥瓦 Front fender Y 1
60 29250019671 左灯架 Lantern bracket Y 1

61 29250018811 照灯网板 Protecting plate Y 2
62 4015000425 垫圈GB96.1-8flZnyc-300HV-480 Washer Y 10
63 4011001247 螺栓GB5783-M8*20flZnyc-8.8-480 Screw Y 10
64 29250018801 照灯护板 Protecting plate Y 2
65 29250023761 橡胶板 Plate Y 1
66 29250014121 接头 Nipple Y 3
67 29250000311 管夹 Clamp Y 5
68 4015000213 垫圈GB93-6EpZn-65Mn Washer Y 10
69 4014000510 螺钉GB818-M6*10flZnyc-4.8-480 Screw Y 10
70 29250018781 油管 Lubricating pipe Y 1
