Description

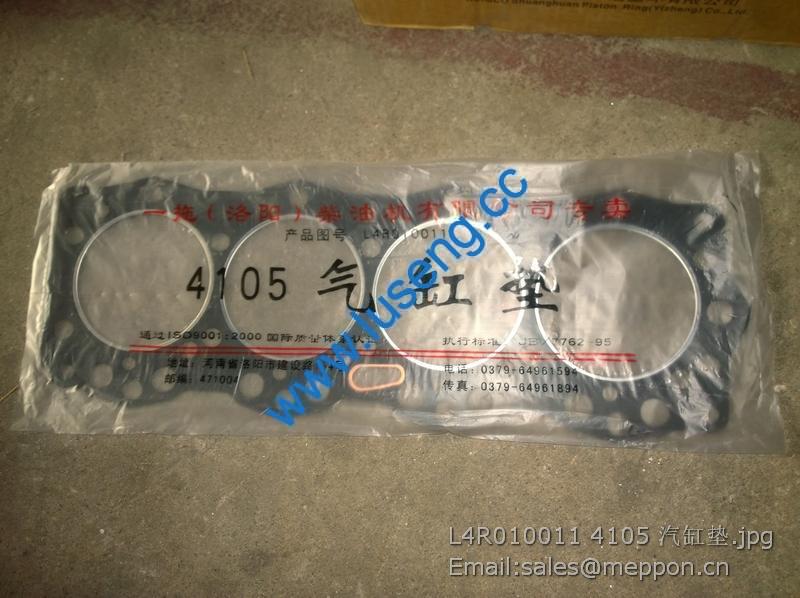

L4R010011 L4R010011-51 240100006995 HEAD GASKET YTO W018100261 SP113825
1 29340002431 灯架 Lantern bracket Y 1
2 29340002442 后板 Bracket Y 1
3 4015000256 垫圈GB96.1-8EpZn-300HV Washer Y 4
4 4011000105 螺栓GB5783-M8*20EpZn-8.8 Bolt Y 4
1 29360019331 工作装置标识包 Decal set Y 1
2 29360015121 万能铭牌 Name plate N 1
3 4019000072 铆钉GB12618.1-4*10-10 Rivet Y 4
4 29360019581 前车架标识包 Decal set Y 1
5 29360019351 后车架标识包 Decal set Y 1
6 29360016481 油料加注标识 Decal Y 1
7 29360019301 附件标识包 Decal set Y 1
8 29360015191 后标志 Emblem Y 1
9 29360019381 发动机罩标识包 Decal set Y 1
10 29360019551 驾驶室标识包 Decal set Y 1
11 29360019261 操纵箱标识包 Decal set Y 1
1 29350011721 LG95X空调系统 Air conditioning unit Y 1
2 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 4
3 4130000075 螺栓GB16674-M6*12EpZn-8.8 Screw Y 3
4 26350001761 调整拉杆 Adjusting bar Y 1
5 4013000011 螺母GB6170-M12EpZn-8 Nut Y 2
6 4011000084 螺栓GB5783-M10*30EpZn-8.8 Bolt Y 2
7 4015000162 垫圈GB97.1-10EpZn-300HV Washer Y 4
8 29350009031 压缩机接地线 Chassis ground cable Y 1

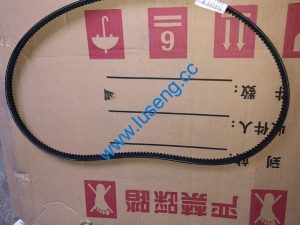

9 4110000795 皮带A17-380 Belt Y 1
10 4011000447 螺栓GB16674-M10*20EpZn-8.8 Bolt Y 6
11 29350007922 固定板 Bracket Y 1
12 4011000535 螺栓GB5782-M10*130EpZn-8.8 Screw Y 1
13 4013000007 螺母GB6170-M10EpZn-8 Nut Y 1
14 29350009711 固定块 Block Y 1
1 4190003273 蒸发器总成（加滤网） Evaporator Y 1
2 4130000418 ZG30.11XG-09温控器 Thermostat Y 1
3 4014000068 螺钉GB845-ST4.2*13-C-H Screw Y 4
4 4120001516 管路：蒸发器-压缩机3000 Pipe Y 1
5 4190000810 储液器卡子 Moulding Y 1
6 4011000286 螺栓GB5783-M6*35EpZn-8.8 Screw Y 1
7 4015000207 垫圈GB97.1-6EpZn-300HV Washer Y 1
8 4013000358 螺母GB6187.1-M6EpZn-8 Nut Y 1
9 4130000419 ZG30.06XG储液罐 Reservoir Y 1
10 4130002212 压缩机 Compressor Y 1
11 4130000658 空调线束LG956 Cable harness Y 1
12 4120001513 管路：压缩机-冷凝器3000 Pipe Y 1
13 4120001514 管路：冷凝器-储液罐2300 Pipe Y 1
14 4120001515 管路：储液罐-蒸发器2300 Pipe Y 1
15 4130002211 冷凝器总成 Condenser Y 1
1 4190003273001 放水管T2005 Drain pipe Y 2
2 4190003273002 下壳组件GKZ33-5.0F8-10 Closure Y 1
3 4190003273003 上盖组件GKZ33-5.0F8-20 Cover Y 1
4 4190003429 上出风口GKZ33-5.0F8-01 Air vent cock Y 1
5 4190003436 回风滤纸GKZ33-5.0F8-80 Filter Y 1
6 4130000633006 风机固定板GKZ33-5.0F-50 Anchor plate Y 1
7 4190003273004 侧盖板组件GKZ33-5.0F8-30 Plate Y 1
8 4190003430 下出风口GKZ33-5.0F8-03 Air vent cock Y 1
9 4190003431 制冷器GKZ33-5.0F8-50 Evaporator Y 1
10 4130000415002 感温探头TB6502 Temperature sensor Y 1
11 4190003273005 塑料夹MKZ9-3.0-09 Clamp Y 1
12 4190003435 制热器GKZ33-5.0F8-60 Heater Y 1
13 4130002346 蒸发器线束GKZ33-5.0F8-70 Cable harness Y 1
14 4130000633005 蒸发风机TB5101 Fan Y 1
