Description

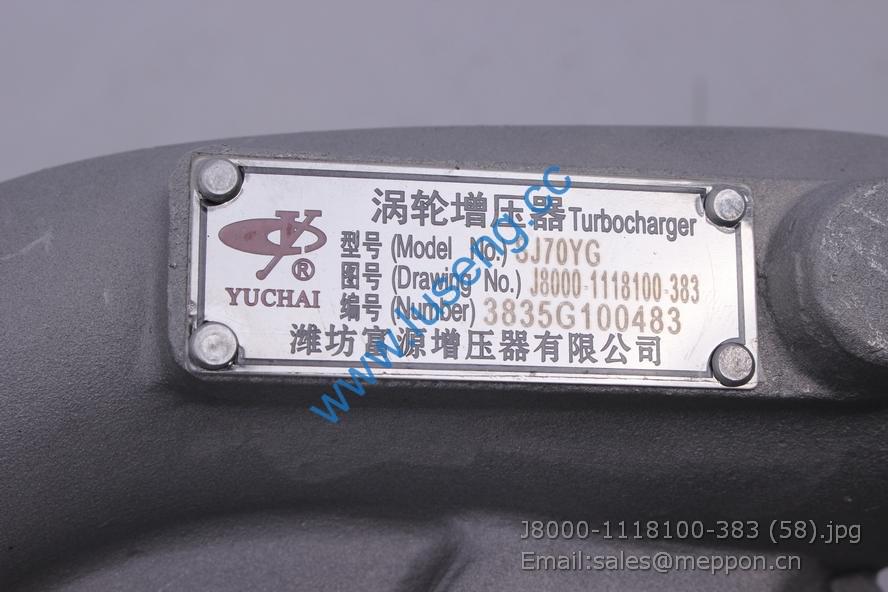

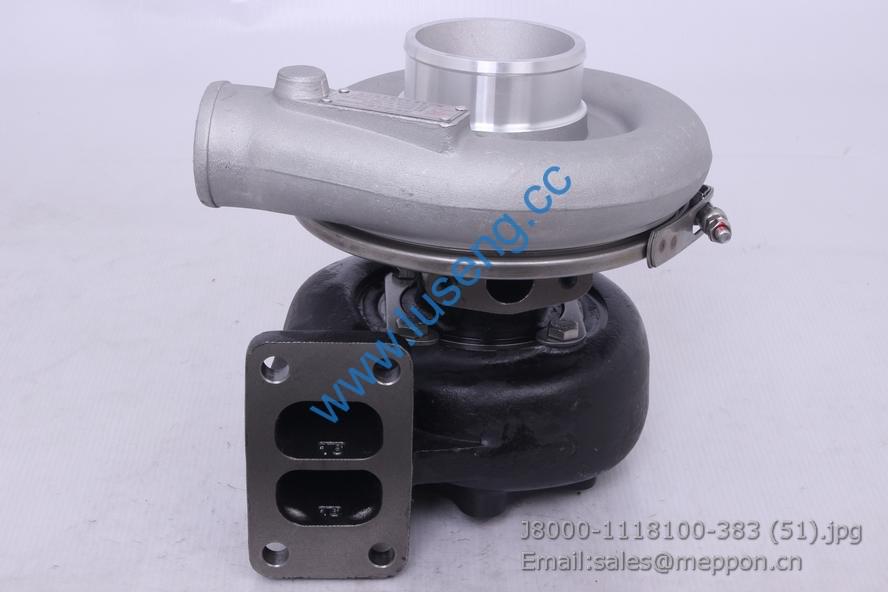

J8000-1118100-383 turbocharger SJ70YG YUCHAI YC6J

SQ150B0816TF2 Bolt M8×16
SQ40108 Plain Washer
SQ40308 Spring lock washer B
SQ150B0875TF2 螺钉M8×75
6105QA-1010130B Strainer assy.
A30-1011013 Pump intermediate gear shaft
430-1011014 Washers – intermediate gear
SQ43040 Retainer ring 40
430-1011011 Idle gear
430-1011012 Space washer
SQ341B10 Nut,Heavy Hexagon
6105Q-1011015A Engine oil pump adjusting shim
A30-1011020A Pump,Lubricating Oil
A30-1011050 机油出油管焊接件
SQ150B0825TF2 Bolt M8X25
SQ40308 Spring lock washer B
SQ40108 Plain Washer
6105QA-1010110A Gasket combination
SQ40110 Washer 12
SQ40310 Spring Washer10
SQ150B1050TF2 Bolt M10X50
GB/T276-6203 滚动轴承6203
J65F1-1012020A Filter,Lubricating Oil
A3100-1013001A Engine oil cooler gasket
A3100-1013010D Oil cooler
A3206-1013116 bolt
SQ1840875 Bolt M8X75
SQ1840880 bolt M8×80
SQ1840825 Bolt M8X25
A1A00-1013170A Pressure-adjusting valve module
SQ1840855 Bolt M8X55
SQ1841425 螺栓M14X25
SQ18408110 Bolt M8X110
SQ1840850 Bolt M8X50
SQ1840820 Bolt M8×20
6105Q-1014001A Breather washer
6105Q-1014010A Breather assy
SQ150B0825 bolt
SQ40308 Spring lock washer B
SQ40108 Plain Washer
G3208-1008041 Hollow boit
Q/YC149-8 Composite gasket8
Q/YC198-8 Plug M8X1
A3204-1008301A Preheating plug oil supply pipe assy.
G3208-1008043 Preheating plug assy.
G3208-1008047 Hollow boit
Q/YC149-10 Seal washer10
SQ150B0610 Bolt Ⅱ
SQ40306/01 Washer
SQ40106 Washer
G3208-1008045 Electromagnetic valve module
E0250-1008303 Solenoid Bracket
G3208-1008048 Hollow boit
A3204-1008302 Supply fuel pipe assembly, solenoid valve
G3208-1008049 Water Temperature Sensor
G3208-3900011 Flame preheater controller
B3221-1009050 Welded Dipstick
F30SA-1028170 油标尺座组件
SQ40108 Plain Washer
SQ40308 Spring lock washer B
SQ340B08 1-Type Hexagon Nut
SQ150B0820 hexagon headed bolt
B3221-1009045A Brace,Tube
A35D1-1009047 Dipstick jacket
A4406-1104203 Oil pipe bracket
SQ150B0615 bolt
SQ40306 Washer,Spring
SQ40106 Washer
SQ340B06 Nut M6
A3000-1104240A Returntubeassembly
A3522-1104300 Fuel pipe component from fuel pump to diesel filter
A3522-1104400 Diesel filter to the injection pump tubing assembly
A35X1-1104260A Oil return pipe pipe clamp bracket assy.
SQ150B0820 hexagon headed bolt
SQ40308 Spring lock washer B
SQ40108 Plain Washer
D0303-1104051 ELBOW,MALE UNION
G0228-1104206 Seal,O Ring
A4400-1104250 Oil return connecting pipe assy.
A3100-1104020A 高压油管组件Ⅱ
A3100-1104010A 高压油管组件Ⅰ
SQ150B0616 Bolt M6X16
Q/YC901-1C1415 Link bolt
Q/YC149-14 Sealing washer14
6105QJ-1104050 Oil inlet hose
397-1008018B Diesel filter bracket
6105Q-3509013 Washer
SQ40308 Spring lock washer B
SQ150B0825TF2 Bolt M8X25
6105Q-3509013 Washer
SQ340B08 1-Type Hexagon Nut
SQ1200835 Stud
A3000-1105010 Water separator diesel filter assembly
SQ1841030TF2 Bolt M10X30
A3100-1111122 喷油泵齿轮垫板
A3100-1111121 Injection pump gear
A3100-1111132C Injection pump drive shaft
YC208-B08000F O-ring2.65×80
SQ18412110 螺栓M12X110
A4400-1111129 螺栓衬套
A4400-1111127 调整螺套
SQ1841265 螺栓M12X65
A4400-1111120A 传动轴套组件
6QA6-1307017 Pipe bolt
Q/YC149-14 Sealing washer14
A4400-1111360A 机油回油管组件
SQ1841245 Bolt
SQ1841085 Bolt M10X85
SQ1841025TF2 Bolt M10X25
YC208-A01180F O形圈1.8X11.8
430D-1111070A Supercharge Compensation pipe
Q/YC901-1C1010 Hingle bolt M10×1
Q/YC149-10 Seal washer10
A5400-1111100-C27R Injection Pump
L3000-1111052A Brace,Tube
SQ1841020TF2 Bolt
A3100-1111051A Bracket
SQ150B1040 Bolt M10X40
SQ40310 Spring Washer10
SQ40110 Washer 12
A4400-1111350D Engine oil inlet pipe assy.
6QA6-1307017 Pipe bolt
6105Q-1007073 Joint Bolt
Q/YC149-8 Composite gasket8
A3100-1111126 喷油泵传动外花键
A4400-1111001A 燃油喷射泵连接盘
YC208-B10900F O形圈2.65X109
SQ150B0820TF2 Bolt M8×20
A3100-1111128A 传动轴止推圈
188-1115012 停油气缸支架焊接件
SQ40206 Washer
SQ40306 Washer,Spring
SQ150B0616 Bolt M6X16
SQ340B08 1-Type Hexagon Nut
SQ40308 Spring lock washer B
A10F9-1115340 Off oil cylinder assembly
SQ350B06 Nut-pilot bearing retaining ring
SQ40006 Washer
150-1115011 拉杆隔套
SQ150B0635 Stud M6X35
SQ150B1035 hexagon headed bolt
E0212-1111132 PIPE CONNECTOR
188-1115018 Stop oil cylinder studs
SQ340B10 1-Type Hexagon Nut
SQ40310 Spring Washer10
630-1112001 Injector washer
A3500-1112010A INJECTOR-FU
Q/YC901-1⑶610 Hinge bolt M6X1
Q/YC149-6 Sealing washer6
SQ1201035TF2 螺柱M10×35
A30-1112022A Clamp
SQ40310 Spring Washer10
SQ340B10 1-Type Hexagon Nut
SQ1201030 Stud M10X30
A3206-1008203 Exhausting joint pipe
A44F1-1008240 Bracket
SQ1841025 Bolt M10X25
SQ1840825 Bolt M8X25
SQ1840820TF2 Bolt M8X20
A3506-1118250 Oil inlet hose
A30-1118021 Fuel inlet hose joint
150-1118031B Shim
Q/YC149-14 Sealing washer14
475D-1118211 Supercharger Oil Inlet Joint
A35H2-1118040 压气机出口联接管焊接件
SQ150B0825 bolt
SQ40108 Plain Washer
SQ40308 Spring lock washer B
SQ340B08 1-Type Hexagon Nut
A10F9-1008117A Air intake connective pipe bracket
M3000-1008103 Connecting hose
150-1118012B Turbocharger Gasket
150-1118001 Stud
M3000-1008206B Nut
SQ1840825TF2 Bolt M8X25
430D-1118343A Fuel return joint
Q/YC149-24 复合式密封垫圈24
430D-1118301B Shim
J3200-1118340C Supercharger Oil Return Pipe
M3600-1118301A GASKET OIL RETURN
A44F1-1118100-181 TURBOCHARGER
A30-1118022 Shim
SQ150B1050TF2 Bolt M10X50
SQ40110 Washer 12
SQ340B10 1-Type Hexagon Nut
A10F2-1119504A intake pipe bracket, intercooler
SQ618B04 螺塞NPT1
A6500-1303040 WATER OUTLET PIPE
Q/YC198-12 螺塞M12X1.5
Q/YC149-12 Sealing washer12
6105Q-1303015 Outlet manifold gasket
Q/YC1820820 Bolt M8×20
SQ40308 Spring lock washer B
SQ40108 Plain Washer
E24L1-1305040A Drain valve assembly
150-1305015 Selector rod
SQ5003220 Pin 3.2X20
6105Q-1305010A Water drain valve component
SQ340B08 1-Type Hexagon Nut
SQ40308 Spring lock washer B
SQ40108 Plain Washer
SQ1200825 Stud M8×25
377A-1303011 Thermostat cover
A3000-1303012A Thermostat cover washer
530-1306004 Thermostate
A3000-1303014 Thermostat seat
291-1306028A Discharge pipe joints
A3000-1303016A Rubber tube, partial circulatioin
SQ1200822 螺柱M8×22
6105Q-1303013 Thermostat seat sheet
SQ618B03 Plug NPT3
151-1307017A Heater water return connector
J62F3-1307053 付水箱接管支架
SQ40108 Plain Washer
SQ150B0835 hexagon headed bolt
A3000-1307005 Rubber Pipe
A3100-1307004B 水泵垫片(II)
A3100-1307010F Water pump part
SQ1841065TF2 Bolt M10X65
SQ1841075TF2 Bolt
A10F9-1307241 Brace,Tube
SQ1841455TF2 螺栓M14X55
SQ150B0830 Bolt
SQ40308 Spring lock washer B
A10F9-1307250 Inlet pipe assembly, coolant pump
SQ1841020TF2 Bolt
M67S1-1308150 Fan component element
A1098-1308102 Saucer
SQ1841235TF2 Bolt M12X35
A1099-1308300 Fan shaft parts
G3105-3701040 Generator belt
SQ1841032TF2 Bolt M10X32
A3206-1005360A Flywheel & Ring Gear Assy.
YC24-B1224 圆柱销12X24
YC209-122141FL Oil seal
SQ1841245TF2 Bolt M12×45
SQ1841235TF2 Bolt M12X35
SQ340B10 1-Type Hexagon Nut
SQ40310 Spring Washer10
SQ1201035TF2 螺柱M10×35
6QA1-1600016 Cover – Flywheel housing
SQ1840612 bolt M6×12
B3000-1600021 Plate,Cover
L3800-1600411 Plug,O Ring
A3200-1600401B Housing,Flywheel
SQ1841445TF2 螺栓M14×45
6105Q-1600011 Plain pin
6-1005011 bearing gasket
GB/T276-6205-2RS Deep groove ball bearings
6QA1-1005044A BOLT-FLYWHEEL
SQ40110 Washer 12
SQ40310 Spring Washer10
SQ150B1030 bolt
J62F3-3407100 Steering pump
YC208-M02360F O形圈2.4X23.6
B3321-3407003 Oil inlet connector
M6000-3407002 Transmission bush
SQ1841020TF2 Bolt
A10F9-3509040 气泵进气管
SQ1841025TF2 Bolt M10X25
A3000-3509024 Tube,Cpr Water Outlet
A44F1-3509044A Rubber Pipe
B3206-3509020 Air inlet connector of Air compressor
G3220-3509017 Lock Nut
G4606-3509014 Seal washer
E0300-3509015 Air compressor block
L3000-3509009A GASKET,HYDRAULIC PUMP
A3100-3509005 Tube,Cpr Water Inlet
6QA6-1307017 Pipe bolt
Q/YC149-14 Sealing washer14
A3000-3509018 Air compressor gear
SQ340B10 1-Type Hexagon Nut
SQ40310 Spring Washer10
SQ40110 Washer 12
SQ150B1080 Bolt M10X80
M3000-1002701A Oil Pass Screw
Q/YC149-10 Seal washer10
A3515-3509240 Compressor inlet pipe assembly
SQ1840870 Bolt M8X70
SQ150B1040 Bolt M10X40
A440B-3509100C Air Compressor
231-3509015A 排气接头座
SQ80512 UNION,MALE
SQ150B10130 Hexagon Socket Head Cap Screw
L3002-1307042 BELT,V RIBBED
SQ150B1045 hexagon headed bolt
SQ150B0855 Bolt M8X55
A3100-3701052 Adjusting board
SQ40108 Plain Washer
SQ40308 Spring lock washer B
SQ340B08 1-Type Hexagon Nut
530-1009002 Washer
L30L2-3701100A ALTERNATOR
SQ40310 Spring Washer10
SQ40110 Washer 12
SQ340B10 1-Type Hexagon Nut
A3100-3701021B Bracket,Alternator
SQ150B0840 hexagon headed bolt
SQ150B0825 bolt
G0202-3708020A Starter pad
G5800-3708100G MOTOR-ENG STRTR
SQ40312 Spring washer 12
SQ150B1240TF2 Bolt M12X40
A10F9-3800200 Oil pressure sensor
A10F9-3800100 Coolant temperature sensor
YC5-0306 Rivet
1128336210008 ENGINE WIRING HARNESS
Q1201030TF2 Studs bm = 1.25 d
Q40310 Spring Washer
Q340B10T13F2 1-Type Hexagon Nut
