Description

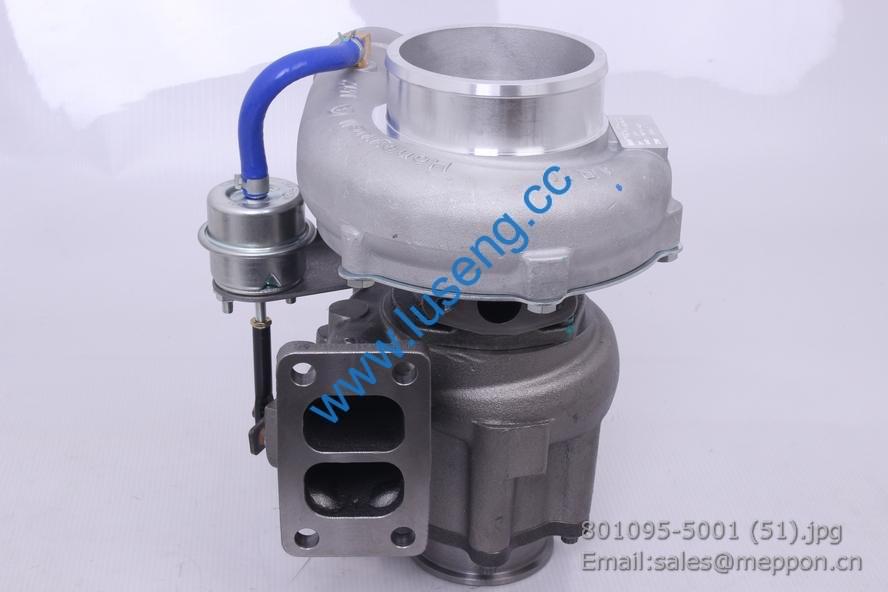

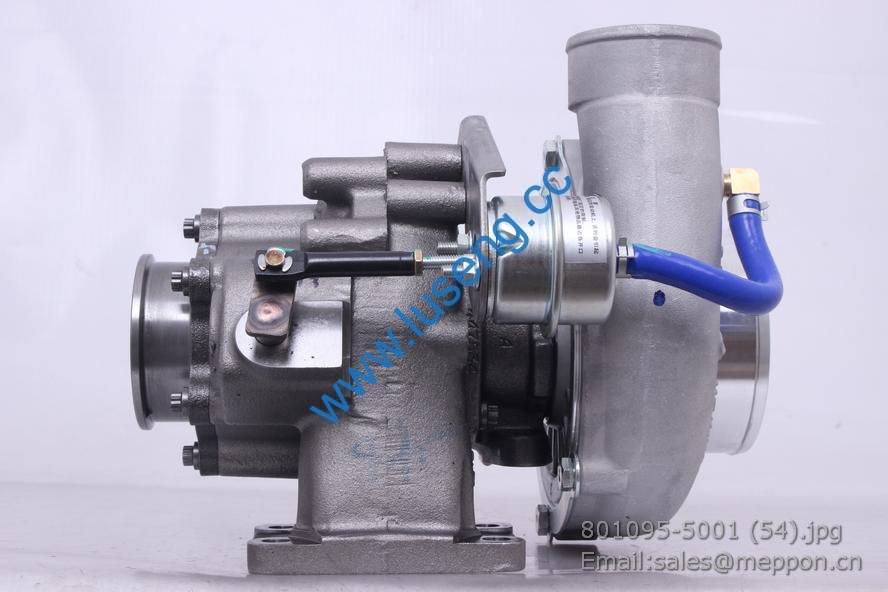

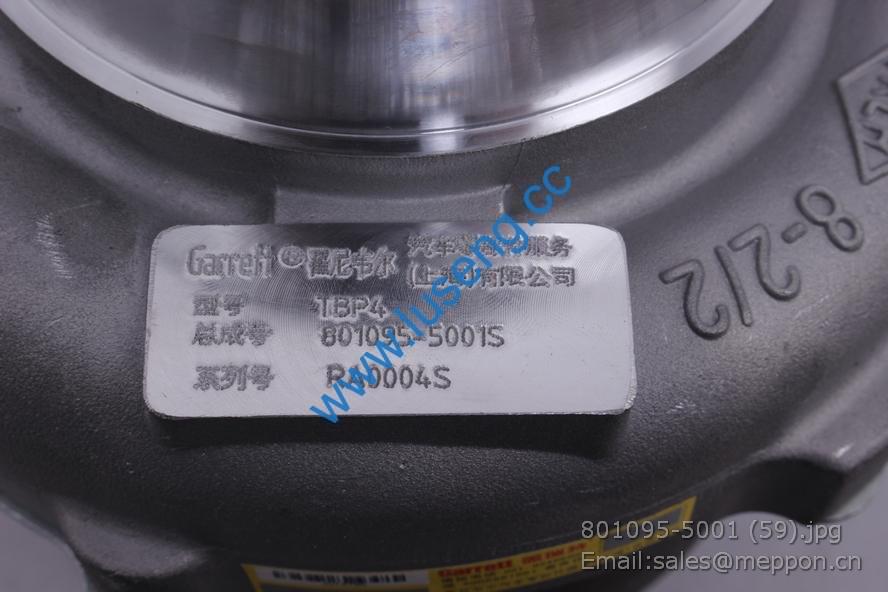

J610J1118100135 YUCHAI turbocharger 801095-5001S 6J220-30

1 GB/T6172.1-2000 螺母 M10/Nut 2
2 GB/T73-1985 螺钉 M10×30/Screw 2
3 A2302112 拨叉轴/Fork shift shaft 2
4 A2504086 拨叉/Shifting fork 1
5 A2302113 拨叉弹簧/Fork spring 2
6 B2402111D 拨叉/Shifting fork 1
7 B2502012N 中央差速器支承壳/Axle housing 1
8 A2302108 定位销/ Anchor pin 2
9 B2402106M 调整垫片/ Spacer 2
10 B2402081D 差速锁离合器/Differential lock clutch 1
11 B2402082D 弹簧挡圈/Spring ring 1
12 B2402112D 差速锁离合器/Differential lock clutch 1
13 B2402109M 螺栓(M8×16) Bolt 2
14 B2402107M 螺环锁片/Lock blade 2
15 B2502040D 中间套/Space washer 1
16 A2504076 定位销/Set pin 1
17 B2502011D 螺栓/Bolt 12
18 B24020113D 垫片/Spacer washer 1
19 B2502021ND
主动锥齿轮支撑壳/Main dive conical gear
supporting sheel
1
20 A2300129C 螺塞/Screw plug 1
21 GB/T5785-2000 螺栓 M12×1.5×40/Bolt 16
22 GB/T119.2-2000 销 12×32/Pin 1

23 B2502051ND 轴间差速器壳盖/Axle differential Cover 1
24 A2305017B 螺塞/Screw plug 1
25 GB/T5783-2000 螺栓 M8×12/Bolt 1
26 GB/T862.2-1987 垫圈 8/Washer 1
27 B2500062 螺环锁片/Lock blade 1
28 B2402079D 六角螺母/Hexagonal nut 1
29 B2402078A-D 传动凸缘/Drive flange 1
30 B2402077D 挡尘罩/Dust cover 1
31 B2502053D 螺环/Screw collar 1
32 B2502055M 油封/Oil seal 1
33 GB/T276-1994 滚珠轴承/bearing 6313/Ball 1
34 T2502061 主轴/Input shaft 1
35 T2502062 承推垫圈/thrust washer 1
36 B2502052D 接合套/Fitting sleeve 1
37 B2502063D 轴套/Bushing 1
38 B2502081DA 三联齿轮/Gear 1
39 B2502080DA 组合齿轮/Side gear 1
40 B2502066D 差速器壳/ Differential housing 1
41 T2502074 带槽螺母/Grooved nut 1
42 T2502076 承推垫圈/Trust washer 1
43 B2502067D 差速器壳/ Differential housing 1
44 B2502075D 螺栓/Bolt 12
45 B2502073D 轴套/Bushing 1

46 B2502071D 贯通轴齿轮/Strsight-through gear 1
47 GB/T276-1994 滚珠轴承 6216/Ball bearing 1
48 B2502069DA 球面垫圈/Washer 4
49 B2502064SY5 行星齿轮/Planetary gear 4
50 B2502068SY5 衬套/Bushing 4
51 B2502065SY5 十字轴/spider 1
52 B2402079D 六角螺母/Hexagonal nut 1
53 B2502023DA 从动圆柱齿轮/Driven cylindrical gear 1
54 GB/T297-94
圆 锥 滚 子 轴 承 32313B/Tapered roller
bearing
1
55 B2402074D 隔环/Busing 1
56 B2502024D 隔套/Spacer 1
57 GB/T297-94
圆 锥 滚 子 轴 承 32314B/Tapered roller
bearing
1
58 B2502022DL 主传动主动齿轮/Main drive gear 1
59 B2402096D 螺栓/Bolt 16
60 B2402100D 右螺环总成/Right screw collar assembly 1
61 GB/T297-94 圆锥滚子轴承 33115/Tapered roller bearing 2
62 B2402084D 差速器壳/ Differential housing 1
63 B2502031DL 主传动被动齿/Main drive driven gear 1
64 B2402095D 差速器壳/ Differential housing 1
65 B2402097D 螺栓/Bolt 12
66 B2402083D 左螺环/Left screw collar 1
67 B2402089D 衬套/Bushing 4
68 B2402091D 行星齿轮/Planetary gear 4

69 B2402088DA 球面垫圈/Washer 4
70 B2402087D 十字轴/Spider 1
71 B2402093D 半轴齿轮/Side gear 2
72 B2402092D 止推垫圈/Thrust washer 2
