Description

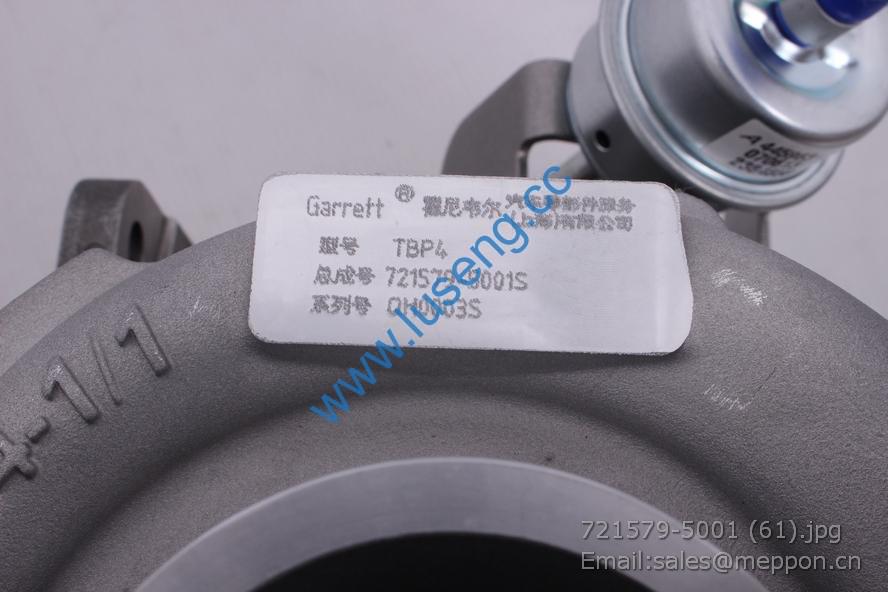

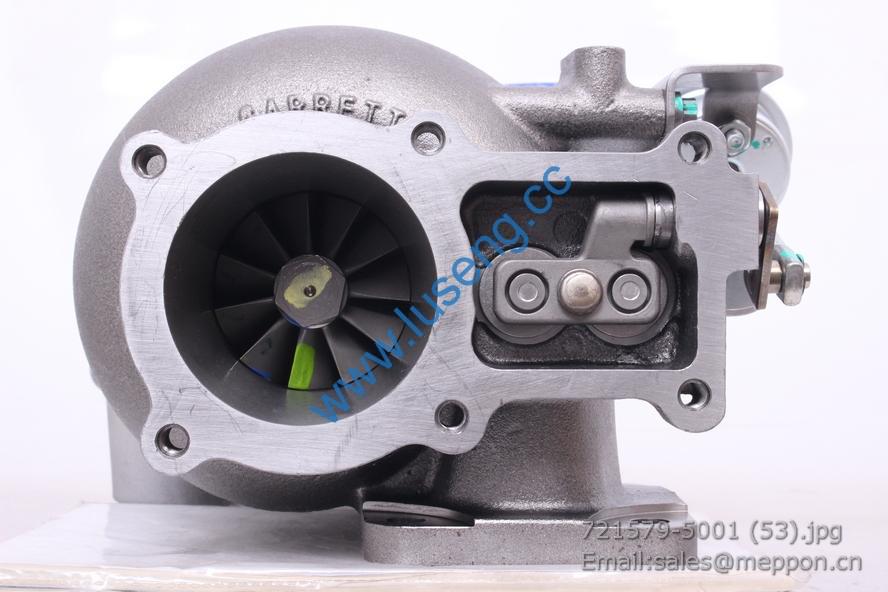

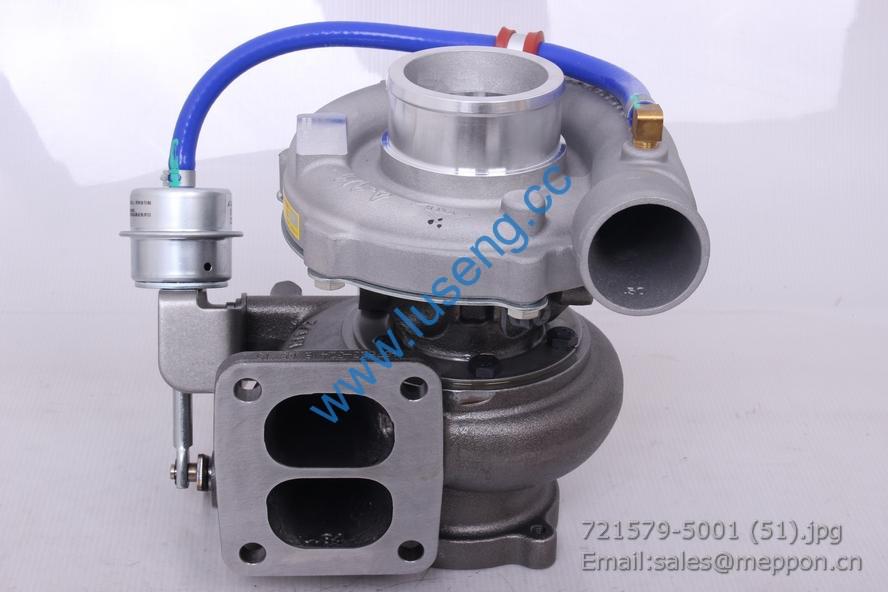

G3300-1118020-135 YUCHAI turbocharger 721579-5001S G3300-1118020

24 GB 898 螺柱 Bolt AM10×45 3
25 GB/T 97.1 垫圈 Washer 10 3
26 GB 93 垫圈 Sping washer 10 3
27 GB/T 6170 螺母 Nut M10 3
28
X0281002
315
A 265 560 939 转速传感器 DG6 Tachometer generator DG6 1
凸轮轴位置
传感器
29 GB/T 5783 螺栓 Bolt M6×12 1
30 GB 93 垫圈 Sping washer 6 1
31 GB/T 97.1 垫圈 Washer 6 1
32 GB/T 5783 螺栓 Bolt M10×25 3
33 GB 93-87 垫圈 Sping washer 10 3
34 HA0173 4100QB-01-026 齿轮室底板垫片 Washer 1
35 HA01943L YN33CR-01-027-L 齿轮室 Gear chamber 1
36 HA01501 4100QBZL-01-028 齿轮室垫片 Washer, gear chamber 1
37 GB/T119.1 销 Pin 8 m6×26 2

1 HA0302 4100QBZL-03.03.02 加油口盖合件 Oil filler cap seaming 1
2 HA03005 YN33-03.03B-001 缸盖罩合件 Cylinder head cover riveting seaming 1
3 HA03282 YN33-03-014C 缸盖罩垫片 Washer, cylinder head cover 1
4 HA01115 4100QB-01-001 气缸盖螺栓 Cylinder head bolt M14×173 4
5 HA03218 4100QBZL-03-020-FT 前吊耳 Front hanger 1
6 GB/T 5783 螺栓 Bolt M10×25 2
7 GB 93 垫圈 Sping washer 10 2
8 GB/T 97.1 垫圈 Washer 10 2
9 HA03006L YN33CRD-03.01-L 气缸盖部件 Cylinder head component 1
10 HA01116 4100QB-01-002 气缸盖螺栓 Cylinder head bolt M14×125 10
11 495QA-01.01-007 碗形塞 Pug φ32 6
12 HA11039 TY33-24V 电热塞 Electric-heated plug 4
13 HA01117 4100QB-01-003 气缸盖螺栓 Cylinder head bolt M14×111 4
14 HA010079 YN33CRD-01-005 气缸盖垫片 Washer,cylinder head 1
15 GB/T 97.1 垫圈 Washer 8 5
16 GB 93 垫圈 Sping washer 8 5
17 GB/T 5783 螺栓 Bolt M8×30 5
18 HA0787 YN33-07-001 EGR 通道 EGR channel 1
19 HA0331 495QA-03-008 缸盖后盖板垫片 Washer,rear cover plate of cylinder cover 1
20 GB/T 5783 螺栓 Bolt M8×40 1
21 GB 93 垫圈 Sping washer 8 1
22 GB/T 97.1 垫圈 Washer 8 1
23 HA0336 4100QB-03-015 密封套 sealing sleeve 4
