Description

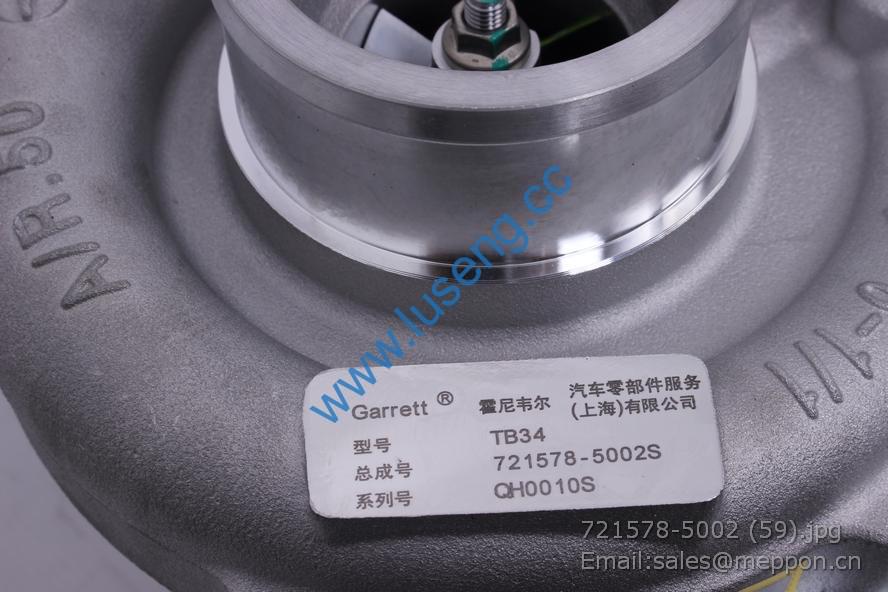

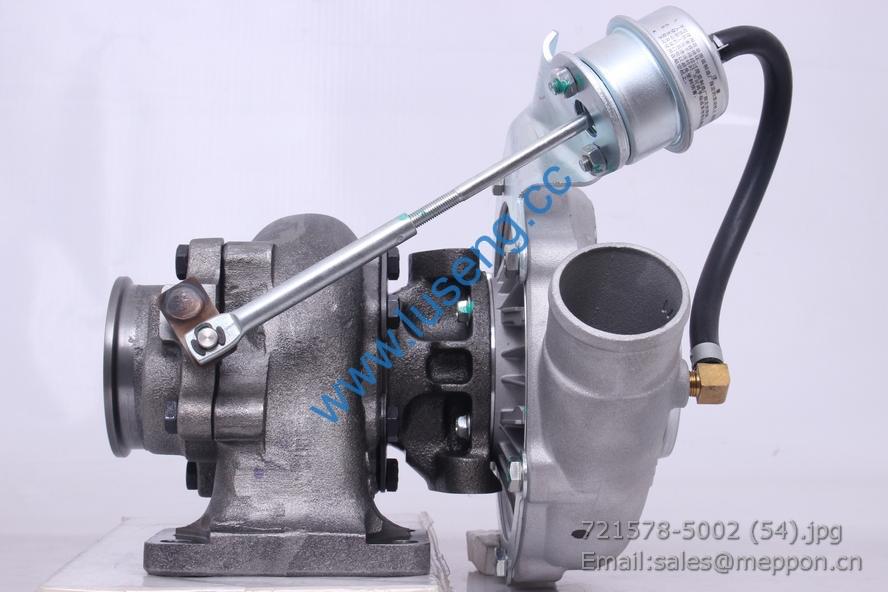

G0400-1118020-135 YUCHAI turbocharger 721578-5002S Bus

70 HA01377 4102QB-01.01-003 中间主轴承盖Ⅱ、Ⅲ、Ⅳ Middle main bearing cover 3
71 HA0195 4102QB-01-007 中间主轴承下瓦 Bottom half,middle main bearing 3
72 HA0195 4102QB-01-006 中间主轴承上瓦 Upper half,middle main bearing 3
73 HA01985 YN33-01.14 活塞冷却喷嘴总成 Piston cooling nozzle Assy 4
74 HA01376 4102QB-01.01-002 前主轴承盖 Front main bearing cover 1

1 HA010702 YN33CR-01.07.02C 呼吸器罩盖焊合件 Breather assy 1
2 PKD-4/150 不锈钢卡箍 Clamp 16~25 2
3 HA010268 YN33CRD-01.16.01A-003 呼吸器回油管
Breather fuel intake pipe
module
1

4 GB/T 5789-1986 螺栓 8X55-8.8 级 2
5 JB/T 982-77 组合垫圈 8 2
6 HA01071 YN33CR-01.07D-001 呼吸管出气胶管 1

1 HA010114L YN33CR-01-029C-L 齿轮室盖 Gear house cover 1
2 HA2307 4100QB-23.02-003 转向泵垫片 Gasket, Pump-power steering 1
3 GB/T 5783 螺栓 Bolt M8×30 9
4 GB 93-87 垫圈 Sping washer 8 9
5 GB/T 97.1 垫圈 Washer 8 9
6 HA2374L 4100QB-23.02-006-L 转向泵安装孔盖板 Steering pump cover 1
7 GB/T 5783 螺栓 Bolt M10×20 2
8 GB/T 97.1 垫圈 Washer 10 2
9 GB 93-87 垫圈 Sping washer 10 2
10 GB 898-88 螺栓 Bolt AM10×65 3
11 GB 93-87 垫圈 Sping washer 10 3
12 GB/T 97.1 垫圈 Washer 10 3
13 GB/T 6170 螺母 Nut M10 3
14 HA01012 YN33CR-01.16-HT 过轮轴承合件 Expansion pulley seaming 2
15 GB/T 5783 螺栓 Bolt M6×12 2
16 GB/T 97.1 垫圈 Washer 6 2
17 GB 93 垫圈 Sping washer 6 2
18 HA302 YFR055080.0 前油封 Front oil seal 55×80×12 1
19 GB/T 5782 螺栓 Bolt M8×55 4
20 GB/T 97.1 垫圈 Washer 8 4
21 GB 93 垫圈 Sping washer 8 4
22 HA01999L YN33CR-01-031-L 喷油泵齿轮盖板 Injection pump gear cover 1
23 HA01838 4100QB-01-030B 提前器罩壳垫片 Advancer cover washer 1
