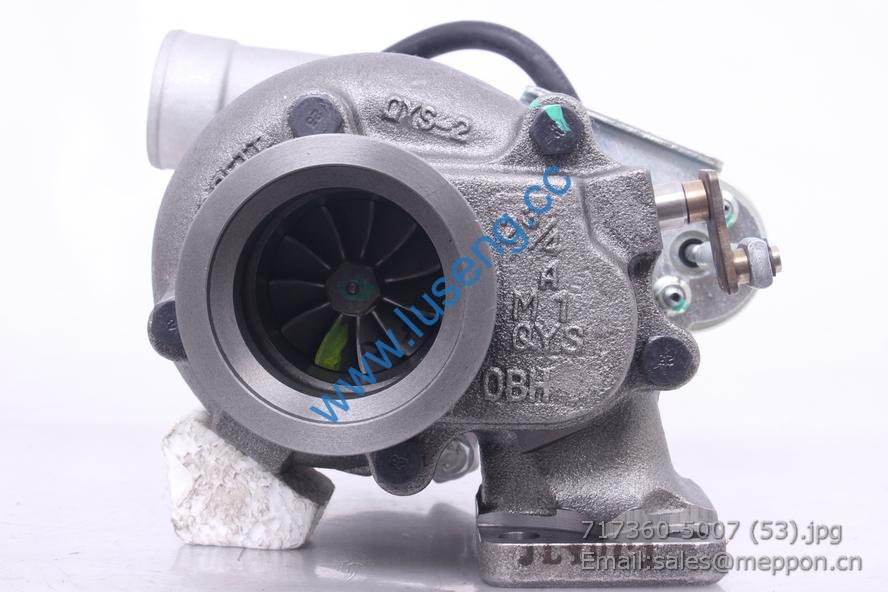

G0106-1118020 YUCHAI turbocharger 717360-5007S Bus

Description

G0106-1118020 YUCHAI turbocharger 717360-5007S Bus

1. GB/T 6170-2000 螺母 Nut M8 10
2. GB93-1987 垫圈 Sping washer 8 10
3. GB898-88 螺柱 Bolt AM8×45-8.8 8
4. HA11241 4100QB-11-002-F P 型喷油器压板 Injector pressure plate ,P type 4
5. GB982-77 组合垫圈 Combination washer M6-A 8
6. HA11243 4100QB-11-004-F 铰接螺栓 Hangle bolt 4
7. HA110053 4100QBZL-11.05B-ZQ 喷油嘴回油管总成
Oil return pipe assy, injector
nozzle
1

8. GB/T 6170-2000 螺母 Nut M6 2
9. GB93-1987 垫圈 Sping washer 6 3
10. GB/T 97.1-2002 垫圈 Washer 6 3
11. GB/T 5783-2000 螺栓 Bolt M6×20 2
12. GB/T 6170-2000 螺母 Nut M10 4
13. GB93-1987 垫圈 Sping washer 10 4
14. HA01077 4100QB-01-098 φ10 平垫 washer 3
15. GB897-88(AM10×30-8.8) 螺柱 Bolt 3
16. 4100QB-01.12B-003 喷油泵凸轮轴螺母 Nut,fuel pump camshaft 1
17. 4100QB-01.12B-002 弹簧垫圈 Sping washer 1
18. HA01657 4102QBZL-01.12 提前器及齿轮合件 Advancer and gear assy 1
19. HA110031 BQK4A-WX-Z41 喷油泵总成 fuel pump 1
20. HA11563 4100QBZL-11.03C 柴滤出油管 Diesel filter outlet pipe 1
21. HA11562 4100QBZL-11.02C 柴滤器进油管 Diesel filter inlet pipe 1
22. HA11564 4100QB-11.07A 输油胶管夹 Fuel delivery rubber tube clamp 1

23. HA010107 YN33PE-01-036-KD 燃油泵支撑 Fuel pump support 1
24. GB/T 5783-2000 螺栓 Bolt M8×16 2
25. GB/T 97.1-2002 垫圈 Washer 8 4
26. HA11996 CX0708B 柴油滤清器总成 Fuel filter assy 1
27. GB898-88 螺柱 Bolt AM8×22 2
28. GB/T 96.1-2002 垫圈 Washer 10 1
29. HA11959 4100QBZL-11.01B-001 Ⅰ缸高压油管 Ⅰcylinder High-pressure fuel pipe 1
30. 4100QBZL-11.01B-002 Ⅱ缸高压油管 Ⅱcylinder High-pressure fuel pipe 1
31. 4100QBZL-11.01B-003 Ⅲ缸高压油管 Ⅲcylinder High-pressure fuel pipe 1
32. 4100QBZL-11.01B-004 Ⅳ缸高压油管 Ⅳcylinder High-pressure fuel pipe 1
33. HA11160 4100QB-11.01.03A-002 单缸管夹橡胶垫 Rubber pad, single,cylinder pipe clamp 2
34. HA11918 4100QB-11.01.03A-001 单缸管夹夹板 Single cylinder pipe clamp 1
35. GB/T 5783-2000 螺栓 Bolt M6×25 1
36. HA11520 KBAL-P035(CKBAL85P978)喷油器总成 Injector assy P 型嘴 4 按配套
37. HA11910 4100QB-11.01.01A-001 三缸管夹下夹板 3 cylinder pipe clamp lower 1
38. HA11911 4100QB-11.01.01A-003 三缸管夹上夹板 3 cylinder pipe clamp up 1
39. HA1111 4100QB-11.01.01A-002 三缸管夹橡胶垫 Rubber pad, 3 cylinder pipe clamp 2
40. HA11920 4100QBZL-11.01.04-001 四缸管夹下夹板 4 cylinder pipe clamp lower 1
41. HA11165 4100QB-2-11.01.04-002 四缸管夹橡胶垫 Rubber pad, 4 cylinder pipe clamp 2
42. HA11921 4100QB-2-11.01.04-003 四缸管夹上夹板 4 cylinder pipe clamp up 1
