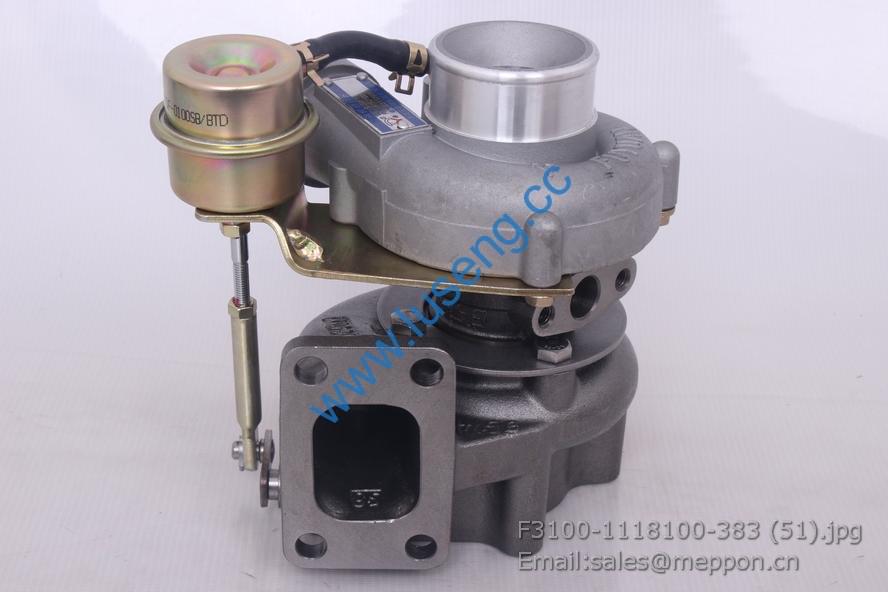

F3100-1118100 turbocharger yuchai

1010010-X2 Oil collector assembly
1009030-X2 DIPSTICK
1009025-55D TUBE,OIL GAUGE
1009022-X2 “O”Sealig Ring
1009019CB1 Washer
1009018CB1 Drain Plug
1009012-X2 Seal gasket
1009010-5X4 Oil pan assembly
1008074-C012 Stud -Supercharger
1008073-F001 Nut -Supercharger
1008073-C012 Nut -Supercharger
1008055-X2 Pad
1008051-X2 Pad
1008021B4X4 Manifold,Exhaust
1008014-4B1B1 Air preheater seat
1008013-X2 Lining-air preheater seat
1008011-55D Manifold,Air Intake
1007090-X2 Rock arm
1007082-X2A1 Exhaust valve seat
1007081-X2A1 Intake valve seat
1007061AX2 Tappet
1007050-X2A1 push rod
1007035-X2 Oil seal assy – valve guide
1007032-X2 Inlet and outlet duct
1007029-B1 Lock pad -exhausting valve
1007028-X2 Lock pad -intake valve
1007024-X2 Sheet of spring seat,valve
1007022-X2 Retainer,Valve Spring
1007021-X2 Outer valve spring
1007012-X2 VALVE EXHAUST
1007011-X2 VALVE INTAKE
1006057-X2 Bush,5th journal of camshaft
1006056-X2 Bush,4th journal of camshaft
1006053-X2 Bush,3rd journal of camshaft
1006052-X2 Bush,2nd journal of camshaft
1006051-X2 Bush,1st journal of camshaft
1006043-C012 Cover-timing mid gear shaft
1006041-C012 Timing middle-gear shaft
1006030-55D Mid timing gear assembly
1006022-X2 Washer
1006021-X2 Bolt-camshaft timing gear
1006019-X2 Support,Camshaft Thrust
1006018-55D Timing gear-camshaft assembly
1006016-55D Camshaft
1005980-C012 Main shaft bushing
1005950AX2 Rear oil sealing seat and rear oil sealing assembly assembly
1005160-X2 Thrust shim assy.
1005128-X2 Bolt
1005121A55D Housing,Flywheel
1005118-X2 Bolt
1005115-C298 Gear ring assy,flywheel
1005102-X2 Seal washer
1005078-X2 Bolt-crankshaft bearing cover
1005051-X2 Nut
1005041-X2 Timing pointer-crankshaft
1005040-C012 Reducer assy
1005037-X2 Shaft sleeve,gearbox input shaft
1005031-55D Timing gear-crankshaft
1005021-C012/P CRANKSHAFT
S1005127-55D 左支架-飞轮壳
S1005126-55D 右支架-飞轮壳
S8103070-C313 Tension pulley & bracket assembly
1601310-E3 Clutch plate
S1601210-C517 Driven Disc Assy.
4001025-C012 Mid gear inlet pipe assembly
4001018-C012 Washer
4001017-C012 Middle gear shaft,air compressor
4001015-C012 Hydraulic pump, mid gear assembly
4001011-X12 Hydraulic pump gear, crankshaft
1004110-55D Piston ring assy
1004100-C012 Bearing shell, connecting rod assembly
1004045-C012 Connecting rod assembly
1004022-X3 Spring collar for hole
1004021-X3 PIN-PSTN GDEN
1004016-55D PISTON-ENG
1004001-C012 Lubricating oil cooling nozzle device
1003048-X2 OIL FILLER CAP
1003047-X2 Sleeve-cover gasket
1003046-X2 Sealing gasket
1003040-55D Cylinder head assembly
1003036-C012 BOLT CYLINDERHEAD
1003030-C012 Cylinder washer assy
1003028-X2 Cup plug piece
1003027AX2 Cup plug piece
1003024-X2 Plug
1003023-X2 Coolant spray elbow
1003022-X2 Copper sleeve
1003020-55D/P Cylinder Head Assy.
1014049-5X4 Hose clamp
1014039-5X4 Clamp-fuel return pipe
1014038-5X4 Fuel Return Pipe
1014030-C109 Oil-gas seperator assembly
1014029-X2 Hose clip 1
1014022-55D Breather hose
S1014034-C122 Connecting hose
1002960-55D Gear chamber cover
1002087-55D bolt
1002082AX2 Partition gasket
1002080-55D Gear chamber partition assembly
1002076-X2 Coolant inlet sealing
1002069-C012 Gasket
1002065AX2 Cover assembly-gear chamber cover
1002039-D1 Washer
1002031-X2 Bowl-type plug 18
1002031-D1 Bowl-type plug 18
1002028AX2 Flange nut
1002027AX2 Stud
1002026-X2 Cylinder Sleeve
1002019-X2 Cup plug piece
1002017-X2 Plug,O Ring
1002013-X2 Bowl-type plug 53
1002010-55D/P CRANKCASE COMPLETE ASSEMBLY
3818020-X2 Oil pressure alarm
1001067-C012 Front hanger
1001066-C105 Rear shackle
1001042-X2 Engine bracket assembly
