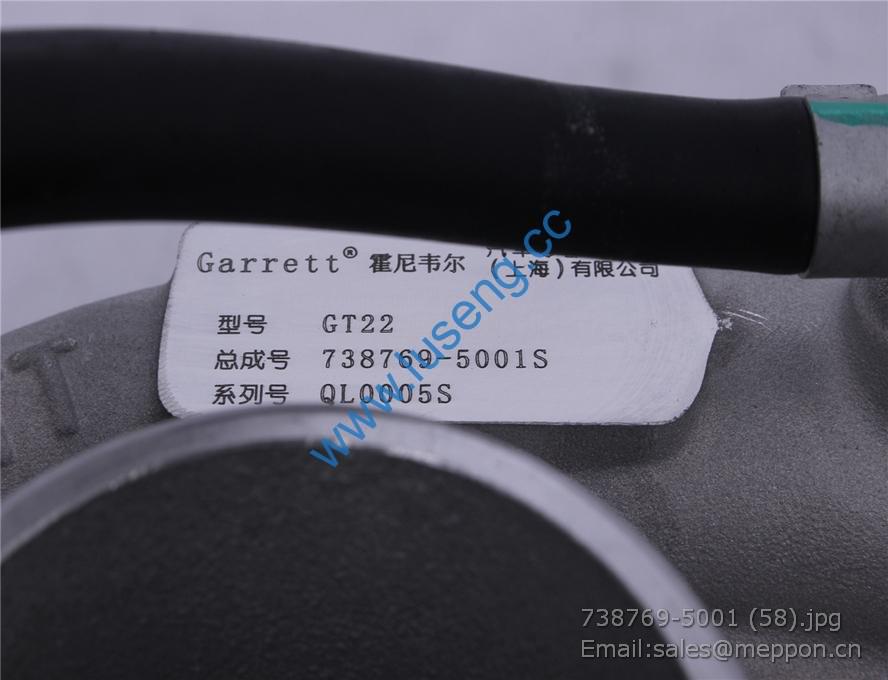

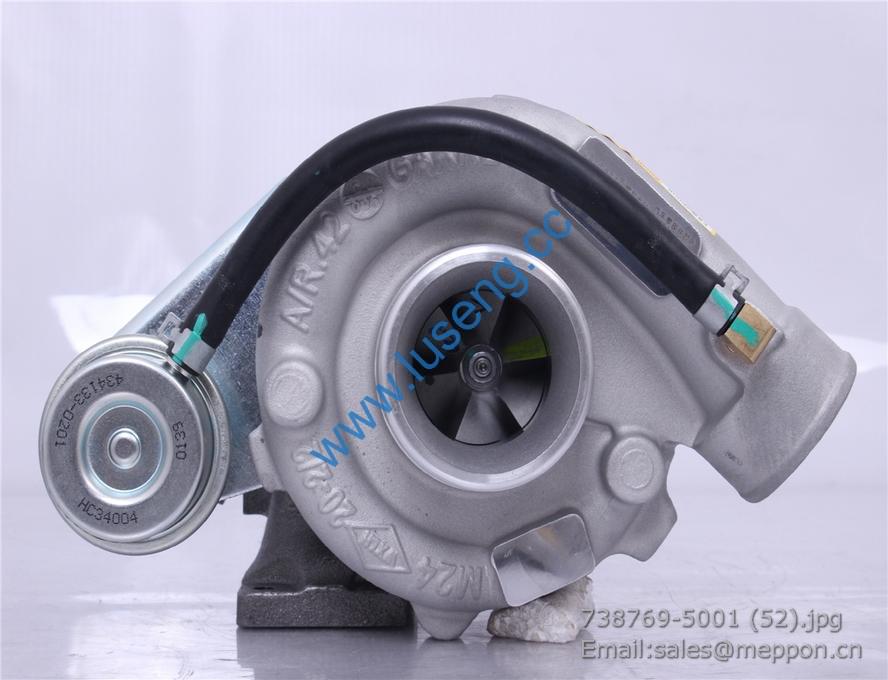

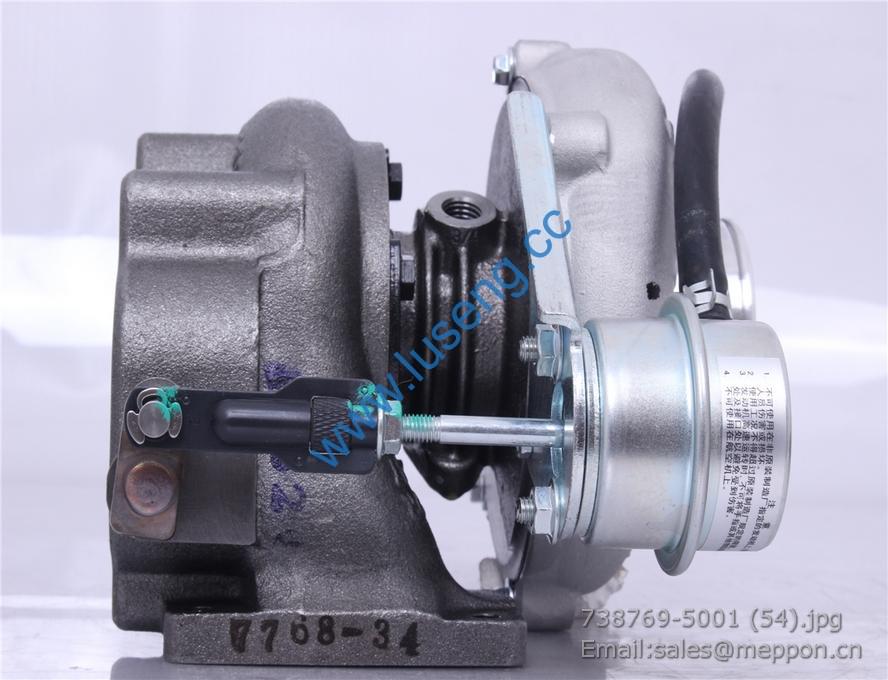

E049339000082 FOTON turbocharger 738769-5001S

1 φ18.5X38X1 增压器回油管法兰垫片 washer 1
2
HA100005
34
YN38CRE-01.15.01 机冷器出水管焊合件 Exhaust pipe of cooler 1

3 GB 93 垫圈 Sping washer 6 2
4 GB/T 5783 螺栓 Bolt M6×16 2
5 4100QB-01.08-004 水阀操作杆护套 Operation rod shield bush 1
6 HA0152 4100QB-01.08.01 水阀操作杆支撑 Water valve operation rod supporting 1
7 GB/T 5783 螺栓 Bolt M8×16 2
8 GB 93 垫圈 Sping washer 8 2
9 GB/T 97.1 垫圈 Washer 8 2
10 GB/T 91 销 Pin 3×25 1
11 HA01091 4100QB-6105Q-1305010A 气缸体放水阀总成 Drain valve assy 1
12 GB/T 6170 螺母 Nut M8 2
13 GB 93 垫圈 Sping washer 8 2
14 GB/T 97.1 垫圈 Washer 8 2
15
HA100011
14
YN33CRD-110071 机油压力传感器 Oil pressure sensor 24V 1

16 GB 898 螺柱 Bolt AM8×35 2
17 GB/T 5783 螺栓 Bolt M8×30 4
18 GB 93 垫圈 Sping washer 8 4
19 GB/T 97.1 垫圈 Washer 8 4

20 HA01408 4100QBZL-01.08-008 放水开关接管 Drain cock connector 1
21 HA01892 YN33-01.15.01 机油冷却器总成 Oil cooler assy 1

23 GB/T 819.1 十字槽沉头螺钉 Cross-recessed countersunk screws M8×20 4

24 HA01541 4100QBZL-01.15-002 机油冷却器连接板 Connecting board 1
25 HA01540 4100QBZL-01.15-001 机油冷却器连接板垫片 Washer, connecting board 1
26 GB/T 97.1 垫圈 Washer 8 4
27 GB 93 垫圈 Sping washer 8 4
28 GB/T 5782 螺栓 Bolt M8×25 4
29 HA010034 4100QBZL-01.08-001-KY 水阀操作杆 Water valve operation rod 1
30 HA01942 YN33CR-01.15-004 机冷器回水胶管 Exhaust pipe of cooler 1
31 ZB J15 001-87 喉箍(不锈钢) Clamp d20 2

1 4100QB-03.02.01A-002 气门摇臂衬套 Valve-rocker arm bush 8
2 4100QB-03.02-006 垫圈 washer φ31 8
3 GB 894.1 挡圈 Retainer ring 20 2
4 4100QB-03.02-007 前辅助摇臂座 Front rocker arm seat 1
5 4100QB-03.02-005A 碗形塞 Blow plug φ14 2
6 4100QB-03.02.01-001 气门摇臂 Valve rocker arm 8
7 HA03177 4100QB-03-006D 气门锁夹 Valve locking clip 16
8 HA031 4100QB-1A-03-005 气门上弹簧座 Valve upper spring seat 8
9 GB/T 1096 键 Key 8×7×22 1
10 GB/T 5783 螺栓 Bolt M12×32-8.8 1
11 GB 93 垫圈 Sping washer 12 1
12 HA01222 4100QB-01.02-002 惰齿轮挡圈 Idle gear retainer ring 1
13 HA02010 4100QB-02-002B 凸轮轴正时齿轮 Camshaft timing gear 1
14 GB/T 5783 螺栓 Bolt M8×25-8.8 级 2
15 GB 93 垫圈 Sping washer 8 2
16 HA023 4100QB-02-004 凸轮轴止推板 Camshaft thrust sheet 1
17 HA03300 YN33-03.01-004A 进气门座圈 Seat ring -intake valve 4
18 HA03308 YN33-03-001A 排气门 Exhaust valve 4
19 HA03310 YN33-03.01-003A 排气门座圈 Exhaust valve seat ring 4
20 HA03309 YN33-03-002A 进气门 Intake valve 4
21 HA03178 4100QB-03.01-005A 气门导管 Valve duct 8
22 HA03154 4100QB-03.01.01A 气门杆油封 Valve stem oil seal assy 8
23 HA024 495QA-02-005 气门挺柱 Valve tappet 8
