Description

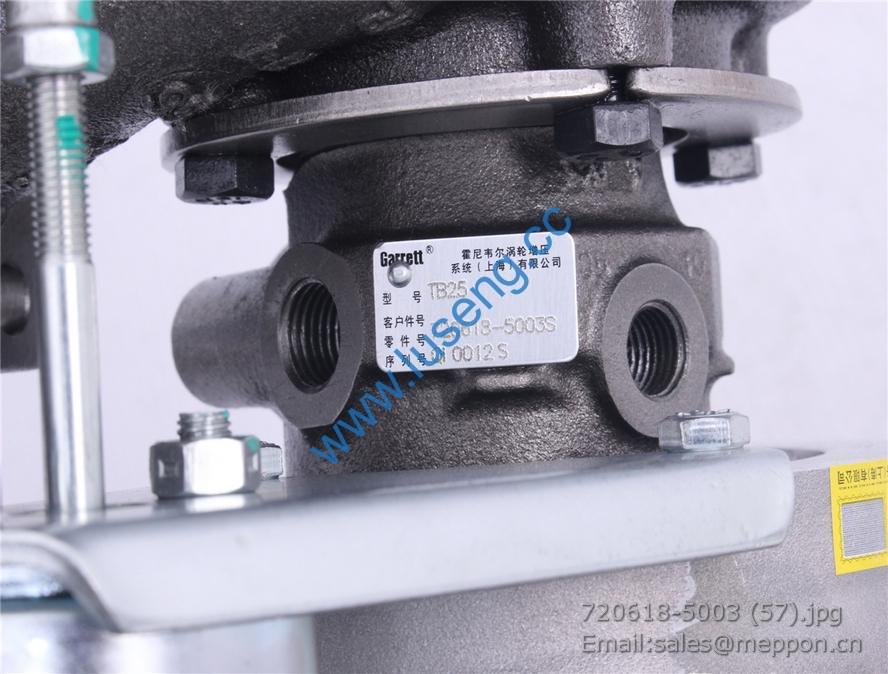

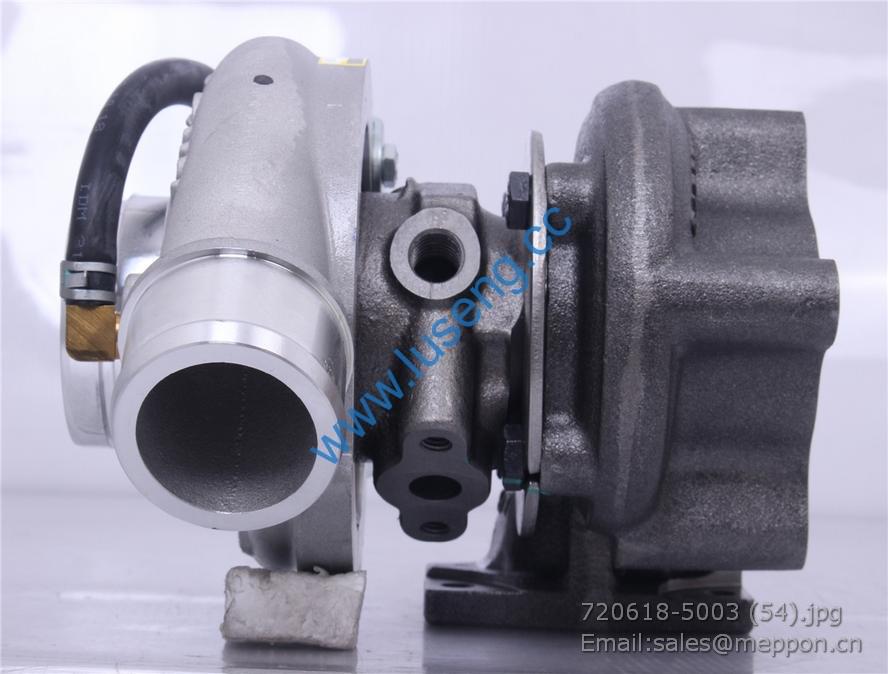

E049339000080 FOTON turbocharger 720618-5003S FTV Highway Truck

23 HA024 495QA-02-005 气门挺柱 Valve tappet 8
24 HA0345 4100QB-1A-03-003A 气门外弹簧 Valve outer spring 8
25 HA0347 4100QB-1A-03-004A 气门内弹簧 Valve inner spring 8
26 HA0230 YN33-02-001 凸轮轴 Camshaft 1
27 HA028 4100QB-2-02-006 气门推杆 Valve push rod YN36/38PE
28 4100QB-03.02-008 后辅助摇臂座 Rear rocker arm seat 1
29 4100QB-03.02-004 摇臂轴弹簧 Rocker arm shaft spring 3
30 GB 898-88 螺柱 Bolt AM10×75 4
31 GB 93-1987 垫圈 Sping washer 10 4
32 GB/T 97.1-2002 垫圈 Washer 10 4
33 GB/T 6170-2000 螺母 Nut M10 4
34 4100QB-03.02-001 摇臂座 Rocker arm seat 4
35 4100QB-03.02-003 摇臂轴 Rocker arm shaft 1
36 GB/T 6170 螺母 Nut M8×1 8
37 4100QB-03.02-002 气门间隙调整螺钉 Valve clearance adjusting screw 8
38 GB 898-88 螺柱 Bolt AM8×60 2
39 GB 93-87 垫圈 Sping washer 8 2
40 GB/T 97.1-2002 垫圈 Washer 8 2
41 GB/T 6170-2000 螺母 Nut M8 2

1 HA0658 4102QB-06-017A 小循环胶管 Rubber tube, partial circulatioin 1
2 Q68030(25~35) 橡皮软管用环箍 ø30 Clamp ø30 2
3 HA069 YN33-06.01-G 水泵总成 Water pump assy 1
4 27~50 卡箍 Clamp 2
5
6
7 HA06793 4100QBZL-06-015A-FTZ 水泵皮带轮 Water pump belt pulley 1
8
HA06751 4100QBZ-06-008B-D 风扇垫块 （40mm） Seat pad, fan 1
HA06750 4100QB-06-008B-K 风扇垫块 （22mm） Seat pad, fan 1
9 GB21-76 螺栓 M8×16 Bolt M8×16 4
10 HA0630 4100QB-06-001 锁紧垫片 Lock shim 2
11 HA06758 Z450-28-7 风扇总成 Fan assy 1
12 HA05338 4100QBZL-05.03A-KT 曲轴皮带轮 Crankshaft belt pulley 1
13 HA30103 AV17X1194Li 齿形风扇皮带 Toothed fan belt 1
14 HA19009 4100QBZL-19.02C-FT 张紧轮合件及相关零部件
Tensioner component and related parts
1
15 HA0128 495QA-01-058C 螺栓 M10×130 bolt M10×130 1
16 GB/T5783-2000 螺栓 M10×40 Bolt M10×40 3
17 GB97-85 垫圈 10 Washer 10 5
18 GB93-87 垫圈 10 Washer 10 4
19 HC292 JFWZ29C1(XY2924A) 整体式发电机 Alternator 1
20 HA01546 4100QBZL-01-060-FT 发电机支架 Alternator bracket 1
21 HA01600 4100QBZL-01-062A-FT 发电机支座 Alternator pedestal 1

1 HC088 QD2658-P 24V/4.5kW 减速起动机 Starter 1
2 GB52-76 螺母 M10 Nut M10 2
3 GB93-87 垫圈 12 Washer 12 2
4 GB898-88 螺柱 AM12×25 Bolt AM12×25 2
