Description

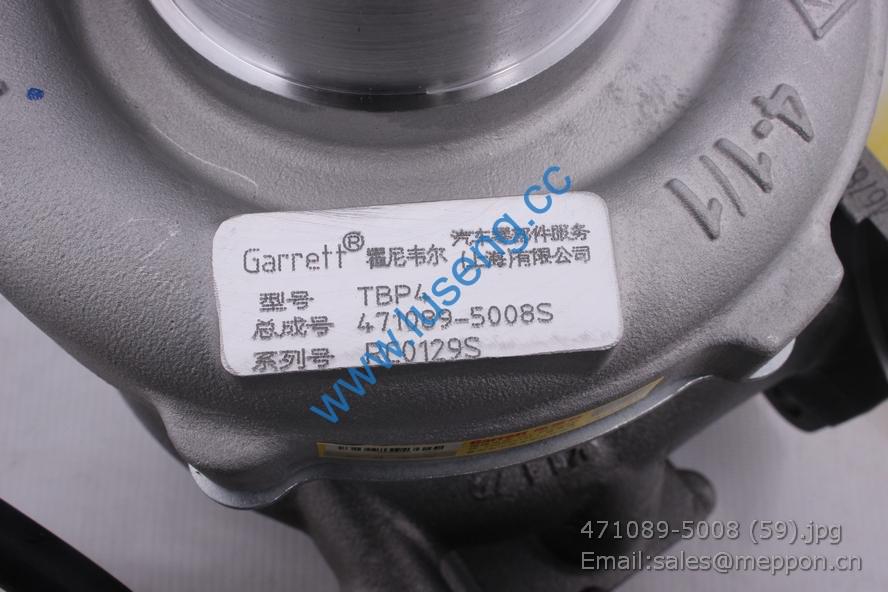

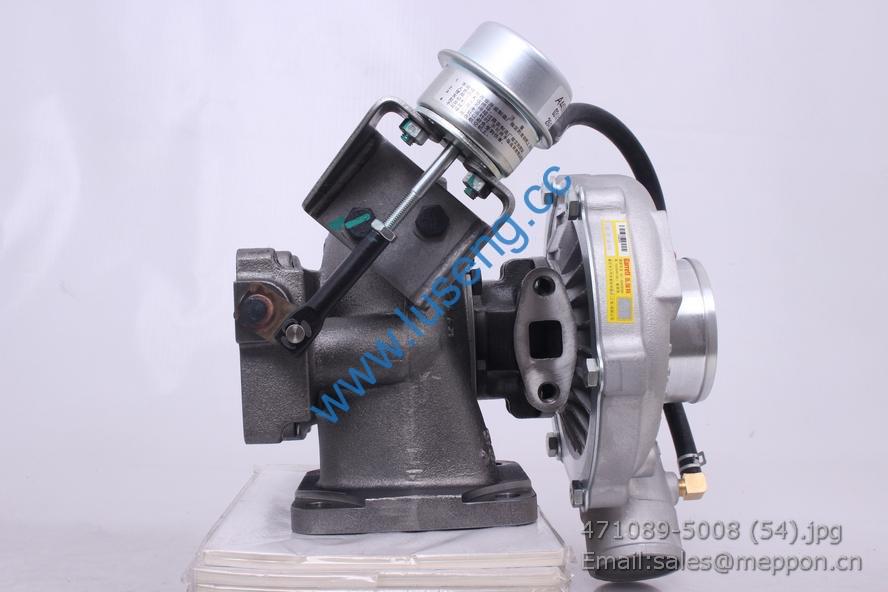

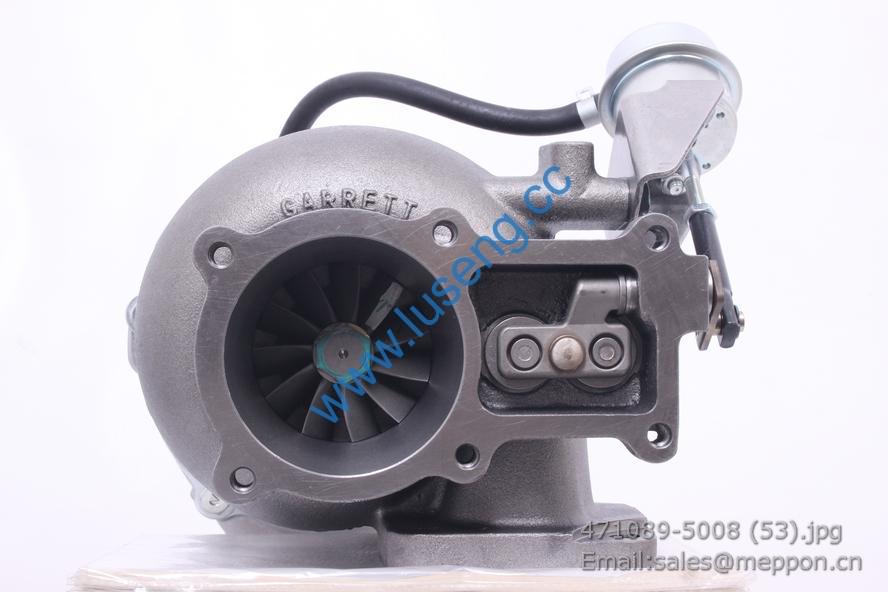

D38-000-41 SHANGCHAI turbocharger 471089-5008S

1 383-1002082 尼龙管 Nylon pipe 1
2 Q150B0820 螺栓 M8X20 Bolt M6X20 2
3 Q40108 垫圈 8 Washer 8 2 易损件 EWP
4 Q40308 垫圈 8 Washer 8 2 易损件 EWP
5 Q340B08 螺母 M8 Nut M8 2
6 D0305-1009046 油标尺软套管支架 Oil dipstick teleflex bracket 1
7 151-1002082 管夹 Pipe clip 1
8 D0305-1009050 油标尺焊接件 Oil dipstick welded part 1
9 Q67616 环箍 Loop hoop 2
10 F30SA-1028170 油标尺座组件 Oil dipstick seat groupware 1

1 1D30-1104110A 回油软管总成 Fuel return hose assembly 1 易损件 EWP
2 A3000-1111048 护套 Sheath 1 易损件 EWP
3 151-1002082 管夹 Pipe clamp 1
4 Q40108 垫圈 8 Washer8 1 易损件 EWP
5 Q40308 垫圈 8 Washer8 1 易损件 EWP
6 Q150B0816 螺栓 M8X16 Bolt M8X16 1
7 D0800-1104040 高压油管组件 High pressure oil pipe parts 1
8 D08SA-1104300
输油泵至柴滤器油管部
件
Fuel pipe from fuel delivery pump to fuel
filter
1
9 D08SA-1104400
柴滤器至喷油泵油管部
件
Fuel pipe from fuel filter to fuel
injection pump
1
10 D0702-1104900 进油管部件 Fuel inlet pipe assembly 1
11 G0228-1104206 密封圈 Seal ring 1
12 362-1104051 进油管接头 Fuel inlet pipe joint 1

1 Q340B08 螺母 M8 Nut M8 2
2 Q40308 垫圈 8 Washer 2 易损件 EWP
3 6105Q-3509013 垫圈 Washer 2
4 Q1200830 螺柱 M8X30 Stud M8X30 2
5 231-1105010 柴油滤清器 Fuel filter 1 易损件 EWP
6 B7604-1105200 旋装沉淀器 Rotational precipitator 1
7 B7604-1105001B 柴油滤清器座 Fuel filter seat 1
