Description

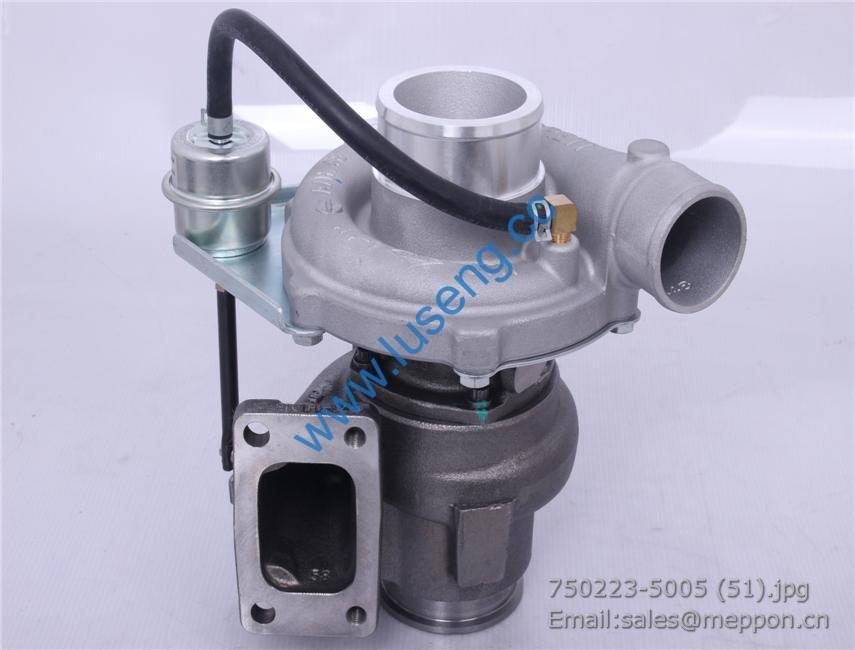

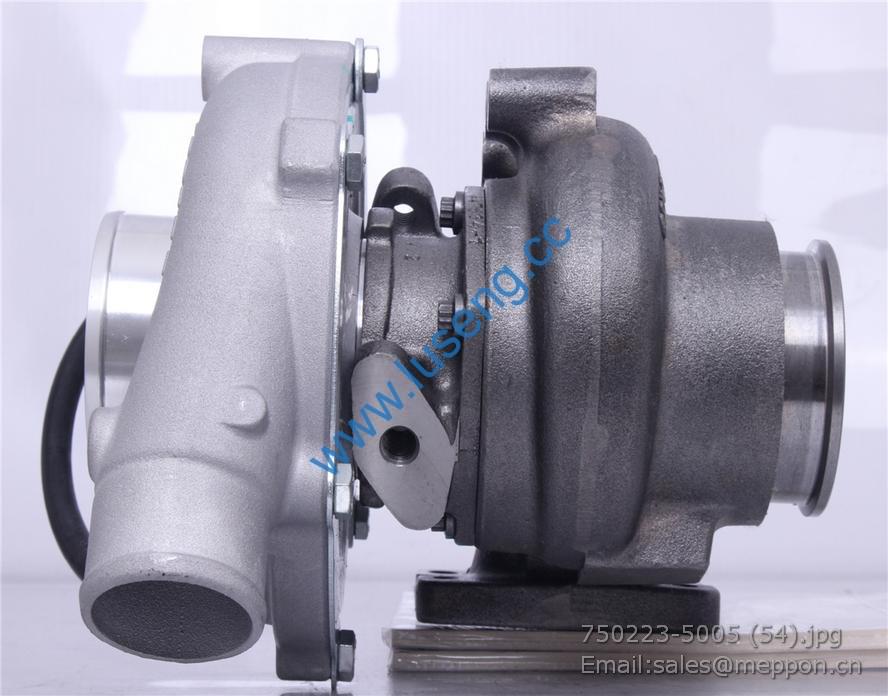

D38-000-145 SHANGHAI DIESEL turbocharger 750223-5005S
1 E2100-1111350A 机油进油管组件 Fuel inlet pipe parts
2 Q/YC149-10 复合式密封垫圈10 Seal ring10 4
3 150-3509023 进油螺栓 Oil inlet bolt 2
4 530-1002034 齿轮室盖板垫片 Gear housing cover plate washer 1
5 E2100-1002203A 齿轮室盖板 Gear chamber cover plate 1
6 Q150B0818TF2 螺栓M8×18 Bolt M8×18 4
7 E2100-1002202 齿轮室垫片 Gear Housing washer 1
8 530-1002028 定位销 Locating pin 1
9 B30-1002039 空压机盖板垫片 Air compressor cover plate washer 1
10 Q18410100 螺栓M10X100 Bolt M10X100 5
11 Q1841085 螺栓M10X85 Bolt M10X85 2
12 B30-1002038 空压机齿轮盖 Air compressor gear cover 1
13 Q1841016 螺栓M10X16 Bolt M10X16 2
14 E2100-3823178 曲轴转速传感器支架 Crankshaft speed transducer bracket 1
15 Q150B0820 螺栓M8X20 Bolt M8X20 2
16 Q40308 垫圈8 Lock Washer 8 2
17 Q40108 垫圈8 Lock Washer 8 2
18 Q1840880 螺栓M8X80 Bolt M8X80 2
19 G0100-1002401 张紧皮带轮 Tension pulley 1
A3200-1002045A 张紧轮总成 Tensioner assembly 1
20 Q150B1080TF2 螺栓M10X80 Bolt M10X80 1
21 Q40310 垫圈10 Washer10 1
22 Q40110 垫圈10 Washer10 1
23 Q1841030 螺栓M10X30 Bolt M10X30 7
24 Q18410110 螺栓M10X110 Bolt M10X110 1
25 E2100-1002251A 喷油泵齿轮盖 Injection pump gear cover 1
26 YC209-065090FR 油封65X90 Sealing 65×90 1
YC209-C065090PR 油封65X90 Sealing 65×90 1
27 Q1840860 螺栓M8X60 Bolt M8X60 6
28 B30-1002036 喷油泵齿轮盖垫片 Fuel injection pump gear cover gasket 1
29 E2100-1002201A 齿轮室 Gear housing 1
1 Q1840825 螺栓M8X25 Bolt M8X25 14
2 G2100-1003240 气缸盖罩组件 Cylinder head cover parts 1
3 G2000-1003201A 气缸盖罩垫片 Cylinder head cover gasket 1
4 G2000-1003006 吊耳 Lifter 1
5 Q150B1030 螺栓M10X30 Bolt M10X30 2
6 Q40110 垫圈10 Washer10 4
7 Q40310 垫圈10 Washer10 4
8 E2100-1003170A 气缸盖加工组件 Cylinder processed parts 1
9 G2000-1003001C 气缸盖垫片 Cylinder head washer 1
10 G2000-1003103 排气门 Exhaust Valve 8
11 G2000-1003111 进气门 Intake Valve 8
12 150-1003055 垫板 Washer 1
13 Q150B1035TF2 螺栓M10X35 Bolt M10X35 2
14 G25QA-1003122A 前吊耳 Front lifter 1
15 L3000-1007022 气门外弹簧 Valve outter spring 16
16 G2000-1003109 气门锁夹 valve key 32
17 G2000-1003116 气门弹簧上座 Valve spring seat(upper) 16
18 L3000-1007016 气门杆油封 Valve stem seal 16
19 150-1003040F 加机油口盖组件 Oil filler cap assembly 1
20 L3000-1007023 气门内弹簧 Valve inner spring 8
21 330-1003014B 气缸盖短螺栓 Cylinder head bolt (short) 18
