Description

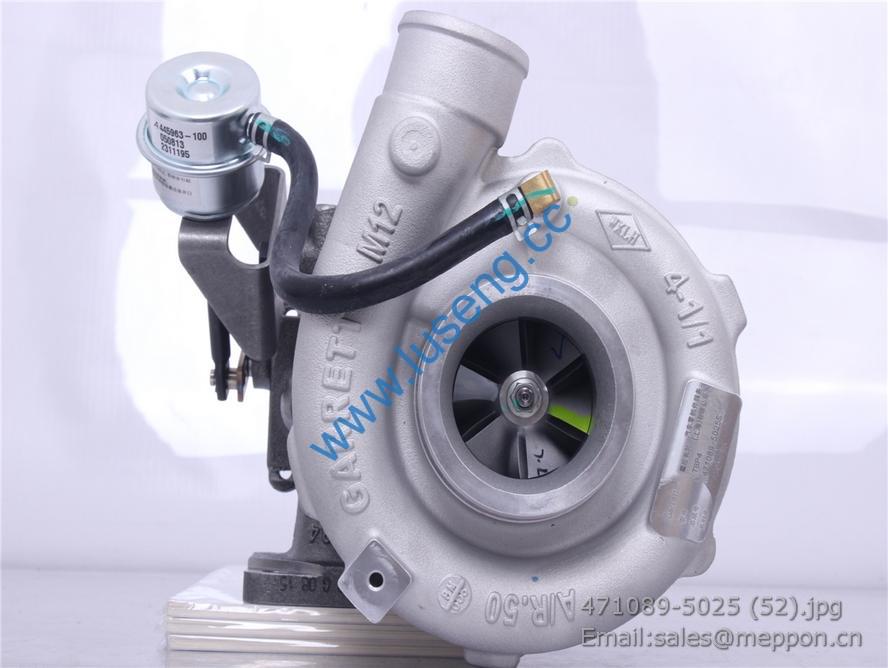

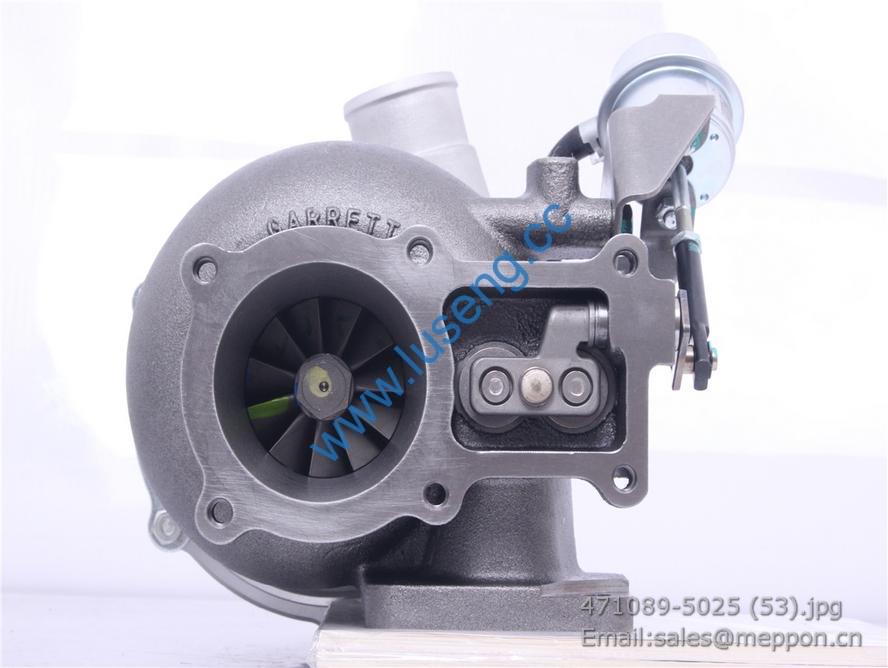

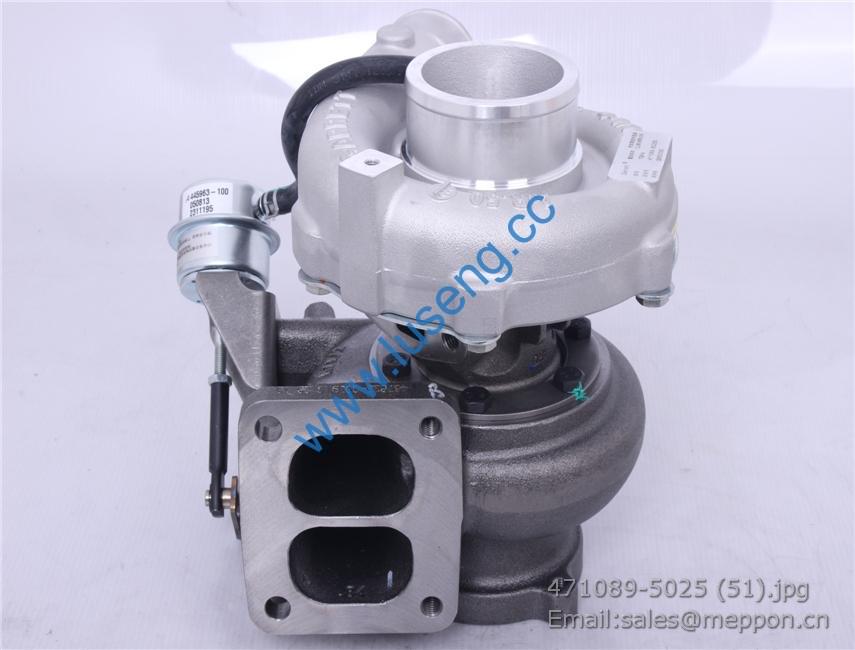

D38-000-14 SHANGHAI DIESEL turbocharger 471089-5025S

1 6105Q-1007073 接头螺栓 Connector bolt 2
2 Q/YC149-8 复合式密封垫圈 8 Compound seal washer 8 4 易损件 EWP
3 D30-3509004A 空压机进油管 Air compressor oil inlet pipe 1
4 E12N1-3509008 出气接头 Air release connector 1
5 Q/YC901-3C22 垫圈 22 Washer 22 2 易损件 EWP
6 D12F5-3509100B 空气压缩机 Air compressor 1
7 D12F5-3509010 进气管接头 Intake pipe connector 1
8 231-3509024A 空压机进水管 Air compressor water inlet pipe 1
9 6QA6-1307017 管接螺栓 pipe joint bolt 4
10 Q/YC149-14 复合式密封垫圈 14 Compound seal ring 14 8 易损件 EWP
11 Q151B1030 螺栓 M10X1X30 Bolt M10X1X30 1
12 Q40310 垫圈 10 Washer 10 5 易损件 EWP
13 Q40110 垫圈 10 Washer 10 5 易损件 EWP
14 D0305-3509041 套筒 Sleeve barrel 1
15 YC208-B11200F O 形圈 2.65X112 O-ring 2.65X112 1 易损件 EWP
16 D30-3509011 空压机齿轮 Air compressor gear 1
17 G3220-3701061 垫块 Cushion block 1
18 Q150B1085TF2 螺栓 M10X85 Bolt M10X85 1
19 D0305-3509042 管夹 Pipe clip 2
20 D0305-3509033 胶套 Rubber sleeve 1
21 Q150B1040 螺栓 M10X40 Bolt M10X40 3
22 231-3509028 空压机回水管 Air compressor water return pipe 1

1 D7019-3701100 发电机 Alternator 1
2 D0305-3701030 调节板 Adjusting plate 1
3 Q40110 垫圈 10 Washer 10 2
4 Q40310 垫圈 10 Washer 10 3
5 Q150B1050 螺栓 M10×50 Bolt M10X50 1
6 Q340B10 螺母 M10 Nut M10 2
7 530-1009002 垫圈 Washer 1
8 Q150B1040 螺栓 M10×40 Bolt M10X40 1
9 Q150B10130 螺栓 M10×130 Bolt M10X130 1
