Description

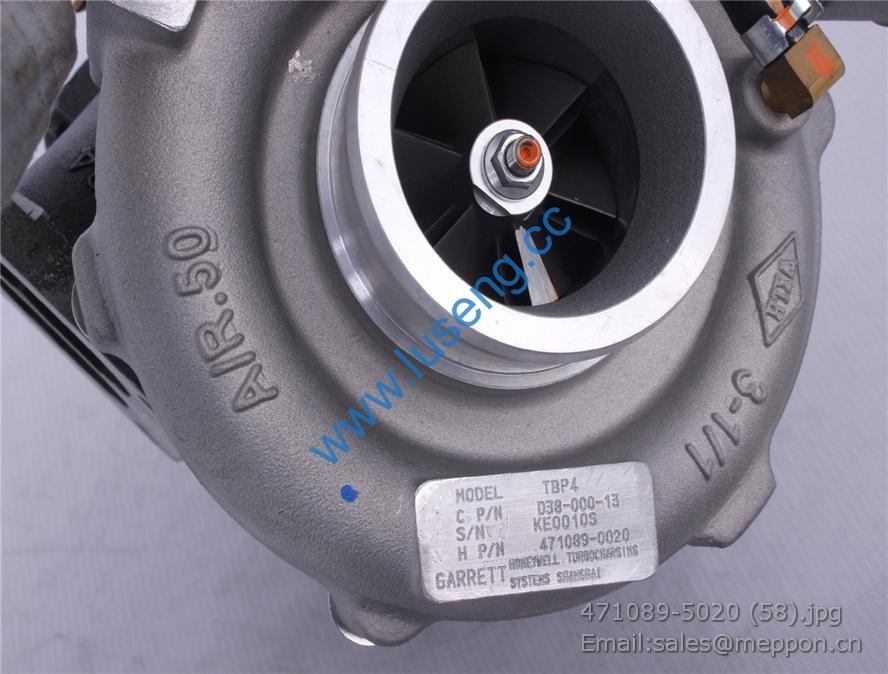

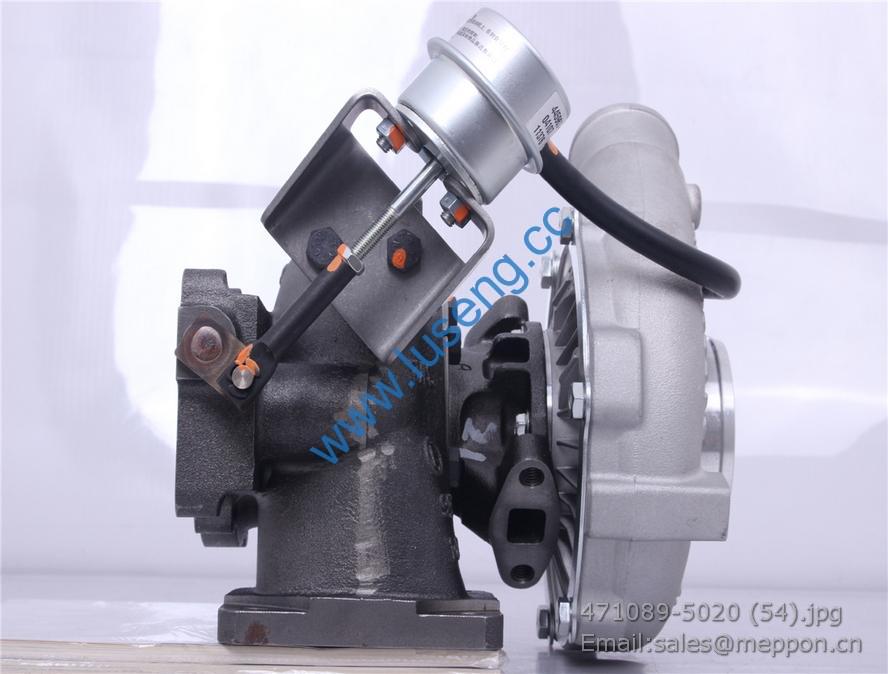

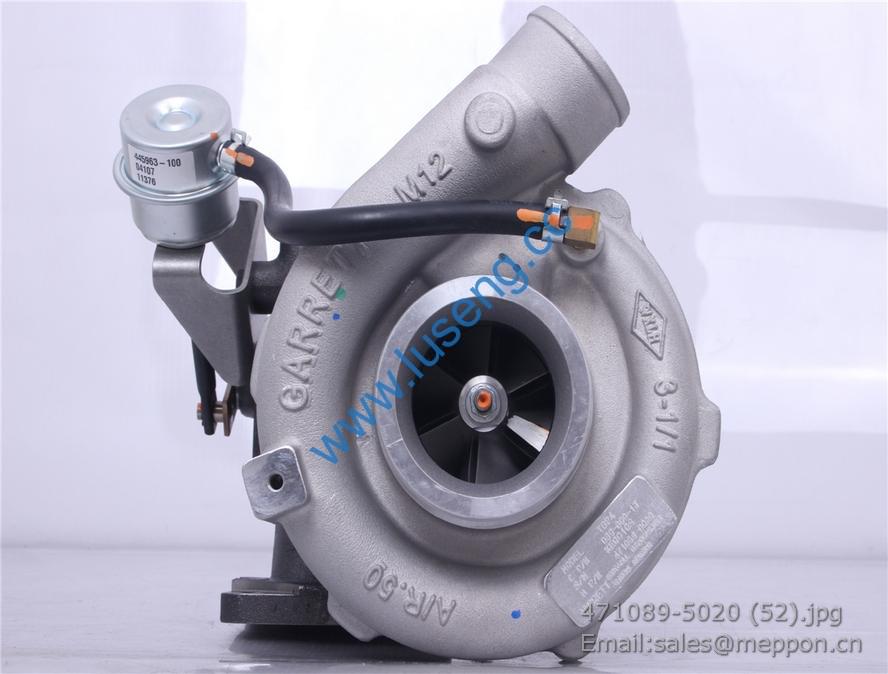

D38-000-13 shangchai turbocharger 471089-5020S

1 GB/T276-6205-2RS 深沟球轴承 Single row radial ball bearing 1
2 YC209-100125FL 油封 100×125 Oil seal 100×125 1
3 6105Q-1600011 扁销 Tabular pin 1
4 YC24-B1224 圆柱销 12×24 Straight pin 12×24 1
5 D0701-1600302C 离合器壳 Clutch case 1
6 Q1841445TF2 螺栓 M14×45 Bolt M14×45 2
7 Q1840612 螺栓 M6×12 Bolt M6×12 4
8 B3000-1600021 盖板 Cover plate 1
9 Q1841250TF2 螺栓 M12×50 Bolt M12X50 6
10 D07D1-1005360A 飞轮及齿圈组件 Flywheel and gear ring subassembly 1
11 330-1005044 飞轮螺栓 Flywheel bolt 7
12 E12FA-1600740 离合器从动盘部件 Clutch driven plate subassembly 1
13 E12D1-1600750 离合器盖及压盘组件 Clutch pressure plate subassembly 1
14 362-1600043 离合器分离叉臂 Clutch release fork arm 1
15 Q1841035 螺栓 M10×35 Bolt M10×35 1
16 Q5500625 键 6×25 Key 6×25 1
17 Q150B1050TF2 螺栓 M10×50 Bolt M10×50 8
18 Q40310 垫圈 10 Washer 10 8
19 D08FG-1600042 离合器分离叉 Clutch separate fork 1
20 Q40308 垫圈 8 Lock Washer 8 4
21 Q40108 垫圈 08 Washer 08 4
22 Q150B0816 螺栓 M8×16 Bolt M8×16 4
23 D32-1600017 离合器壳底盖 Clutch housing end cover 1
24 Q1841450TF2 螺栓 M14×50 Bolt 2

1 YC208-B07500F O 形圈 2.65X75 O-ring 2.65X75 1
2 D30-1002038 动力转向泵盖板 Steering pump covering plate 1
3 Q40110 垫圈 10 Washer10 2 易损件 EWP
4 Q40310 垫圈 10 Washer10 2 易损件 EWP
5 Q150B1025 螺栓 M10X25 Bolt M10X25 2
