Description

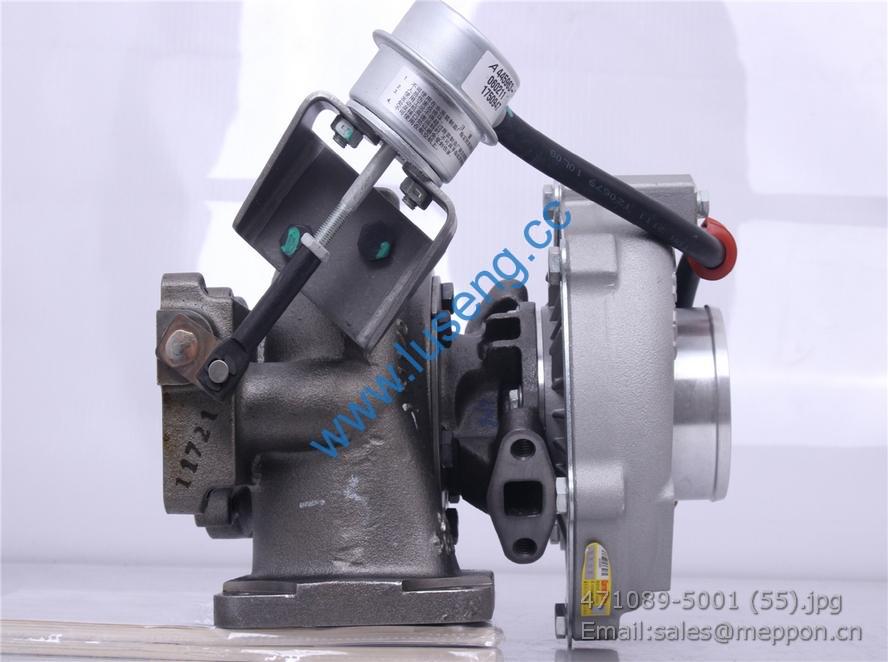

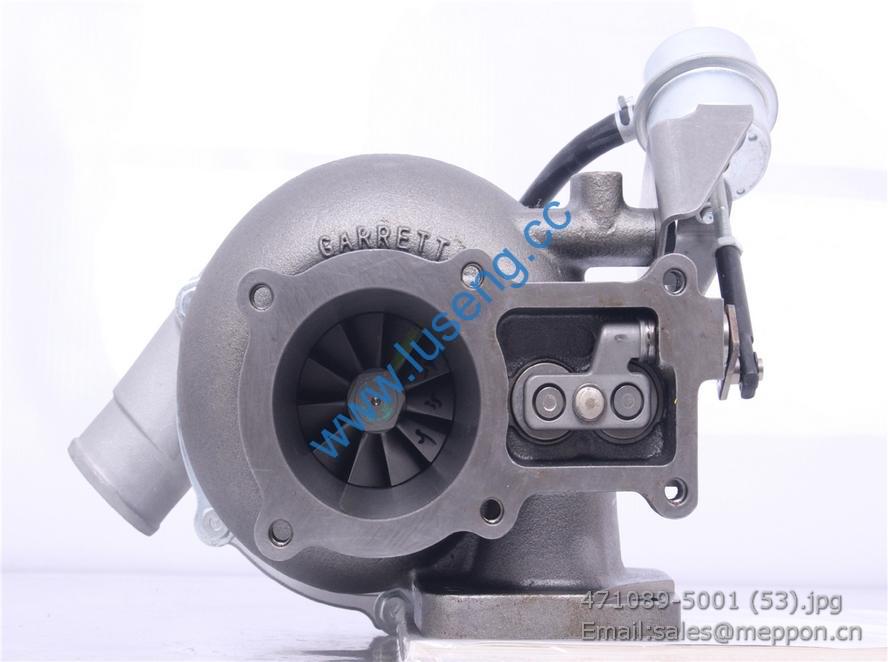

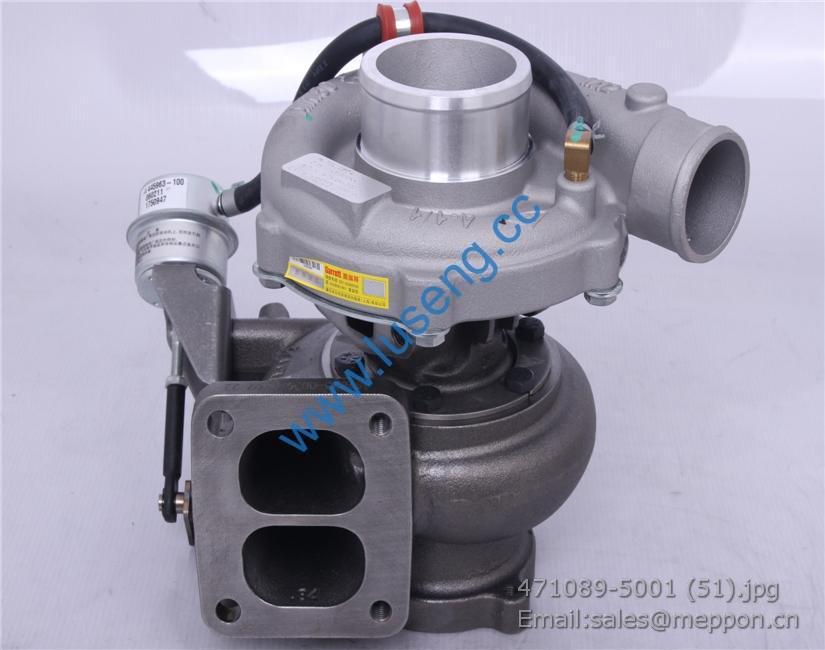

D38-000-10 SHANGHAI DIESEL turbocharger 471089-5001S Bus

1 Q/YC1820820 螺栓 M8X20 Bolt M8X20 22
2 Q40308 垫圈 8 Lock Washer 8 22
3 6105Q-3509013 垫圈 Washer 15
4 D0305-1009040C 油底壳组件 Oil sump parts 1
5 6105Q-1009030 放油塞总成 Oil drain plug Assembly 1
6 Q/YC149-27 复合式密封垫圈 27 Compound seal washer 27 1
7 D30-1009011C 油底壳垫片 Oil sump gasket 1
8 D30-1009102A 垫圈 Washer 7

1 6105QA-1010131A 滤网托架 Screen 1
2 475D-1010132 滤网 Screen bracket 2 易损件 EWP
6105QA-1010130B 滤网总成 Filter screen assembly 1 包括 including 1、2 项
3 D30-1010010A 吸油管焊接件 Oil suction pipe welded unit 1
4 Q150B0820TF2 螺栓 M8×20 Bolt M8×20 1
5 Q40308 垫圈 8 Washer 8 3 易损件 EWP
6 Q150B0850TF2 螺栓 M8×50 Bolt M8×50 2
7 D30-1010050A 垫片组合件 Washer combination unit 1 易损件 EWP

1 Q/YC207-0828 螺栓 M8X28 Bolt M8X28 2
2 Q/YC207-0840 螺栓 M8X40 Bolt M8X40 3
3 D30-1011100 机油泵部件 Oil pump 1
4 D30-1011041B 垫片 Gasket plate 1 易损件 EWP
