Description

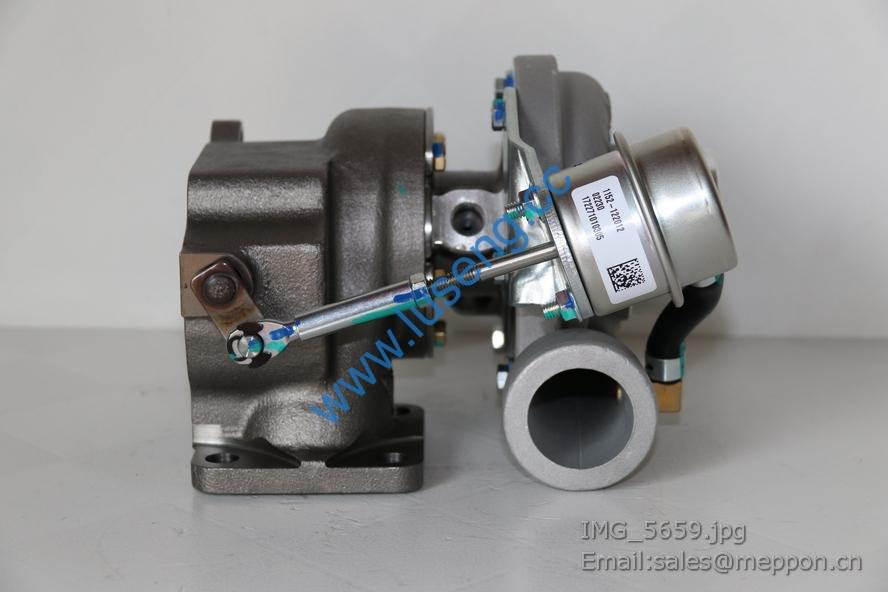

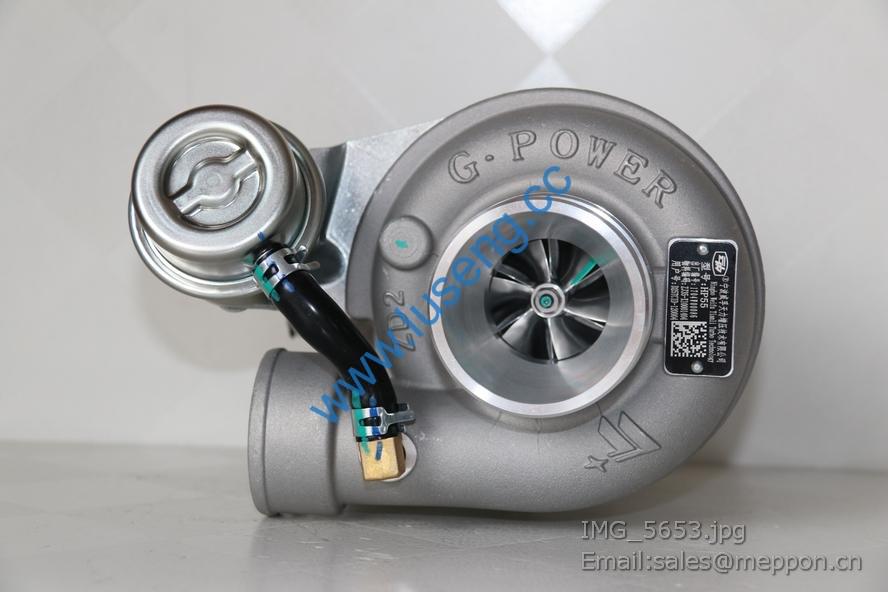

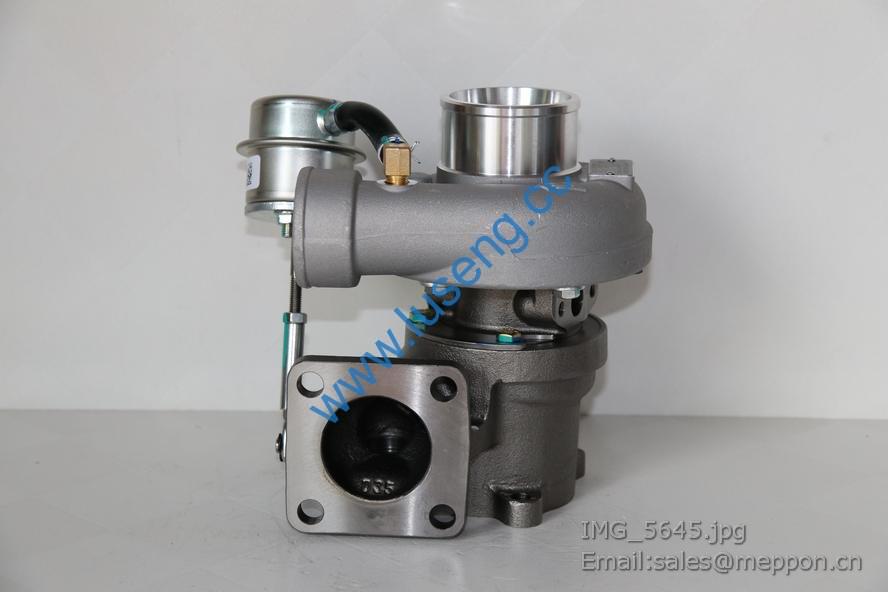

D25TCI 1152800012-1 ZJ35-X10001404 yunnei turbocharger

1 Y10005823 D45TCIF-050002 机体机加工部件 1
2 Y10003472 YNF45-050001 气缸套 4
3 X16059 D19TCI-05003-1 定位套 2
4 Y10005751 D40TCIF-050004 后齿轮室 1
5 HB03584 GB-T16674.1_M8X50 螺栓 4
6 Y052 YNF40-05202-1 定位销套 2
7 HB03517 GB-T16674.1_M10X40 螺栓 4
8 HB03639 GB-T16674.1_M12X85-10.9 螺栓 7
9 HB03638 GB-T16674.1_M12X110-10.9 螺栓 1
10 HB03475 GB-T16674.1_M10X35 螺栓 2
11 HB03516 GB-T16674 1 M10X30 螺栓 7
3.机体部件
图 机体部件
11 HB03516 GB T16674.1_M10X30 螺栓 7
12 HB03640 GB-T16674.1_M10X75-10.9 螺栓 2
13 Y10009977 YNF40-050047 飞轮壳(2#) 1
14 HB03515 GB-T16674.1_M10X50 螺栓 3
15 HB0904 GB-T16674.1_M10X25 螺栓 2
16 HB03589 GB-T16674.1_M12X30 螺栓 1
17 Y10000252 YNF40-05106-1 机体加强板 1
18 X16058 D19TCI-05101-1 定位套 2

1 Y10005759 D40TCIF-060007 气门室罩盖总成 1
2 Y069 YNF40-06202-1 高压油管接头油封 4
3 HB03098 GB-T16674.1_M6X16 螺栓 11
4 Y064 YNF40-06002-1 气缸盖螺栓 18
5 Y10005921 D40TCIF-060009 前吊耳 1
6 HB0904 GB-T16674.1_M10X25 螺栓 4
7 Y10003446 YNF45-060001 气缸盖垫片 1
8 X1906136 D19TCI5-06300-1 加油口盖总成 1
9 Y10005757 D40TCIF-060005 EGR回水钢管 1
10 Y067 YNF40-06205-1 气门室罩盖密封圈 1
11 Y10008915 D40TCIF-060011 后吊耳 1
4.气缸盖部件
图 气缸盖部件一
11 Y10008915 D40TCIF 060011 后吊耳 1
12 Y10005753 D40TCIF-060001 气缸盖机加工部件 1
