Description

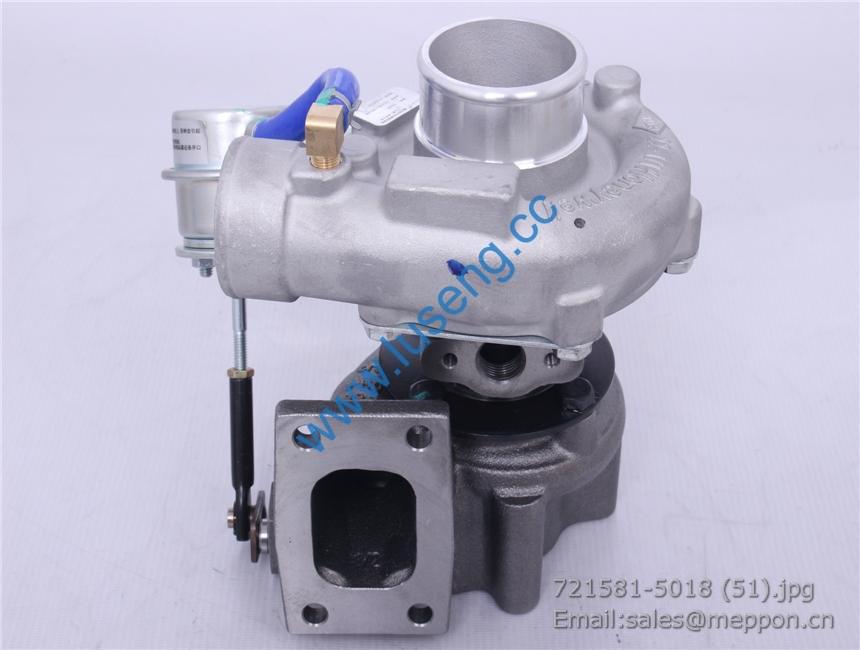

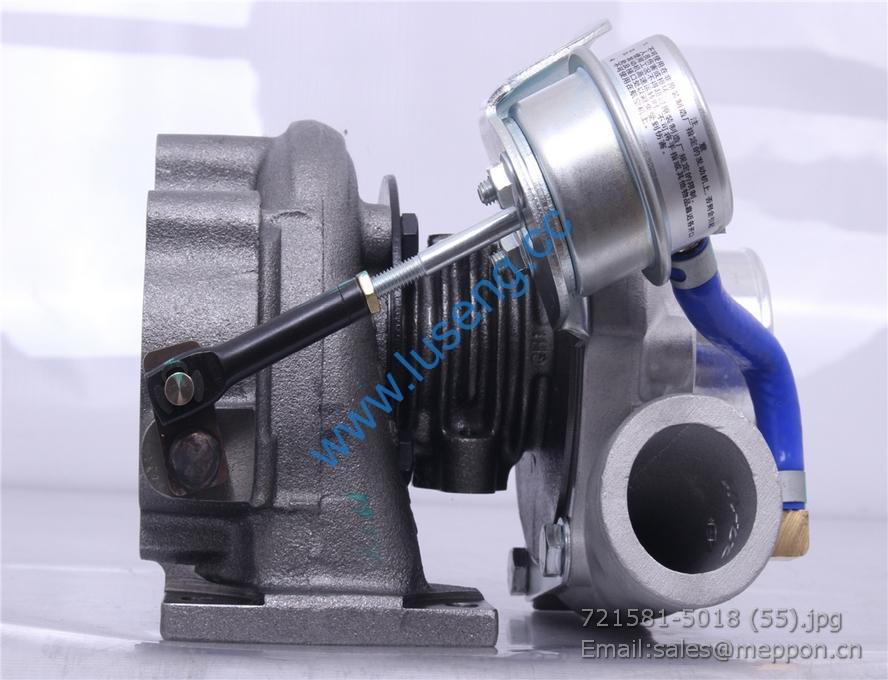

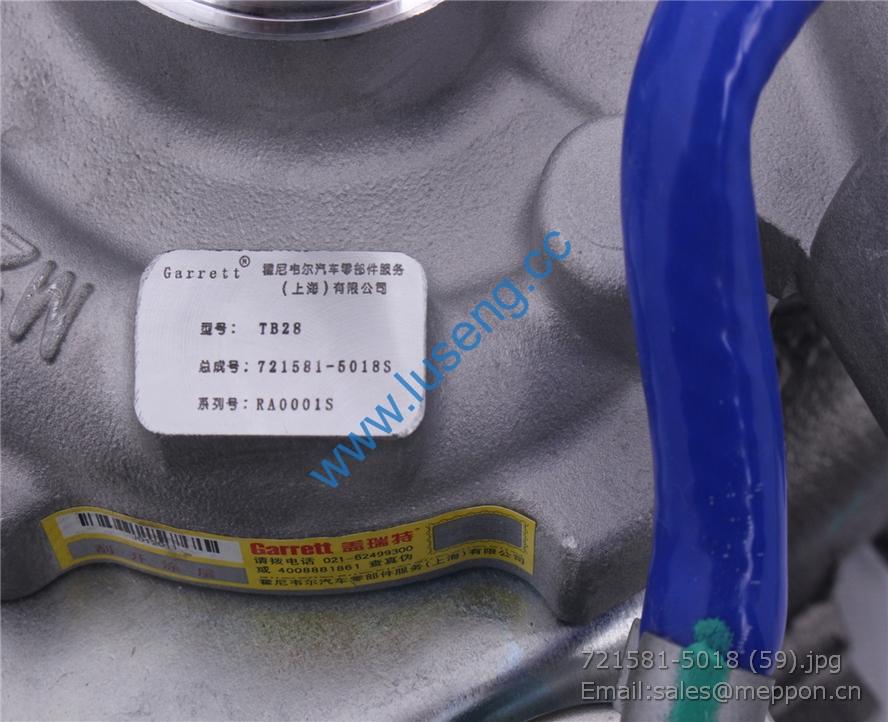

D21FA-1118100-135 yuchai turbocharger 721581-5018S

1 HA01243 4100QB-01.06D.01-009 加强板Ⅱ Reinforced plate II 1
2 HA01244 4100QB-01.06D.01-010 加强板Ⅲ Reinforced plate III 1
3 GB/T 5783 螺栓 Bolt M8×20 12
4 GB/T 6170 螺母 Nut M8 17
5 GB 93 垫圈 Sping washer 8 29
6 GB/T 97.1 垫圈 Washer 8 29
7 GB 898 螺柱 Bolt AM8×20 17
8 HA0140 4100QB-1A-01.06-001 放油螺塞 Oil drain plug 1
9 JB 982 A 型组合垫圈 Combination washer 18 1
10 HA01242 4100QB-01.06D.01-008 加强板Ⅰ Reinforced plate I 2
11 HA011118 YN33CRD-1A-01.06.01 油底壳焊合件 Welded oil sump seaming 1
12 HA0189 4100QB-01-054A 油底壳垫片 Oil sump washer 1
13 HA01494 4100QB-01.06.03A-FT 油尺套管焊接件 Welded oil dipstick sleeve 1
14 GB/T 5783 螺栓 Bolt M6×16 1
15 HA01495 4100QBZL-01.06-004-FT 支承板 Support board 1
16 GB/T97.1 垫圈 Washer 6 1
17 GB 93 垫圈 Sping washer 6 1
18 GB/T6170 螺母 Nut M6 1
19 HA010121 4100QBZL-01.06.02B 油标尺合件 Oil dipstick assy 1

1 GB/T 5782 螺栓 Bolt M10×50-10.9 4
2 GB 93 垫圈 Sping washer 10 4
3 GB/T 849 球面垫圈 Washer 10 4
4 HA111040 YN33CR-11.06E 喷油器回油管总成 Oil return pipe assy, injector 1
HA110190 YN33CRD-11.07-ZQ 发动机回油接管总成 Oil return pipe assy,
5 HA11644 YN38CR-11.01-005 泵/轨高压油管Ⅰ Pump-rail, high-pressure fuel pipe 1
6 HA11595 YN33CR-11-002A 喷油器压板 Injector pressure plate 4
7 HA11608 YN33CR-11.01.01-001 高压油管夹下胶垫 Rubber pad, high-pressure fuel pipe 1
8 HA11645 YN38CR-11.01-006 泵/轨高压油管Ⅱ Pump,rail, high-pressure fuel pipe 1
9 HA11003 YN33CRD-11.10 高压油泵(CB18） High-pressure fuel pump 1
10 HA010392 YN33CR-01-033D 喷油泵齿轮 Fuel injection pump gear

1
11 HA0240 YN33CR-02-007E 凸轮相位传感器信号盘 Signal plate-camshaft phase sensor 1
12 GB/T 5783 螺栓 Bolt M6×16 6
13 GB 93 垫圈 Sping washer 6 6
14 GB/T 97.1 垫圈 Washer 6 6
15 GB 898 螺柱 Bolt AM8×30-8.8 3
16 GB/T 97.1 垫圈 Washer 8 3
17 GB 93 垫圈 Sping washer 8 3
18 GB/T 6170 螺母 Nut 8 3
19 HA11609 YN33CR-11.01.01-002 高压油管夹上胶垫 Rubber pad, high-pressure fuel pipe 1
20 HA11628 YN33CR-11.01.01-003-Ⅰ 高压油管夹板 Plywood, high-pressure fuel pipe 1
21 GB 93 垫圈 Sping washer 6 2
22 GB/T 5783 螺栓 Bolt M6×20 2
